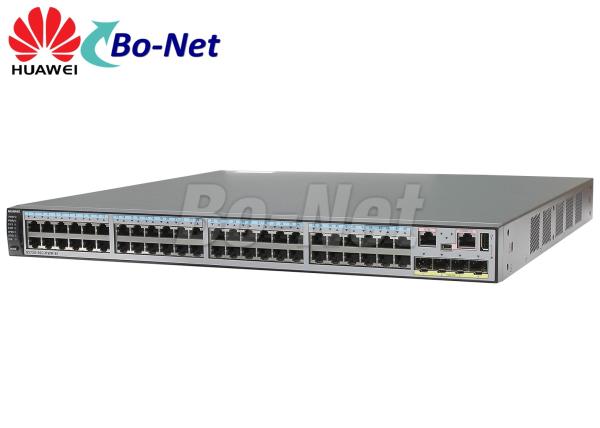

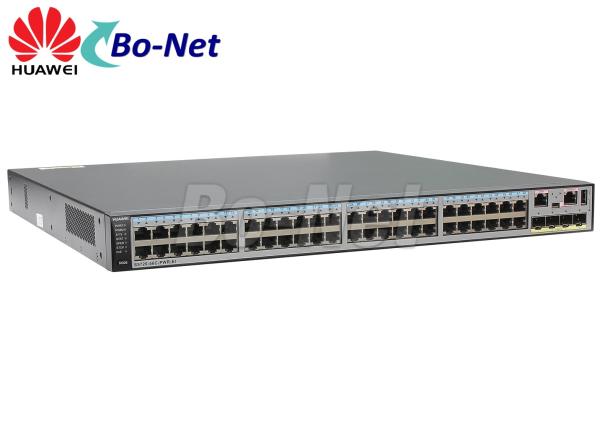

S5720-56C-PWR-EI-AC 48 Port 10 GE Cisco POE Switch
S5720-56C-PWR-EI-AC 48 Port 10 GE Cisco POE Switch
S5720-56C-PWR-EI-AC 48 Port 10 GE Cisco POE Switch
S5720-56C-PWR-EI-AC 48 Port 10 GE Cisco POE Switch
S5720-56C-PWR-EI-AC 48 Port 10 GE Cisco POE Switch
S5720-56C-PWR-EI-AC 48 Port 10 GE Cisco POE Switch
S5720-56C-PWR-EI-AC 48 Port 10 GE Cisco POE Switch
S5720-56C-PWR-EI-AC 48 Port 10 GE Cisco POE Switch
Specifications
Brand Name :
huawei
Model Number :
S5720-56C-PWR-EI-AC
Place of Origin :
USA
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 pcs per week
Delivery Time :
3~5 working days
Packaging Details :
Original packing
Brand :
huawei
Product name :
S5720-56C-PWR-EI-AC
Device type :
48 Port POE Switch
Ports :
48 x Ethernet 10/100/1,000 PoE+ ports
Uplink port :
4× 10 Gig SFP+
Switching Capacity :
598 Gbit/s
Product type :
Huawei poe Switch
Power Supply :
500W
Description

Huawei S5720 Switch S5720-56C-PWR-EI-AC 48 Port POE Switch 10 GE Uplink Port

Model: 5720-56C-PWR-EI-AC
Next-generation enhanced gigabit Ethernet switch
1. 48*GE RJ45, 4*10GE SFP+
2. PoE+, dual pluggable power supplies, one 500 W AC power supply equipped by default, one more 500 W AC or 650 W DC power supply supported
3. One extended slot for 10GE optical/electrical interface card or stack card

S5720-EI Series Switches

Huawei S5720-EI series provide flexible all-gigabit access and enhanced 10 GE uplink port scalability. They are widely used as access/aggregation switches in enterprise campus networks or gigabit access switches in data centers.

S5720-56C-PWR-EI-AC 48 Port 10 GE Cisco POE Switch

Product Model S5720-P-EI S5720-X-EI S5720-PC-EI S5720-C-EI
Switching Capacity 598 Gbit/s 598 Gbit/s 598 Gbit/s 598 Gbit/s
Forwarding Performance S5720-32P-EI-AC: 48 Mpps
S5720-52P-EI-AC: 78 Mpps
S5720-32X-EI-AC: 102 Mpps
S5720-32X-EI-24S-AC: 102 Mpps
S5720-32X-EI-24S-DC: 102 Mpps
S5720-50X-EI-AC: 129 Mpps
S5720-50X-EI-DC: 129 Mpps
S5720-50X-EI-46S-AC: 129 Mpps
S5720-50X-EI-46S-DC: 129 Mpps
S5720-52X-EI-AC: 132 Mpps
S5720-36PC-EI-AC: 78 Mpps
S5720-56PC-EI-AC: 108 Mpps
S5720-36C-EI-28S-AC: 132 Mpps
S5720-36C-EI-28S-DC: 132 Mpps
S5720-36C-EI-AC: 132 Mpps
S5720-36C-PWR-EI-AC: 132 Mpps
S5720-56C-EI-48S-AC: 162 Mpps
S5720-56C-EI-48S-DC: 162 Mpps
S5720-56C-EI-AC: 162 Mpps
S5720-56C-EI-DC: 162 Mpps
S5720-56C-PWR-EI-AC: 162 Mpps
S5720-56C-PWR-EI-DC: 162 Mpps
S5720-56C-PWR-EI-AC1: 162 Mpps
Extended Slots N/A One expansion slot supporting the following functions:
  • 2-port 10 GE SFP+ optical interface card
  • 2-port QSFP+ dedicated stack interface card
MAC Address Table 64k MAC address entries
MAC address learning and aging
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
VLAN Features 4,094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on 4,094 VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
VLAN-based transparent transmission of protocol packets MAC addresses, protocols, IP subnets, policies, and ports
VLAN mapping
IP Routing Static routes, RIPv1/v2, and RIPng
OSPF, OSPFv3, IS-IS, and IS-ISv6
BGP, BGP4+, ECMP, and routing policy
Interoperability VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP)
