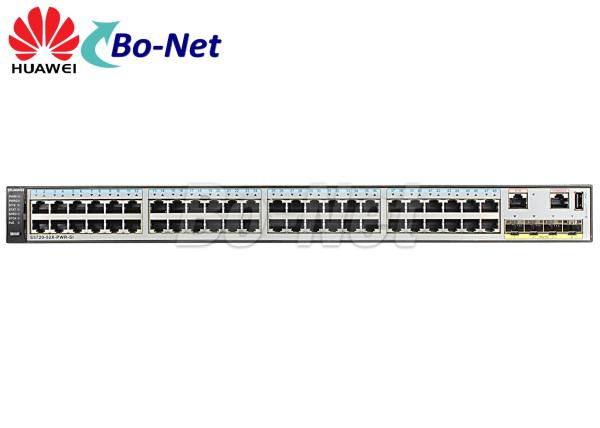

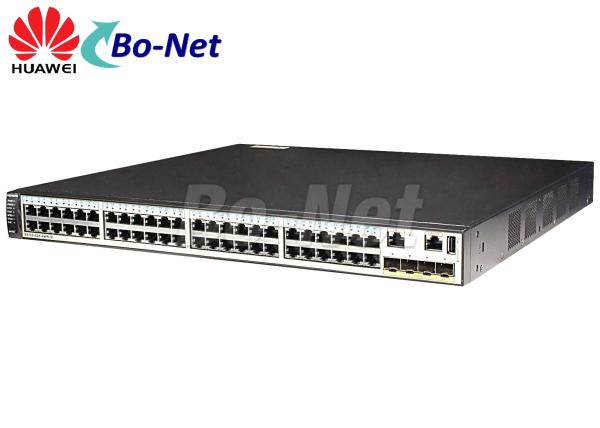

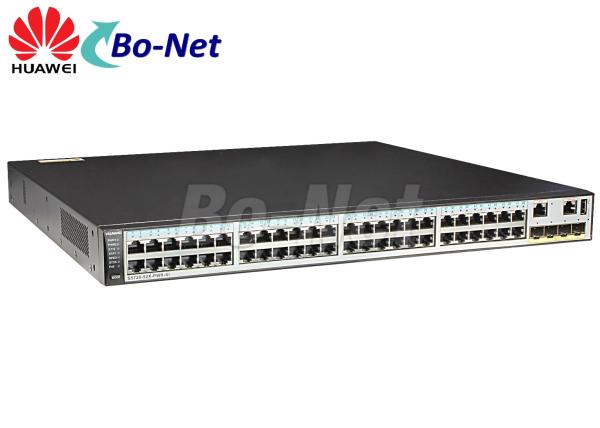

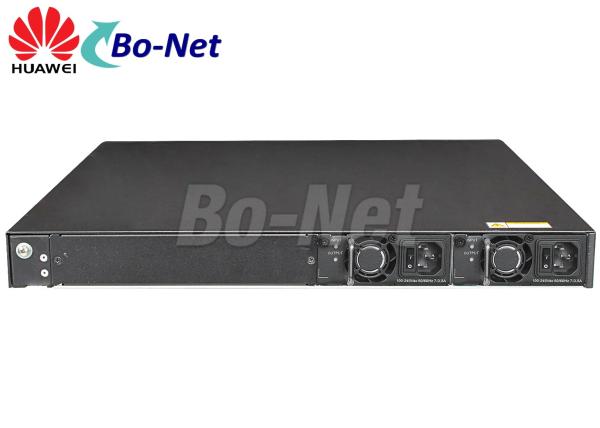

Huawei S5720-52X-PWR-SI-AC S5720 POE 4x 10G SFP+ Layer 3 Switch
Huawei S5720-52X-PWR-SI-AC S5720 POE 4x 10G SFP+ Layer 3 Switch
Huawei S5720-52X-PWR-SI-AC S5720 POE 4x 10G SFP+ Layer 3 Switch
Huawei S5720-52X-PWR-SI-AC S5720 POE 4x 10G SFP+ Layer 3 Switch
Huawei S5720-52X-PWR-SI-AC S5720 POE 4x 10G SFP+ Layer 3 Switch
Huawei S5720-52X-PWR-SI-AC S5720 POE 4x 10G SFP+ Layer 3 Switch
Huawei S5720-52X-PWR-SI-AC S5720 POE 4x 10G SFP+ Layer 3 Switch
Huawei S5720-52X-PWR-SI-AC S5720 POE 4x 10G SFP+ Layer 3 Switch
Specifications
Brand Name :
huawei
Model Number :
S5720-52X-PWR-SI-AC
Place of Origin :
USA
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 pcs per week
Delivery Time :
3~5 working days
Packaging Details :
Original packing
Brand :
huawei
Product name :
S5720-52X-PWR-SI-AC
Device type :
48 Port POE Switch
Ports :
48 x Ethernet 10/100/1,000 PoE+ ports
Uplink port :
4× 10 Gig SFP+
Switching Capacity :
598 Gbit/s
Product type :
Huawei S5720 Switch
Power Supply :
500W
Description

Huawei S5720-52X-PWR-SI-AC S5720 Layer 3 Switch 48 Ports Gigabit POE 4x 10G SFP+ Switch

Model: S5720-52X-PWR-SI-AC
Description: 48x10/100/1000Base-T Ethernet ports, 4 10 Gig SFP+ ports,PoE+,dual hot swappable AC/DC power supplies,one 500W AC power module is configured by default


Next-generation standard gigabit Ethernet switch
1. 48*GE RJ45, 4*10GE SFP+,10GE uplink ports for stack
2. PoE+,Dual hot swappable AC/DC power supplies, one 500W AC power module is configured by default
3. No extended slot
4. RIP, OSPF, BGP, and IS-IS

Product Code
S5720-52X-PWR-SI-AC
Downlink Ports
48 x Ethernet 10/100/1,000 PoE+ ports
Uplink Interfaces
4 × 10 Gig SFP+
Forwarding Performance
132 Mpps
Switching Capacity
336 Gbit/s
Stack
Supported
Stack Ports
GE electrical ports and 10GE SFP+ optical ports on the front panel
Memory (RAM)
512 MB
Flash
240 MB
Dimensions (W x D x H)
44.2 cm x 42 cm x 4.44 cm
Weight (Kg)
9.6 Kg
Product model S5720-28P-SI-AC S5720-28X-SI-AC(DC)
S5720-28X-PWR-SI-AC(DC)		 S5720-28X-SI-24S-AC(DC)
S5721-28X-SI-24S-AC		 S5720-52P-SI-AC
S5720S-52P-SI-AC		 S5720-52X-SI-AC(DC)
S5720-52X-PWR-SI-AC(DC)
S5720-52X-PWR-SI-ACF
S5720-52X-SI-48S
S5720S-52X-SI-AC		 S5720S-28P-SI-AC
S5720S-28X-SI-AC
Switching Capacity 336 Gbit/s
Forwarding Performance 42 Mpps 96 Mpps 96 Mpps 78 Mpps 132 Mpps P model:42 Mpps
X model:96 Mpps
Fixed Ports 24 x 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 Gig SFP 24 x 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+ 24 x Gig SFP 8 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+ 48 x 10/100/1,000 ports, 4 Gig SFP S5720-52X-SI-48S: 48 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+

Others: 48 x 10/100/1,000 ports, 4 x 10 Gig SFP+		 P model:
24 x 10/100/1,000 ports, 4 x Gig SFP

X model:
24 x 10/100/1,000 ports, 4 x 10 Gig SFP+
MAC Address Table 16K
IEEE 802.1d compliance
16k MAC address entries
MAC address learning and aging
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
VLAN Features 4094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
IP Routing Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
SVF Plug-and-play SVF client
Automatic software and patch loading to clients
One-click and automatic delivery of service configurations
Independent client running
Interoperability VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP)
