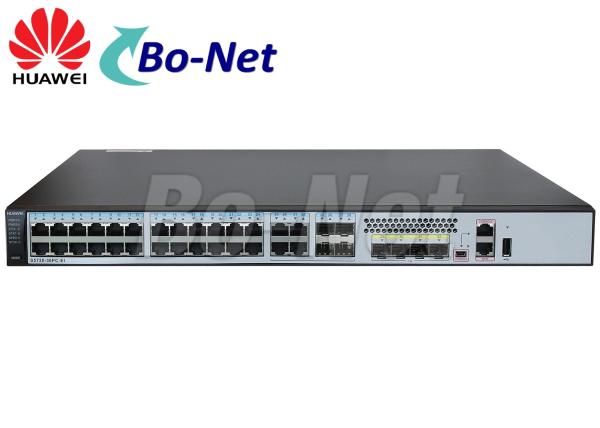

Huawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet Switch
Huawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet Switch
Huawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet Switch
Huawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet Switch
Huawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet Switch
Huawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet Switch
Specifications
Brand Name :
huawei
Model Number :
S5720-36PC-EI-AC
Place of Origin :
USA
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 pcs per week
Delivery Time :
3~5 working days
Packaging Details :
Original packing
Brand :
huawei
Product name :
S5720-36PC-EI-AC
Device type :
28 Port Gigabit Switch
Ports :
28 × Ethernet 10/100/1000 ports 4 of which are dual-purpose 10/100/1000 or SFP
Uplink port :
4 × Gig SFP+
Switching Capacity :
598 Gbit/s
Product type :
Huawei S5720 Switch
Description

Huawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet Switch

Product Code S5720-36PC-EI-AC
Downlink Ports

28 × Ethernet 10/100/1000 ports

4 of which are dual-purpose 10/100/1000 or SFP
Uplink Interfaces 4 × Gig SFP
Forwarding Performance 78 Mpps
Switching Capacity 598 Gbit/s
Stack Supported
Stack Ports

- Ports on the 2-port 10GE SFP+ rear interface card

- Ports on the 2-port 10GE RJ45 rear interface card

- Ports on the 2-port QSFP+ rear stack card
Memory (RAM) 2 GB
Flash 340 MB
Dimensions (W x D x H) 44.2 cm x 42 cm x 4.44 cm
Weight (Kg) 9.76 Kg

Product Model S5720-P-EI S5720-X-EI S5720-PC-EI S5720-C-EI
Switching Capacity 598 Gbit/s 598 Gbit/s 598 Gbit/s 598 Gbit/s
Forwarding Performance S5720-32P-EI-AC: 48 Mpps
S5720-52P-EI-AC: 78 Mpps
S5720-32X-EI-AC: 102 Mpps
S5720-32X-EI-24S-AC: 102 Mpps
S5720-32X-EI-24S-DC: 102 Mpps
S5720-50X-EI-AC: 129 Mpps
S5720-50X-EI-DC: 129 Mpps
S5720-50X-EI-46S-AC: 129 Mpps
S5720-50X-EI-46S-DC: 129 Mpps
S5720-52X-EI-AC: 132 Mpps
S5720-36PC-EI-AC: 78 Mpps
S5720-56PC-EI-AC: 108 Mpps
S5720-36C-EI-28S-AC: 132 Mpps
S5720-36C-EI-28S-DC: 132 Mpps
S5720-36C-EI-AC: 132 Mpps
S5720-36C-PWR-EI-AC: 132 Mpps
S5720-56C-EI-48S-AC: 162 Mpps
S5720-56C-EI-48S-DC: 162 Mpps
S5720-56C-EI-AC: 162 Mpps
S5720-56C-EI-DC: 162 Mpps
S5720-56C-PWR-EI-AC: 162 Mpps
S5720-56C-PWR-EI-DC: 162 Mpps
S5720-56C-PWR-EI-AC1: 162 Mpps
Extended Slots N/A One expansion slot supporting the following functions:
  • 2-port 10 GE SFP+ optical interface card
  • 2-port QSFP+ dedicated stack interface card
MAC Address Table 64k MAC address entries
MAC address learning and aging
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
VLAN Features 4,094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on 4,094 VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
VLAN-based transparent transmission of protocol packets MAC addresses, protocols, IP subnets, policies, and ports
VLAN mapping
IP Routing Static routes, RIPv1/v2, and RIPng
OSPF, OSPFv3, IS-IS, and IS-ISv6
BGP, BGP4+, ECMP, and routing policy
Interoperability VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP)

Huawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet SwitchHuawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet SwitchHuawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet SwitchHuawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet Switch

Huawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet SwitchHuawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet SwitchHuawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet SwitchHuawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet Switch

Huawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet Switch
