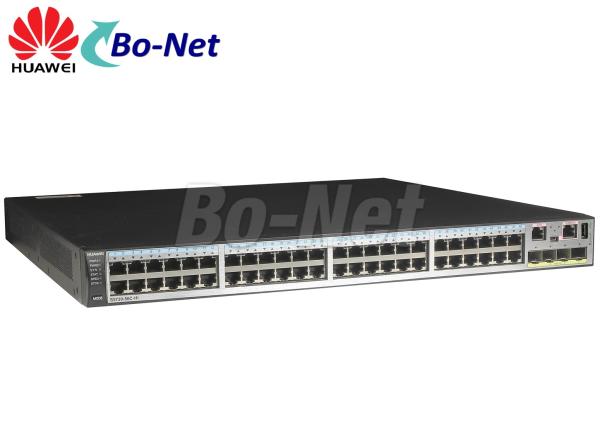

Huawei S5720-56C-HI-AC S5700 48 Ports 10GE SFP+ Ethernet Network Switch
Huawei S5720-56C-HI-AC S5700 48 Ports 10GE SFP+ Ethernet Network Switch
Huawei S5720-56C-HI-AC S5700 48 Ports 10GE SFP+ Ethernet Network Switch
Huawei S5720-56C-HI-AC S5700 48 Ports 10GE SFP+ Ethernet Network Switch
Huawei S5720-56C-HI-AC S5700 48 Ports 10GE SFP+ Ethernet Network Switch
Huawei S5720-56C-HI-AC S5700 48 Ports 10GE SFP+ Ethernet Network Switch
Huawei S5720-56C-HI-AC S5700 48 Ports 10GE SFP+ Ethernet Network Switch
Huawei S5720-56C-HI-AC S5700 48 Ports 10GE SFP+ Ethernet Network Switch
Specifications
Brand Name :
huawei
Model Number :
S5720-56C-HI-AC
Place of Origin :
USA
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 pcs per week
Delivery Time :
3~5 working days
Packaging Details :
Original packing
Brand :
huawei
Product name :
S5720-56C-HI-AC
Device type :
Huawei 48 Port Switch
Product type :
Huawei S5720 Switch
Ports :
48 Ethernet 10/100/1000 ports
uplink ports :
4 x 10 Gig SFP+
Forwarding Performance :
192Mpps
AC power supply :
600W
Description

Huawei S5720-56C-HI-AC S5700 48 Ports 10GE SFP+ Ethernet Network Switch

  • 48 Ethernet 10/100/1000 ports
  • 4 10 Gig SFP+
  • 2 interface slots
  • 600W AC power supply
  • Forwarding performance: 192 Mpps

Huawei S5720-56C-HI-AC S5700 48 Ports 10GE SFP+ Ethernet Network Switch

1 Forty-eight 10/100/1000BASE-T ports 2

Four 10GE SFP+ ports

Applicable modules and cables:

· GE optical module

· GE-CWDM optical module

· GE-DWDM optical module

· GE copper module

· 10GE SFP+ optical module (OSXD22N00 not supported)

· 10GE-CWDM optical module

· 10GE-DWDM optical module (applicable in V200R009C00 and later versions)

· 1 m, 3 m, and 10 m SFP+ high-speed copper cables

· 5 m SFP+ high-speed copper cable (applicable in V200R009C00 and later versions)

· 3 m and 10 m AOC cables

· 0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking, supported in V200R011C10 and later versions)
3 One ETH management port 4 One mini USB port
5 One console port 6 One USB port
7

Ground screw

NOTE:

It is used with a ground cable.

 8

ESN label

NOTE:

You can draw it out to view the ESN and MAC address of the switch.
9

Rear card slot 1

NOTE:

This slot is reserved for future use.

 10

Rear card slot 2

NOTE:

Card supported: ES5D21X04S01 (4-Port 10 GE SFP+ Rear Interface Card)
11

Power module slot 2

NOTE:

Applicable power modules:

· 350 W DC power module

· 600 W AC power module

 12

Power module slot 1

NOTE:

Applicable power modules:

· 350 W DC power module

· 600 W AC power module
Item Description
Memory (RAM) 4 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Power supply surge protection

· Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode

· Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Dimensions (H x W x D) 44.4 mm x 442.0 mm x 420.0 mm (1.75 in. x 17.4 in. x 16.5 in.)
Weight (with packaging) 10 kg (22.05 lb)
Stack ports

Four fixed 10GE SFP+ ports on the front panel or ports on the 4-port 10GE SFP+ rear interface card

NOTE:

The switch supports service port stacking since V200R009C00.
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC
Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 183.3 W

Typical power consumption (30% of traffic load)

· Tested according to ATIS standard

· EEE enabled

· No PoE power consumption

 128.93 W
Part number 02358598

Huawei S5720-56C-HI-AC S5700 48 Ports 10GE SFP+ Ethernet Network SwitchHuawei S5720-56C-HI-AC S5700 48 Ports 10GE SFP+ Ethernet Network SwitchHuawei S5720-56C-HI-AC S5700 48 Ports 10GE SFP+ Ethernet Network SwitchHuawei S5720-56C-HI-AC S5700 48 Ports 10GE SFP+ Ethernet Network Switch

Huawei S5720-56C-HI-AC S5700 48 Ports 10GE SFP+ Ethernet Network Switch
