UniFi Pro 24 Port PoE Cisco Gigabit Switch USW-Pro-24-PoE Layer 3 10G SFP Port
UniFi Pro 24 Port PoE Cisco Gigabit Switch USW-Pro-24-PoE Layer 3 10G SFP Port
UniFi Pro 24 Port PoE Cisco Gigabit Switch USW-Pro-24-PoE Layer 3 10G SFP Port
UniFi Pro 24 Port PoE Cisco Gigabit Switch USW-Pro-24-PoE Layer 3 10G SFP Port
UniFi Pro 24 Port PoE Cisco Gigabit Switch USW-Pro-24-PoE Layer 3 10G SFP Port
UniFi Pro 24 Port PoE Cisco Gigabit Switch USW-Pro-24-PoE Layer 3 10G SFP Port
Specifications
Brand Name :
UniFi
Model Number :
USW-Pro-24-PoE
Place of Origin :
USA
MOQ :
1 unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 pcs per week
Delivery Time :
3-5 work days
Packaging Details :
Packing box
Subtype :
Gigabit
Product name :
USW-Pro-24-PoE
Brand :
UniFi
Ports :
24x RJ45 + 1/10G SFP
Switching Capacity :
88 Gbps
PoE Ports :
24
Product Type :
10G SFP Port Switch
Device Type :
UniFi Pro 24 Port PoE Switch
Description

UniFi Pro 24 Port PoE Switch USW-Pro-24-PoE Layer 3 10G SFP Port Switch

Overview

Expand and power your network with the UniFi® Pro PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:

• USW-Pro-24-PoE 24 RJ45 ports with 2 SFP+ ports
• USW-Pro-48-PoE 48 RJ45 ports with 4 SFP+ ports

Near-Silent Cooling

The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power
Management) control, air ducts and covers, and temperature sensors for the best user experience.

802.3bt PoE+

PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high‑power PoE devices. Remaining ports offer 802.3af/at PoE.

Layer 3 Features

In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities1 ,such as inter‑VLAN routing, static routing, and DHCP server functionality.

Fiber Connectivity

SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance
storage server or deploy a long-distance uplink to another switch.

Power Supply Redundancy

The UniFi Pro PoE Switch supports our PSU failover system, the UniFi SmartPower RPS, model USP-RPS. If the internal power supply unit fails, the proprietary USP RPS interface acts to provide redundant power for backup2 .

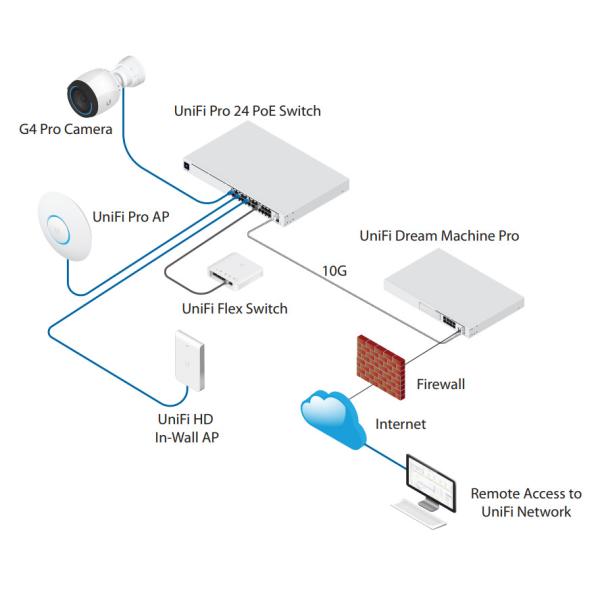

Deployment Example
UniFi Pro 24 Port PoE Cisco Gigabit Switch USW-Pro-24-PoE Layer 3 10G SFP Port
The USW-Pro-24-PoE powers the UniFi Video Camera G4 Pro, UniFi AC Pro AP, and UniFi AC IW AP with 802.3af/at PoE, while delivering 802.3bt PoE++ to the USW-Flex.
UniFi Pro 24-Port PoE Switch
• (16) Gigabit RJ45 ports with 802.3af/at
• (8) Gigabit RJ45 ports with 802.3bt
• (2) 1/10G SFP+ports
• 1U Rackmountable (hardware included)
UniFi Pro 24 Port PoE Cisco Gigabit Switch USW-Pro-24-PoE Layer 3 10G SFP Port
USW-Pro-24-PoE
Dimensions
442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72")
Weight With Brackets
4.30kg(9.48 lb) 4.39 kg (9.681 lb)
Interfaces Networking Management
(24) 10/100/1000 RJ45 Ports (2) 1/10G SFP Ethernet Ports Ethernet In-Band
Total Non-Blocking Throughput
44 Gbps
Switching Capacity
88 Gbps
Forwarding Rate
65.472 Mpps
Power Method Universal Input USP RPS DC Input
100-240VAC, 50/60 Hz 52VDC, 7.69A; 11.5VDC, 2.61A
Power Supply
AC/DC, Internal, 450W
Voltage Range
100 to 240VAC
Max Power Consumption (Excluding PoE Output)
50W
Total Available PoE
400W
PoE Interfaces Ports 1-16
Ports 17-24 802.3af/at 802.3bt
PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 60W PoE++ IEEE 802.3af/at/bt (Pins 1, 2+; 3, 6-) (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7,
8-)
Max. PoE Wattage per Port by PSE 802.3at 802.3bt
32W 64W
Voltage Range 802.3af Mode 802.3at Mode
44-57V 50-57V

UniFi Pro 24 Port PoE Cisco Gigabit Switch USW-Pro-24-PoE Layer 3 10G SFP PortUniFi Pro 24 Port PoE Cisco Gigabit Switch USW-Pro-24-PoE Layer 3 10G SFP PortUniFi Pro 24 Port PoE Cisco Gigabit Switch USW-Pro-24-PoE Layer 3 10G SFP PortUniFi Pro 24 Port PoE Cisco Gigabit Switch USW-Pro-24-PoE Layer 3 10G SFP Port
