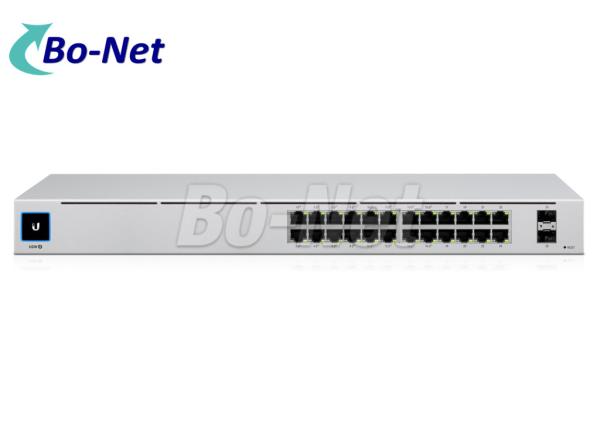

USW-24-POE UniFi Cisco 24 Port Gigabit Switch Managed Gen2 802.3af/at UniFi
USW-24-POE UniFi Cisco 24 Port Gigabit Switch Managed Gen2 802.3af/at UniFi
USW-24-POE UniFi Cisco 24 Port Gigabit Switch Managed Gen2 802.3af/at UniFi
USW-24-POE UniFi Cisco 24 Port Gigabit Switch Managed Gen2 802.3af/at UniFi
USW-24-POE UniFi Cisco 24 Port Gigabit Switch Managed Gen2 802.3af/at UniFi
USW-24-POE UniFi Cisco 24 Port Gigabit Switch Managed Gen2 802.3af/at UniFi
Specifications
Brand Name :
UniFi
Model Number :
USW-24-POE
Place of Origin :
USA
MOQ :
1 unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 pcs per week
Delivery Time :
3-5 work days
Packaging Details :
Packing box
Subtype :
Gigabit
Product name :
USW-24-POE
Brand :
UniFi
Ports :
24x RJ45 + 2 SFP
Switching Capacity :
52 Gbps
Forwarding Rate :
38.69 Mpps
Product Type :
UniFi 24 Port POE Switch
Device Type :
UBNT UniFi Switch USW-24-POE
Description

USW-24-POE UniFi 24 Port Gigabit Network POE Switch Gen2 802.3af/at UniFi Switch

Overview

Expand and power your network with the UniFi® PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:
• USW-16-PoE 16 RJ45 ports with 2 SFP ports
• USW-24-PoE 24 RJ45 ports with 2 SFP ports
Compact Form Factor
Measuring only 7.9" in depth, the UniFi PoE Switch is designed for convenient installation:
• rackmounted in a SOHO rack cabinet
• placed on a desktop
Fiber Connectivity
SFP ports enable network uplinks of up to 1 Gbps. Fanless, Silent Cooling
The UniFi PoE Switch features fanless, silent thermal cooling*, so it can be deployed in areas where fan noise would be distracting.

Switching Performance
The UniFi PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
802.3af/at PoE
PoE support simplifies your network infrastructure and cabling. PoE ports offer 802.3af/at to power your PoE devices, such as UniFi APs and cameras.
Deployment Example
USW-24-POE UniFi Cisco 24 Port Gigabit Switch Managed Gen2 802.3af/at UniFi
UniFi 24-Port PoE Switch
• (16) Gigabit RJ45 ports with 802.3af/at
• (8) Gigabit RJ45 ports
• (2) 1G SFP ports
• 1U Rackmountable (hardware included)
USW-24-POE UniFi Cisco 24 Port Gigabit Switch Managed Gen2 802.3af/at UniFi
USW-24-PoE
Dimensions
442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72")
Weight With Brackets
3.00kg(6.61 lb) 3.09 kg (6.81 lb)
Interfaces Networking Management
(24) 10/100/1000 RJ45 Ports (2) 1G SFP Ethernet Ports Ethernet In-Band
Total Non-Blocking Throughput
26 Gbps
Switching Capacity
52 Gbps
Forwarding Rate
38.69 Mpps
Power Method
100-240VAC, 50/60 Hz, Universal Input
Power Supply
AC/DC, Internal, 120W
Voltage Range
100 to 240VAC
Max Power Consumption (Excluding PoE Output)
25W
Total Available PoE
95W
PoE Interfaces Ports 1-8
POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE 802.3at
32W
Voltage Range 802.3af Mode 802.3at Mode
44-57V 50-57V

USW-24-POE UniFi Cisco 24 Port Gigabit Switch Managed Gen2 802.3af/at UniFi

USW-24-POE UniFi Cisco 24 Port Gigabit Switch Managed Gen2 802.3af/at UniFiUSW-24-POE UniFi Cisco 24 Port Gigabit Switch Managed Gen2 802.3af/at UniFiUSW-24-POE UniFi Cisco 24 Port Gigabit Switch Managed Gen2 802.3af/at UniFiUSW-24-POE UniFi Cisco 24 Port Gigabit Switch Managed Gen2 802.3af/at UniFi
