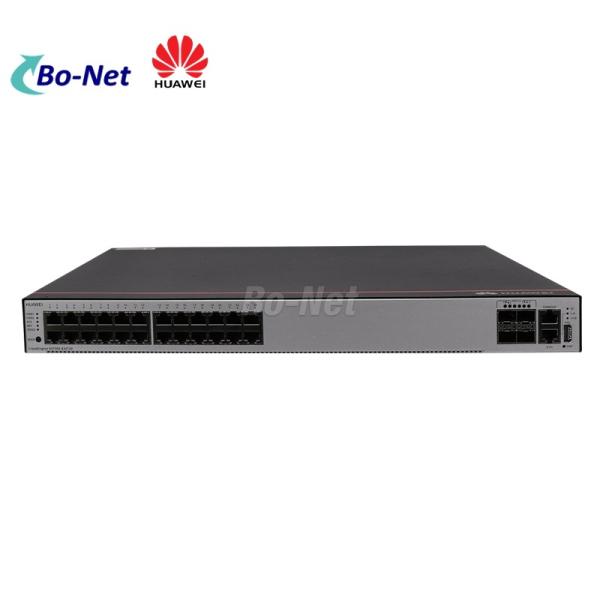

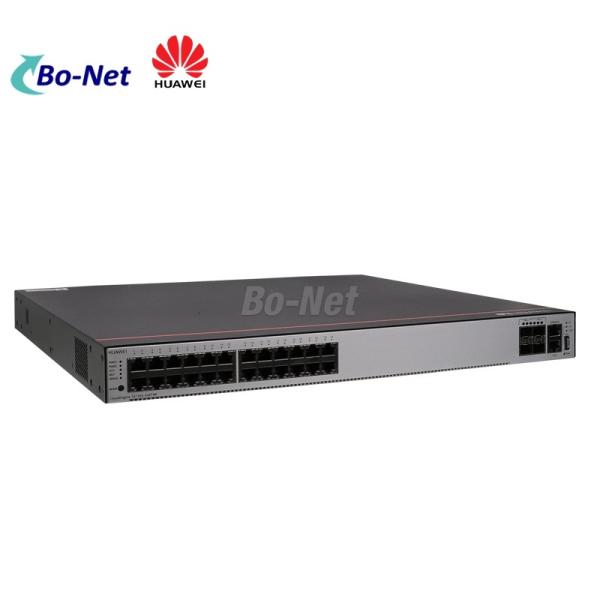

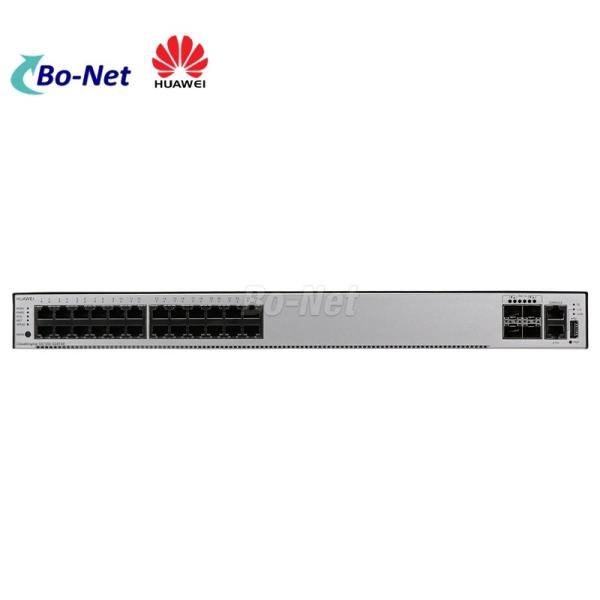

24 Port Gigbit 4 10G SFP+ Switch CloudEngine S5735S-S24T4X-A
24 Port Gigbit 4 10G SFP+ Switch CloudEngine S5735S-S24T4X-A
24 Port Gigbit 4 10G SFP+ Switch CloudEngine S5735S-S24T4X-A
24 Port Gigbit 4 10G SFP+ Switch CloudEngine S5735S-S24T4X-A
24 Port Gigbit 4 10G SFP+ Switch CloudEngine S5735S-S24T4X-A
24 Port Gigbit 4 10G SFP+ Switch CloudEngine S5735S-S24T4X-A
24 Port Gigbit 4 10G SFP+ Switch CloudEngine S5735S-S24T4X-A
24 Port Gigbit 4 10G SFP+ Switch CloudEngine S5735S-S24T4X-A
Specifications
Brand Name :
Huawei
Model Number :
S5735S-S24T4X-A
Place of Origin :
USA
MOQ :
1 unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal,Alipay
Supply Ability :
100pcs per week
Delivery Time :
1-2 work days
Packaging Details :
Original Cisco Packing
Brand :
HUAWEI
Model :
S5735S-S24T4X-A
ports :
24 Port Gigbit 4 10G SFP+
Type :
Switch
Fixed Por :
10/100/1000Mbps
Description
Specification
Fixed port
Twenty-four 10/100/1000BASE-T ports Four 10GE SFP+ ports
Memory (RAM)
1 GB
Flash
512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)
69.42 years
Mean time to repair (MTTR)
2 hours
Availability
> 0.99999
Service port surge protection
Common mode: ±7 kV
Power supply surge protection
Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Stack ports
Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable in V200R019C10 and later versions)
Rated voltage range
AC input: 100 V AC to 240 V AC, 50/60 Hz; High-Voltage DC input: 240 V DC; DC input: -48 V DC to -60 V DC
Maximum voltage range
AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz; High-Voltage DC input: 190 V DC to 290 V DC; DC input: -38.4 V DC to -72 V DC
Maximum power consumption
46 W
(100% throughput, full speed of fans)
Typical power consumption
31 W
(30% of traffic load)
Certification
EMC certification; Safety certification; Manufacturing certification
Dimensions (H x W x D)
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm
Weight (with packaging)
7.89 kg
Product Model
CloudEngine S5735-S24T4X
CloudEngine S5735-S24P4X
CloudEngine S5735-S32ST4X
CloudEngine S5735-S48T4X
CloudEngine S5735-S48P4X
CloudEngine S5735-S48S4X
Forwarding Performance
96 Mpps
96 Mpps
108 Mpps
132 Mpps
132 Mpps
132 Mpps
Switching Capacity2
128 Gbps/336 Gbps
128 Gbps/336 Gbps
144 Gbps/432 Gbps
176 Gbps/432 Gbps
176 Gbps/432 Gbps
176 Gbps/432 Gbps
Fixed Ports
24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
48 x GE SFP ports, 4 x 10 GE SFP+ ports
PoE+
Not supported
Supported
Not supported
Not supported
Supported
Not supported
MAC Features
IEEE 802.1d compliance
MAC address auto-learning and aging
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
VLAN Features
4094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
IP Routing
Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
Super Virtual Fabric (SVF)
Plug-and-play SVF clients
Automatic software package and patch loading to SVF clients
One-click and automatic delivery of service configurations
Independent SVF client operation
Interoperability
VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VT
