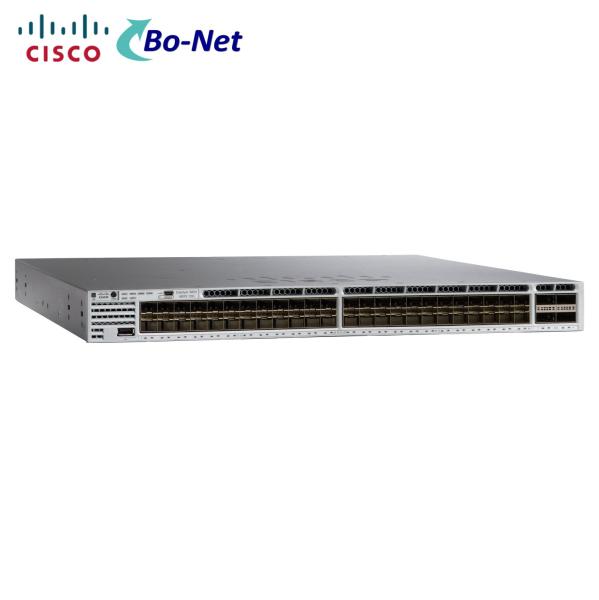

Cisco WS-C3850-48XS-S 48-port SFP+ 4 QSFP+ Ethernet ports 10G Fiber Switch IP Base
Cisco WS-C3850-48XS-S 48-port SFP+ 4 QSFP+ Ethernet ports 10G Fiber Switch IP Base
Specifications
Brand Name :
Cisco
Model Number :
WS-C3850-48XS-S
Place of Origin :
USA
MOQ :
1 unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Alipay, Paypal
Supply Ability :
100pcs per week
Delivery Time :
1~2 working days
Packaging Details :
Cisco original package
Model :
WS-C3850-48XS-S
Condition :
100% Original Brand
Port :
48 x 10/100/1000
RAM :
4GB
Flash Memory :
4GB
IOS :
IP Base
Forwarding Performance :
68.4 Mpps
Stack bandwidth :
480 Gbps
Description

Cisco WS-C3850-48XS-S 48-port SFP+ 4 QSFP+ Ethernet ports 10G Fiber Switch IP Base

Integrated wireless controller capability with:

Up to 40G of wireless capacity per switch (48-port RJ45 models)

Support for up to 100 access points and 2000 wireless clients on each switching entity (switch or stack)

24 and 48 10/100/1000Mbps data PoE+ and Cisco UPOE models with Energy-Efficient Ethernet (EEE)

24 and 48 100Mbps/1/2.5/5/10 Gbps Cisco UPOE models with Energy-Efficient Ethernet (EEE)

12- and 24-port 1 Gigabit Ethernet SFP-based models

12- and 24-port 1/10 Gigabit Ethernet SFP+-based models

48-port 1/10 Gigabit Ethernet SFP+ model with 4 fixed 40 Gigabit Ethernet QSFP+ uplinks

Cisco StackWise-480 technology provides scalability and resiliency with 480 Gbps of stack throughput

Cisco StackPower technology provides power stacking among stack members for power redundancy

Five optional uplink modules with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, 4 x 10 Gigabit Ethernet, 8 x 10 Gigabit Ethernet4, or 2 x 40 Gigabit Ethernet QSFP+ ports

Dual redundant, modular power supplies and three modular fans providing redundancy

Full IEEE 802.3at (PoE+) with 30W power on all copper ports in 1 Rack Unit (RU) form factor

Cisco UPOE with 60W power per port in 1 Rack Unit (RU) form factor

IEEE 802.3bz (2.5/5 G/s BASE-T) to go beyond 1 Gb/s with existing Cat5e and Cat6

IEEE 802.1ba AV Bridging (AVB) built-in to provide better AV experience for including improved time synchronization and QoS

Software support for IPv4 and IPv6 routing, multicast routing, modular Quality of Service (QoS), Flexible NetFlow (FNF), and enhanced security features

Single universal Cisco IOS Software image across all license levels, providing an easy upgrade path for software features

Cisco DNA services delivered through Cisco ONESoftware, providing simplified, high-value solutions with license portability and flexibility

Support for AES-256 with the powerful MACSEC 256-bit for SFP+ and Multigigabit models and 128-bit encryption algorithm available on all models

Enhanced Limited Lifetime Warranty (E-LLW) with Next Business Day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support

Cisco WS-C3850-48XS-S 48-port SFP+ 4 QSFP+ Ethernet ports 10G Fiber Switch IP Base

Performance numbers for all switch models
Switching capacity

176 Gbps on 48-port Gigabit Ethernet model

92 Gbps on 24-port Gigabit Ethernet model

68 Gbps on 12-port Gigabit Ethernet model

640 Gbps on 24-port Multigigabit Ethernet model*

472 Gbps on 48-port Multigigabit Ethernet model

1280 Gbps on 48-port 10 Gigabit Ethernet SFP+ model*

640 Gbps on 24-port 10 Gigabit Ethernet SFP+ model*

320 Gbps on 12-port 10 Gigabit Ethernet SFP+ model*
Stacking bandwidth 480 Gbps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes) 24,000
FNF entries

48,000 flow on 48-port Gigabit Ethernet models

24,000 flows on 12-port and 24-port Gigabit Ethernet models

96,000 flows on 48-port 10 Gigabit Ethernet SFP+ model

48,000 flows on 24-port 10 Gigabit Ethernet SFP+ model

24,000 flows on 12-port 10 Gigabit Ethernet SFP+ model
DRAM 4 GB (8 GB on 48-port SFP+ model)
Flash 2 GB (4 GB on 12-port and 24-port SFP+ models, 8 GB on 48-port SFP+ model)
VLAN IDs 4,000
Total Switched Virtual Interfaces (SVIs) 1,000
Jumbo frame 9198 bytes
Total routed ports per 3850 stack 208
Wireless
Number of access points per switch/stack 100
Number of wireless clients per switch/stack 2000
Total number of WLANs per switch 64
Wireless bandwidth per switch

Up to 40 Gbps on 48-port Gigabit Ethernet model

Up to 20 Gbps on 24-port Gigabit Ethernet model
Supported Aironet access point series 3600, 3500, 2600, 1600, 1260, 1140, 1040
