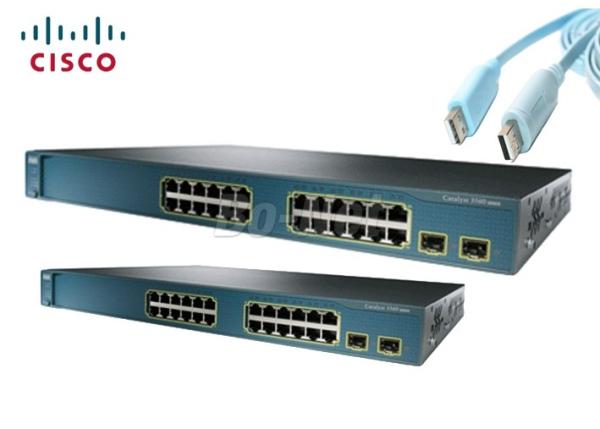

Cisco switch WS-C3560-24PS-E 24Port 10/100M POE Switch Managed Network Switch C3560 Series
Cisco switch WS-C3560-24PS-E 24Port 10/100M POE Switch Managed Network Switch C3560 Series
Cisco switch WS-C3560-24PS-E 24Port 10/100M POE Switch Managed Network Switch C3560 Series
Cisco switch WS-C3560-24PS-E 24Port 10/100M POE Switch Managed Network Switch C3560 Series
Specifications
Brand Name :
Cisco
Model Number :
WS-C3560-24PS-E
Certification :
ISO9001
Place of Origin :
USA
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal, Alipay
Supply Ability :
100pcs per week
Delivery Time :
1~2 working days
Packaging Details :
Original Cisco packing
Model# :
WS-C3560-24PS-E
Port :
24
Brand :
Cisco
Number of Sfp :
2 SFP
Data Transfer :
10/100M
IPv6 Dynamic Routing :
IPv6 Dynamic Routing
Power Over Ethernet :
IEEE 802.3af
License :
IP Services
Description

Cisco switch WS-C3560-24PS-E 24Port 10/100M POE Switch Managed Network Switch C3560 Series

● 24 Ethernet 10/100 ports and 2 SFP-based Gigabit Ethernet ports
● 1RU fixed-configuration, multilayer switch
● Enterprise-class intelligent services delivered to the network edge
● IEEE 802.3af and Cisco prestandard Power over Ethernet
● IP Services software feature set (IPS)

• Provides full IPv6 dynamic routing
Device Type Switch
Enclosure Type Rack-mountable - 1U
Installed Modules Qty (Max) 0 (installed) / 2 (max)
Width 17.5 in
Depth 11.8 in
Height 1.7 in
Weight 11.2 lbs
Memory
RAM 128 MB
Flash Memory 16 MB flash
Networking
Ports Qty 24 x Ethernet 10Base-T, Ethernet 100Base-TX
Data Transfer Rate 100 Mbps
Data Link Protocol Ethernet, Fast Ethernet
Routing Protocol RIP-1, RIP-2, HSRP, static IP routing, IGMPv3
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c
Connectivity Technology Wired
Communication Mode Half-duplex, full-duplex
Switching Protocol Ethernet
MAC Address Table Size 12K entries
Status Indicators Port status, port transmission speed, port duplex mode, system
Features Full duplex capability, layer 3 switching, auto-sensing per device, IP-routing, power over Ethernet (PoE), auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, manageable, Redundant Power System connector, MAC address filtering, IPv6 support, Quality of Service (QoS), DHCP server, Time Domain Reflectometry (TDR)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Expansion / Connectivity
Expansion Slots Total (Free) 2 ( 2 ) x SFP (mini-GBIC)
Interfaces 24 x network - Ethernet 10Base-T/100Base-TX - RJ-45 1 x management - RJ-45
Miscellaneous
MTBF 224,100 hour(s)
Authentication Method Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards CE, FCC Class A certified, UL, TUV GS, cUL, EN 60950, NOM, VCCI Class A ITE, IEC 60950, EN55022 Class A, UL 60950 Third Edition, CB, AS/NZ 3548 Class A

Cisco switch WS-C3560-24PS-E 24Port 10/100M POE Switch Managed Network Switch C3560 SeriesCisco switch WS-C3560-24PS-E 24Port 10/100M POE Switch Managed Network Switch C3560 Series
