AIR - PWRINJ6 Cisco Power Module Aironet Power POE Injector For Aironet Access Points 2802I 3802E
AIR - PWRINJ6 Cisco Power Module Aironet Power POE Injector For Aironet Access Points 2802I 3802E
AIR - PWRINJ6 Cisco Power Module Aironet Power POE Injector For Aironet Access Points 2802I 3802E
AIR - PWRINJ6 Cisco Power Module Aironet Power POE Injector For Aironet Access Points 2802I 3802E
AIR - PWRINJ6 Cisco Power Module Aironet Power POE Injector For Aironet Access Points 2802I 3802E
AIR - PWRINJ6 Cisco Power Module Aironet Power POE Injector For Aironet Access Points 2802I 3802E
Specifications
Brand Name :
Cisco
Model Number :
AIR-PWRINJ6
Place of Origin :
USA
MOQ :
1 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200pcs per week
Delivery Time :
3-5 working day
Packaging Details :
carton
Brand :
cisco
Product name :
AIR-PWRINJ6
Device type :
Cisco Aironet Power Injector
Data Rates :
10/100/100 Mbps
Designed For: :
Cisco 2802I And 3802E access points.
User Port Power :
30 Watts
Product Type :
PoE injector
Connectors :
Shielded RJ-45, EIA 568A and 568B
Description

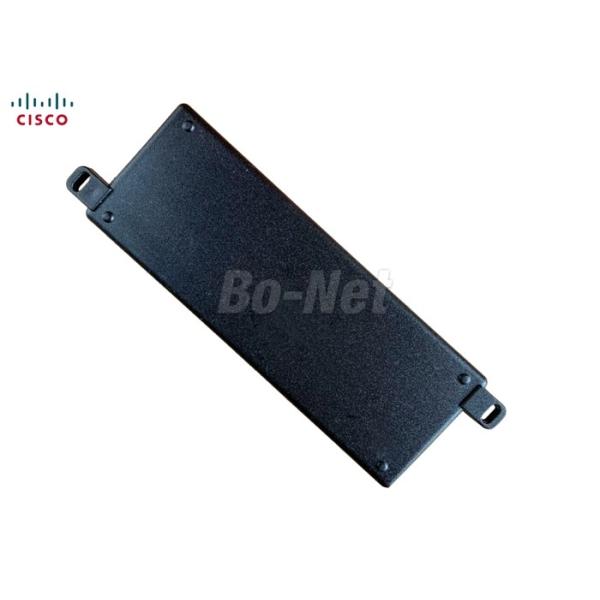

Cisco AIR-PWRINJ6 Aironet Power POE Injector For Aironet Access Points 2802I 3802E

The Cisco Aironet Power Injector AIR-PWRINJ6= increases wireless LAN deployment flexibility of supported Cisco Aironet Access Points by providing an alternative powering option to local power, inline power-capable multiport switches, and multiport power patch panels.

The single-port PoE injector provides up to 30 Watts and is compliant with IEEE 802.3af (15.4 W) and IEEE 802.3at (30 W) systems. This power injector is for use with the Cisco Aironet 2800 series and 3800 series access points.

1
 AP Connector Port (Data + Power Out)
3
 Status LED1
2
 Switch Connector Port (Data In)
4
 C13 Power Connector
Specification
AIR-PWRINJ6=
Dimensions (W, H, L)

Model 1: 53 mm x 32.5 mm x 140 mm
2.09 in x 1.28 in x 5.5 in

Model 2: 65 mm x 36 mm x 140 mm
2.55 in x 1.42 in x 5.51 in
Data Rates 10/100/100 Mbps
PoE Output

Pin Assignment and Polarity:
4/5 (+), 7/8 (-)

Output Power Voltage: 55V DC
User Port Power 30 Watts
Input Power Requirements AC Input Voltage: 100 to 240V AC
AC Input Current: 0.67 A @ 100 - 240 V AC
AC Frequency: 50 to 60 Hz
Weight Model 1: 0.44 lbs (200 g)
Model 2: 0.47 lbs (215 g)
Connectors Shielded RJ-45, EIA 568A and 568B
Environmental Conditions

Operating Ambient Temperature:
-4ºF to 104ºF (-20ºC to 40ºC) at 30 W
-4ºF to 122ºF (-20ºC to 50ºC) at 25 W

Operating Humidity:
Maximum 90%, Non-condensing

Storage Temperature:
-4ºF to 158ºF (-20ºC to 70ºC)
Reliability MTBF: 100,000 hrs @ 25ºC
Thermal Rating 20 BTU/Hr @ 240 V AC
Regulatory Compliance IEEE 802.3 at (PoE), China RoHS Compliant, WEEE Compliant, CE Compliant
Electromagnetic Emission and Immunity FCC Part 15, Class B
EN 55022 Class B (Emissions)
EN 55024 (Immunity)
VCCI
Safety UL 60950-1
IEC/EN 60950-1
Stacking restrictions

Do not stack. Do not bundle the power injector and AC power cable.
