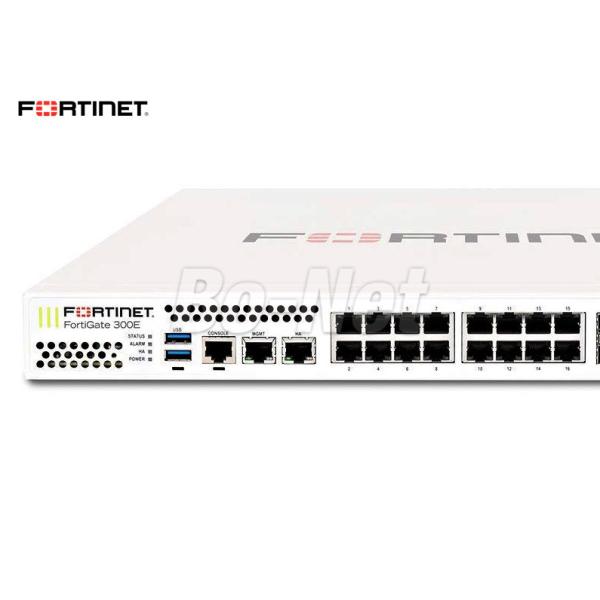

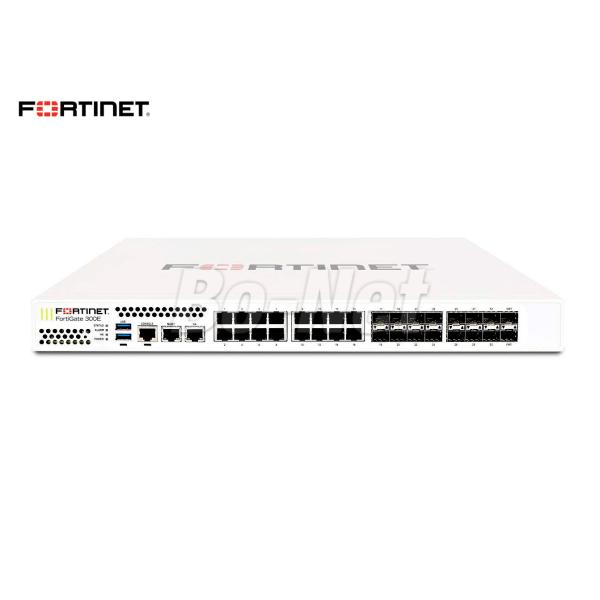

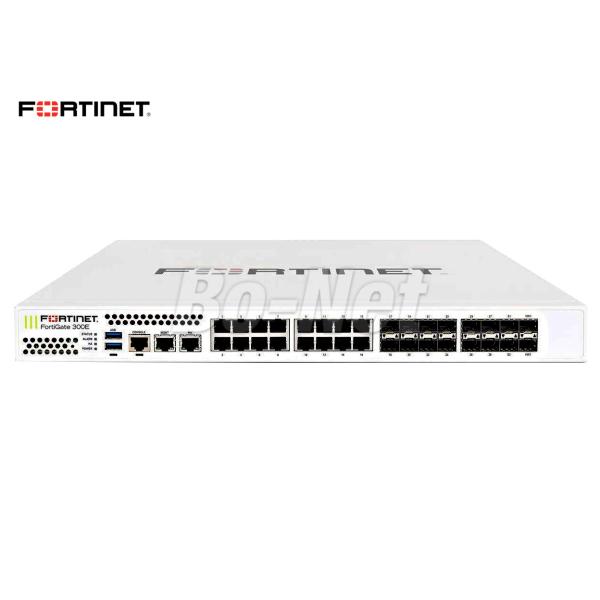

New Original Fortinet FortiGate 300E FG-300E Network Security Firewall
FG-300E is the Fortinet NGFW Middle-range Series FortiGate 300E firewall. The FortiGate 300E series delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch.

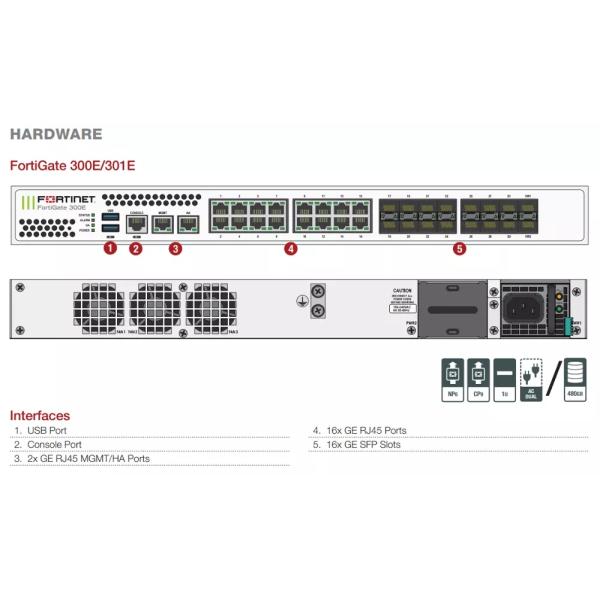

GE RJ45 Interfaces | 16 |
GE SFP Slots | 16 |
GE RJ45 Management Ports | 2 |
USB Ports | 2 |
RJ45 Console Port | 1 |
Included Transceivers | 2x SFP (SX 1 GE) |
IPS Throughput 2 | 5 Gbps |
NGFW Throughput 2, 4 | 3.5 Gbps |
Threat Protection Throughput 2, 5 | 3 Gbps |
Throughput | 32 / 32 / 20 Gbps |
Latency (64 byte UDP packets) | 3 μs |
Throughput (Packets Per Second) | 30 Mpps |
Concurrent Sessions | 4 Million |
New Sessions/Second | 300,000 |
Policies | 10,000 |
IPsec VPN Throughput (512 byte) | 20 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
Client-to-Gateway IPsec VPN Tunnels | 50,000 |
SSL-VPN Throughput | 2.5 Gbps |
Concurrent SSL-VPN Users | 500 |
SSL Inspection Throughput 3 | 3.9 Gbps |
SSL Inspection CPS 3 | 2,500 |
SSL Inspection Concurrent Session 3 | 340,000 |
Application Control Throughput 2 | 7 Gbps |
CAPWAP Throughput | 5 Gbps |
Virtual Domains | 10 / 10 |
Switches Supported | 48 |
FortiAPs | 512 / 256 |
FortiTokens | 1,000 |
Registered FortiClients | 600 |

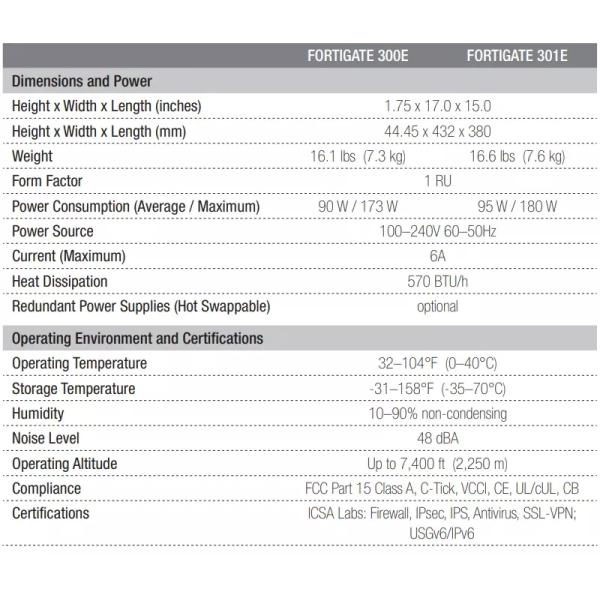

Height x Width x Length (mm) | 44.45 x 432 x 380 |
Weight | 16.1 lbs (7.3 kg) |
Power Consumption | 90 W / 173 W |
Power Source | 100–240V 60–50Hz |
