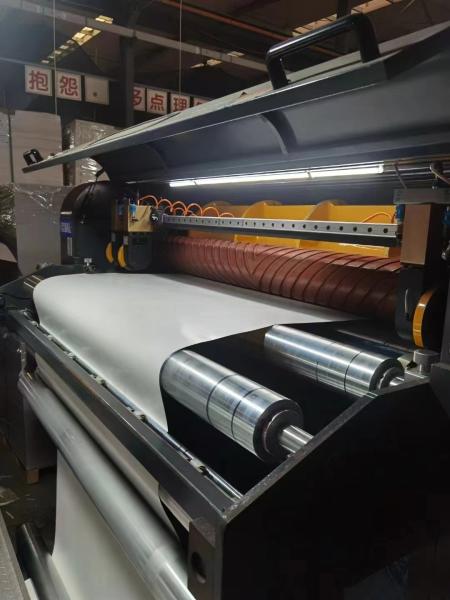

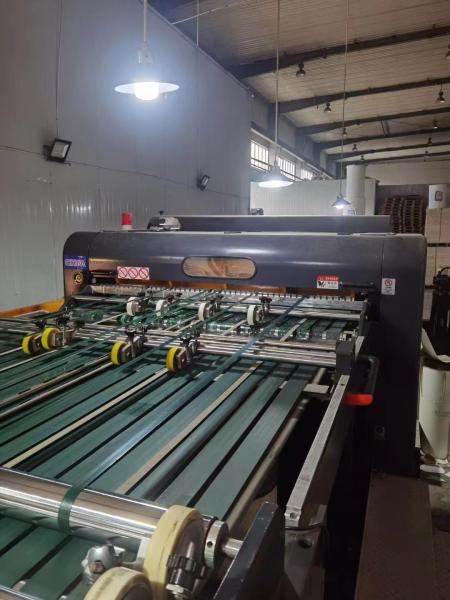

CHM-1700-2 Paper Sheeter Cutter Machine, Max.speed of cutting:300cuts/min,. Max.cutting speed : 300m/min
CHM-1700-2 Paper Sheeter Cutter Machine, Max.speed of cutting:300cuts/min,. Max.cutting speed : 300m/min
CHM-1700-2 Paper Sheeter Cutter Machine, Max.speed of cutting:300cuts/min,. Max.cutting speed : 300m/min
CHM-1700-2 Paper Sheeter Cutter Machine, Max.speed of cutting:300cuts/min,. Max.cutting speed : 300m/min
CHM-1700-2 Paper Sheeter Cutter Machine, Max.speed of cutting:300cuts/min,. Max.cutting speed : 300m/min
CHM-1700-2 Paper Sheeter Cutter Machine, Max.speed of cutting:300cuts/min,. Max.cutting speed : 300m/min
CHM-1700-2 Paper Sheeter Cutter Machine, Max.speed of cutting:300cuts/min,. Max.cutting speed : 300m/min
CHM-1700-2 Paper Sheeter Cutter Machine, Max.speed of cutting:300cuts/min,. Max.cutting speed : 300m/min
CHM-1700-2 Paper Sheeter Cutter Machine, Max.speed of cutting:300cuts/min,. Max.cutting speed : 300m/min
CHM-1700-2 Paper Sheeter Cutter Machine, Max.speed of cutting:300cuts/min,. Max.cutting speed : 300m/min
CHM-1700-2 Paper Sheeter Cutter Machine, Max.speed of cutting:300cuts/min,. Max.cutting speed : 300m/min
CHM-1700-2 Paper Sheeter Cutter Machine, Max.speed of cutting:300cuts/min,. Max.cutting speed : 300m/min
Specifications
Brand Name :
CHANGJIANG
Model Number :
CHM-1700-2
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
10000 dollors--120000dollors
Payment Terms :
L/C, T/T
Supply Ability :
1set
Delivery Time :
45 days
Packaging Details :
Wrap film or box
Description
Model CHM-1700II
1. Type of cutting : Top blade rotary, bottom blade fixed
2. Total weight of paper : 60-550 GSM
3..reel diameter : Max 1800mm (71")
4. Finished width : Max 1400mm (55")
5. Finished sheet-Length : Min.450-Max.1650 mm
6. Num.of rolls cutting : 2 rolls
7. Cutting accuracy :

±0.5mm(L<1000mm)

±0.1% (L≥1000mm)
8. Max.speed of cutting : 300cuts/min
9. Max.cutting speed : 300m/min
10. Requirement of the air pressure : 0.8MPa
11. Voltage : AC380V/220Vx50Hz
12. Total power: : 37KW
13. Accuracy of the roller paper sheet :

±0.5mm(L<1000mm);±0.1% (L≥1000mm)

±0.1%(accelerate or decelerate).

This depend on machine stable and operation when cutting. (cutting one paper roll, the cutting length is right )
14. Output : The real output depend on the material, and the weight of the paper, and right operate process
