JIGUO TMY-800H Automatic Die Cutting And Hot Stamping Machine,Years 2019

1.Company Profile

Tangshan JIGUO Printing Machinery Co., LTD., founded in 1996, is a high-tech enterprise started jointly by a number of senior engineers, and is located in the central area of YuTian County within the golden triangle economic zone consisted by Beijing, Tianjin and Tangshan city with 42.81 mu area covered. Our company has a technical team consisting of 160 elite personnel who contribute to our strong technical power, high level skills of design, assembly and manufacturing, perfect management system and advanced processing and testing equipment. Our company is specialized in production of post-print paper packaging equipment, and has established long-term scientific cooperation for die-cutting machine schemes with the Beijing Institute of Graphic Communication. The company is a modern enterprise incorporating the design, research and development, sales and service

Details Specifications

Product Introduce

1.Paper Feeding Unit

• The enlarged paper feeding head (Feeder head) has 4 suction nozzles applicable for paper in different thicknesses and 2 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 2 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.
• By the special secondary paper feeding and preliminary paper stacking, the primary and secondary can be shifted to ensure uninterrupted paper feeding.
• To improve the working efficiency, paper feeding and collecting are realized by Taiwan WANSHSIN dual-speed reduction motor which provides a long service life and a high torsional force, and it saves time due to its high lowering speed.

2.Paper Conveying Unit

• The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.
• Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.

3.Paper Die-cutting Unit

• Die-cutting unit eliminated castings wallboard due to casting wallboard has small pull, large deformation and without limitation, instead it uses steel wallboards like Japan. To increase pulling force is to increase pressure, and it is strong and durable, changeless form.
• Automatic pressure control make the machine achieve new successes. This added functions, make it become the digital equipment, handling fast, convenient to use.
• Taiwan high-pressure oil pump, use crush type for lubrication, reducing parts attrition and increasing oil temperature cooler to lubricant for cooling, on the main chain for regular lubrication, improve equipment efficiency.
• It has novel drive mechanism, execute high-speed die-cutting, high accuracy of swinging rod platform and improve the pad speed (almost don't need mat), we should know, a lot of manufacturers exist pressure uneven problem.
• Pneumatic locking plate device has firmer upper frame, saving time. Our company produces the die-cutting machine simultaneously to nether frame around for air lock, leading to strong accuracy, speed fast. All other manufacturers are just using screw fastening.
• Gripper bar chains are imported from Germany, to ensure the service life and stable die cutting precision.

4.Foil Stamping Unit

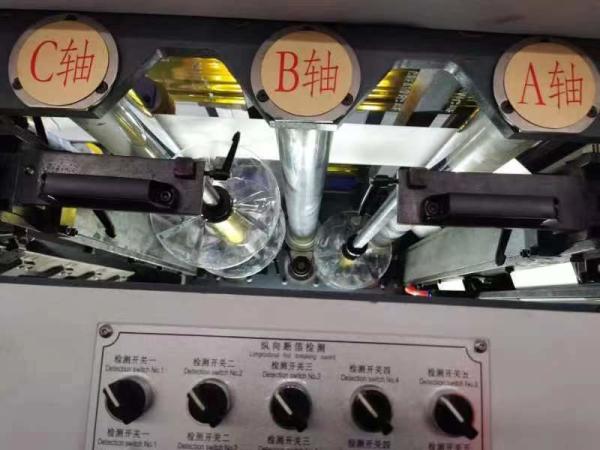

1,The foil can step in both cross and longitudinal two directions (2 transverse rollers and 3 longitudinal rollers), which can greatly meet different client's needs in various stamping.

2,The foil can step, which greatly meet client's needs in various stamping. 12 heating zones can be set individually and in constant temperature.

3,Adopting imported servo-motor and computer for foil control system, foil convey and tension is constant.

4,The adoption man-machine interface monitors to show the system, making the machine circulate the appearance to be clear at a glance; breaking down the manifestation, breaking down the exclusion with proficiency, real realizes person machine dialogue, person machine exchanges.

5,PLC and many electronic components are famous imported brand, which insure the machine to be safe and reliable.

5.Delivery Unit

• Automatic vacuum paper, orderly and clean
• Non-stop delivery gate plate can improve efficiency. When the paper stack is high enough, we can pull out the collect cardboard and push-in another piece deceive paper gate plate to change at the same time, thus achieved the non-stop delivery.
• Pneumatic sampling, which are accessible at any time to check the die cutting paper, very convenient.
