Specifications
Brand Name :
BOBST
Model Number :
SP-106
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
100000＄-150000＄
Payment Terms :
L/C, T/T
Supply Ability :
2 set
Delivery Time :
30DAYS
Packaging Details :
standard packaging
Max Ppaer Size :
1060mm*750mm
Min Paper Size :
350mm x 400mm
Machine speed :
7800 sheets per hour
Cutting force :
2.6MN (260 Ton)
Max. cutting size :
725mm x 1060mm
Gripper margin :
9 to 17mm
Max. feeder pile height :
1400 (1800) mm
Description

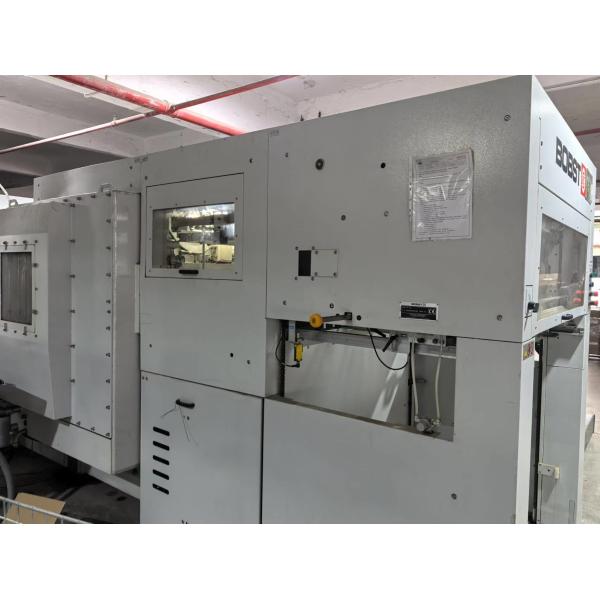

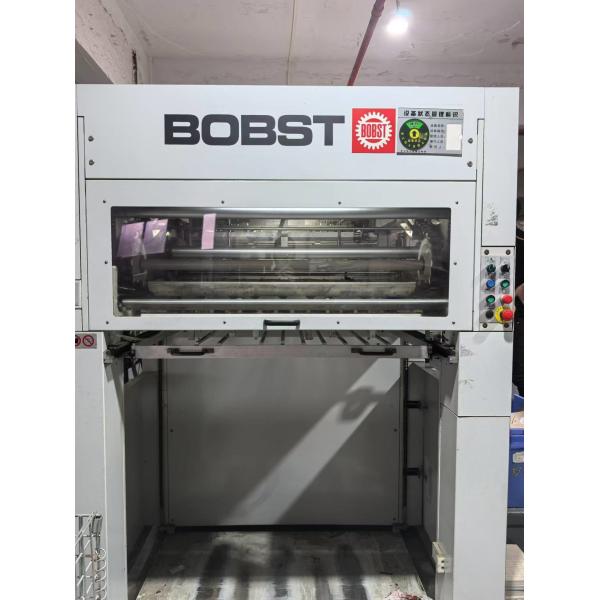

BOBST SP-106 Automatic Die Cutting & Stripping Machine Years 2014

BOBST SP-106 Automatic Die Cutting & Stripping Machine, Max Paper Size:1060*750mm,Machine speed: 7,800 sheets per hour

TECHNICAL SPECIFICATIONS:

Processed materials:

Paper: 80 g/m2 Carton board: 2000 g/m² max. Corrugated board: 4mm max.

Capability:

Min. sheet size: 350mm x 400mm

Max. sheet size: 740mm x 1,060m

Machine speed: 7,800 sheets per hour

Cutting force: 2.6MN (260 Ton)

Max. cutting size: 725mm x 1,060mm

Gripper margin: 9 to 17mm

Max. feeder pile height: 1,400 (1,800) mm

Max feeder, with non-Stop: 1,100 (1,500) mm

Max delivery: 1,100 (1,500) mm

Dimensions: 5.80m (L) X 4.20m (W) X 2.7m (H)

Net weight: 15 Tons

Centerline
C.U.B.E. System
Autoplaten concept
Double cam gripper bar advance
Quick-lock system in cutting chase
Quick-lock system in stripping station
Non stop Feeder
Condition: Very Good
