20 / 40 FT Cargo Flatbed Container Semi Trailer Truck Container Transport
20 / 40 FT Cargo Flatbed Container Semi Trailer Truck Container Transport
20 / 40 FT Cargo Flatbed Container Semi Trailer Truck Container Transport
20 / 40 FT Cargo Flatbed Container Semi Trailer Truck Container Transport
20 / 40 FT Cargo Flatbed Container Semi Trailer Truck Container Transport
20 / 40 FT Cargo Flatbed Container Semi Trailer Truck Container Transport
20 / 40 FT Cargo Flatbed Container Semi Trailer Truck Container Transport
20 / 40 FT Cargo Flatbed Container Semi Trailer Truck Container Transport
Specifications
Brand Name :
LSXC
Model Number :
LSX
Certification :
CCC ISO DOT
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 unit per month
Delivery Time :
30 working days
Packaging Details :
Without packaging or according to customer requirements
Payload :
50T
Type :
Semi-trailer
Dimension :
12.4m×2.61m×1.55m (Outside)
Tare weight :
About 7T
Twist lock :
12uints
King Pin :
2.00 or 3.5 inch bolt-in king pin
Accessories :
One standard tool box
Material :
Steel
Color :
Custom's Requirement
Condition :
New,used
Brake system :
WABCO valve
Description
20/40 FT Cargo Container Transport Flatbed Container Semi Trailer Truck
Flatbed Truck Trailer Of Product Characteristics:

> Variety of Sizes - 20ft, 40ft, 45ft, 48ft, 53ft, etc, both skeleton type and flatbed type.
> Light Weight - Light tare weight with strong loading capacity.
> Perfect Welding - professional welding of main beam guarantee stability and durability.
> Modern Transportation Accessories - spare tire carriers, water tank, fuel tank, etc.

Flatbed Truck Trailer Of Product Parameters:
Dimension 12.4m×2.61m×1.55m (Outside)
Payload 50T
Tare weight About 7T
Twist lock 12uints
Chassis
Main beam Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Frame Beam Top Flange 14mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 480mm
Frame Floor The Thickness is 3mm pattern
Axle 3 axles, 13Ton Fuwa brand 16ton brake pads
Landing Gear 28T lifting capacity with two speed
King Pin 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension reinforced type
Leaf Spring 90mm(W)*13mm(T)*10 Layer
Pneumatic Braking System Dual line pneumatic brake system,T30 air chamber ,40L air tanks, Emergency relay valve
Rim 9.0-20*12 pcs
Tire 12R22.5*12 pcs
Accessories One standard tool box
Spare tire rack One
Electrical system 24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors
Packing and shipping
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO/40HQ container

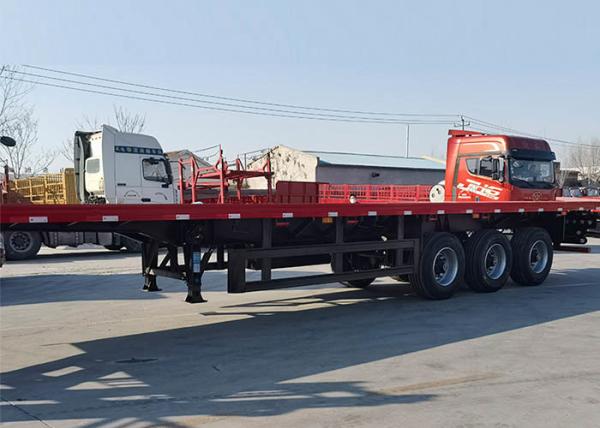

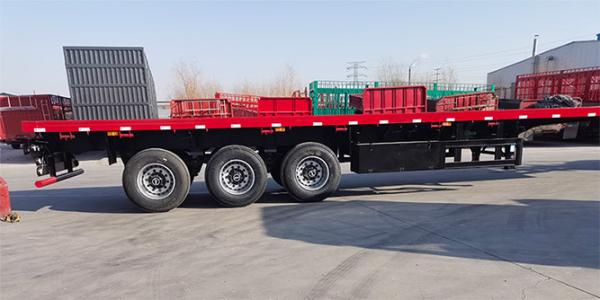

Flatbed Truck Trailer Of Details:

20 / 40 FT Cargo Flatbed Container Semi Trailer Truck Container Transport


Workshop of Dump Semi Truck Trailer:

20 / 40 FT Cargo Flatbed Container Semi Trailer Truck Container Transport

Reasons to choose us:

1. Our transportation equipment supports customized services, customized according to your different needs is your own unique transportation equipment.

2. The first-class brand of dump truck, the source factory wholesale price, high cost performance.

3. After-sales service is accurate and in place, proactively and promptly deal with after-sales problems for you, and support video after-sales service, if necessary, an engineer can also be arranged for on-site service.


Our service:

1.We will provide you one-to-one service throughout the entire process, answering questions about products before sales and checking and debugging equipment after sales, and assisting in equipment maintenance and testing.

2.Our company promises to provide one-year warranty for all new equipment and free consulting service for life.

3.After the equipment fails, we will reply to you within 24 hours and give you a solution within 48 hours.

FAQ:

Q: I want to transport the truck by container, is it ok?

A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.

Q: How about your product quality?

A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.

Q: I want to be your agent in my country, is that ok?

A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.

Q: How about your company's service, especially after-sale service?

A: we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.

Q: What is your payment terms?

A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the LC 100% at sight.

Q: What is your lead time?

A: Usually it is 30-50 days after deposit received.
