20000-25000 Liters Water Tank Container T3 Asphalt ISO Tank Container
20000-25000 Liters Water Tank Container T3 Asphalt ISO Tank Container
20000-25000 Liters Water Tank Container T3 Asphalt ISO Tank Container
20000-25000 Liters Water Tank Container T3 Asphalt ISO Tank Container
20000-25000 Liters Water Tank Container T3 Asphalt ISO Tank Container
20000-25000 Liters Water Tank Container T3 Asphalt ISO Tank Container
20000-25000 Liters Water Tank Container T3 Asphalt ISO Tank Container
20000-25000 Liters Water Tank Container T3 Asphalt ISO Tank Container
Specifications
Brand Name :
LISHIIXN
Model Number :
LSXC20220401
Certification :
ISO9001
Place of Origin :
China
MOQ :
1/unit
Price :
10500USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 unit
Delivery Time :
30 work days
Warranty :
1 Year
M.G.W. :
30,480 kgs
Description

China Factory 20000-25000 Liters Of Cheapest 20 ft T3 UN Portable Insulated Asphalt ISO Tank Container With ASME Standard

asphalt tank container:


1. Asphalt ISO tank container mainly used for transportation and storage of asphalt products, widely used in asphalt factory & Road Bureau as well as Shipping Company.
2. Asphalt ISO tank container is a pressure vessel mounted in a frame. Frame dimensions comply with the recommendations of the International Standards Organization (ISO). The unit is designed and constructed in accordance with strict international codes for the worldwide carriage of bulk liquids on land, rail and sea.


parameter:

New 20ft Biutmen Tank
Frame Dimension
20'*8'*8'6in (L*W*H)
Capacity
20,000 Litres +/- 2%
M.G.W.
30,480 kgs
Tare Weight
6,700 kgs
Max Payload
23,780 kgs
Working Pressure
1.76 Bar
Test Pressure
2.65 Bar
Allowable Vacuum
0.21 Bar
Design Temp:
-20°C to +230°C
Vessel Material:
16MnDR
Shell Thickness:
6 mm
Ends Thickness:
6 mm after forming
Corrosion Allowance
1 mm (Max.)
Frame Material:
GB/T 1591-Q345D
Frame to Shell:
Q345D
Corner castings:
ISO 1161 - 8 off
Vessel Design Code
ASME VIII
our Services:

We can provide you with a complete set of service from quota, design, manufacture and installation, according to your requirements we can design by your plan, or manufacture by your drawing, guarantees inner quality and safety, good looking appearance and function by introducing
international advanced large-sized equipment of pulse plasma arc welder and auto polishing machines and cooperating with international famous finished equipment making company.More detailed information will available on your requirement.we all have mature solutions at any time.

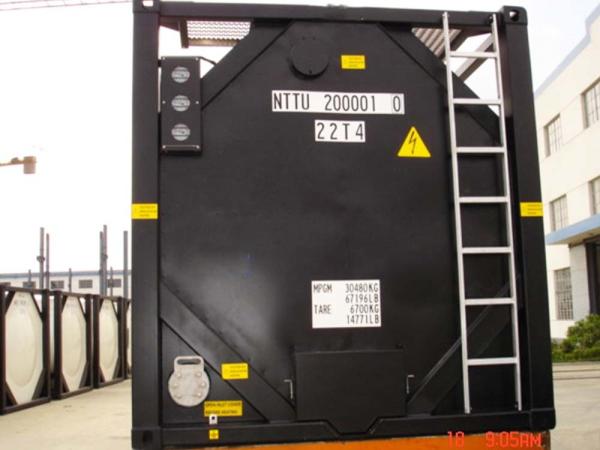

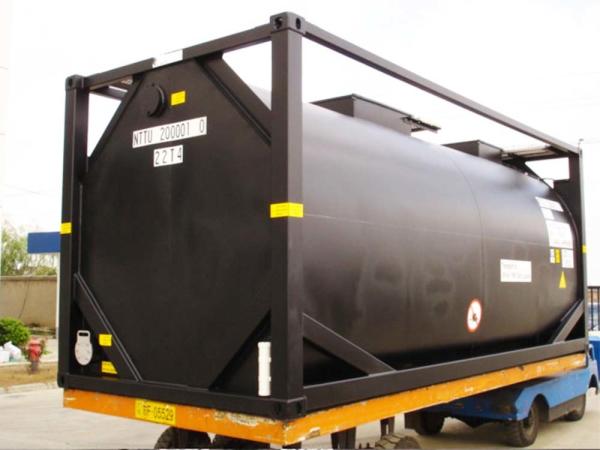

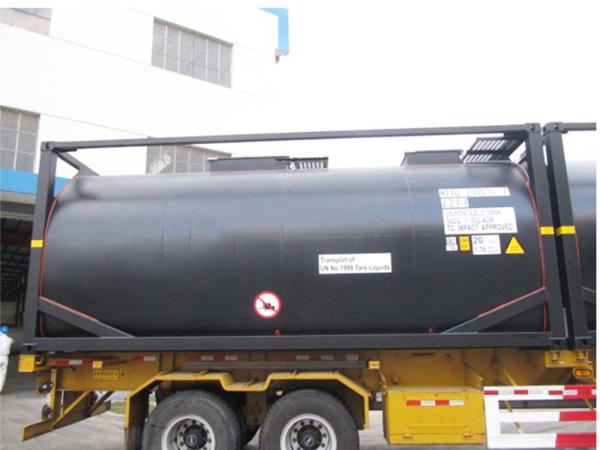

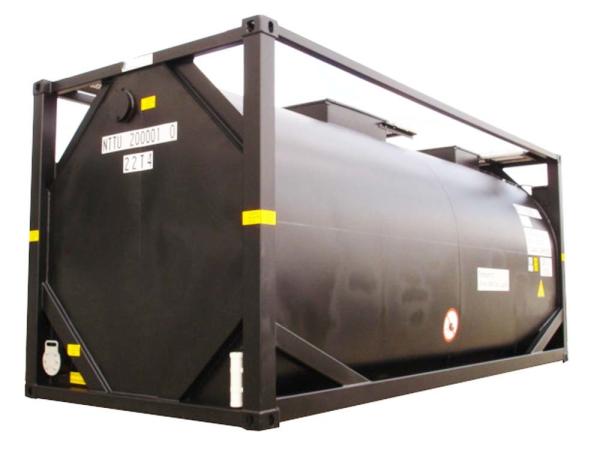

Product pictures:


20000-25000 Liters Water Tank Container T3 Asphalt ISO Tank Container

Product details:
20000-25000 Liters Water Tank Container T3 Asphalt ISO Tank Container


FAQ:

1.Q: What is the MOQ?

A: One unit is OK, please contact for details.

2.Q: Delivery time?

A: Generally 90 to 120 days, sometimes we have stock. Please contact for details.

3.Q: What certification do you have?

A: We are authorized by CCS, LR, BV.

4.Q: What documents do you offer?

A: We offer product quality certification issued by the manufacture, tank drawing, GA drawing, operation instructions and calculation sheet etc for each tank, ceritificate of shipping, such as LR, CCS, BV inspection.

6.Q: Specific technical service issues for other classes.
A: Please contact us, we will provide professional and detailed answers.
