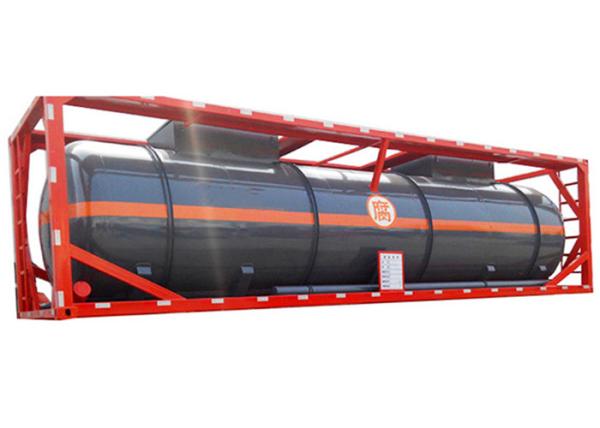

CCS ISO Shipping Container Tanks 40FT Bulk Liquid Container For Fuel Oil Chemical
CCS ISO Shipping Container Tanks 40FT Bulk Liquid Container For Fuel Oil Chemical
CCS ISO Shipping Container Tanks 40FT Bulk Liquid Container For Fuel Oil Chemical
CCS ISO Shipping Container Tanks 40FT Bulk Liquid Container For Fuel Oil Chemical
Specifications
Brand Name :
LSXC
Model Number :
LSX
Certification :
CCS,LR,BV,ISO
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 unit per month
Delivery Time :
30 working days
Packaging Details :
Without packaging or according to customer requirements
Frame Size :
20/40 ft
Maximum Gross Mass :
36000 kgs
Compartment :
Single Compartment
Hydro.Test Pressure(MPa) :
2.18
Walkway on The Top :
Anti-Skid Net Spread on Both Side
Warranty :
1 Year
Strengthen Ribbers :
Strengthen Ribbers
Leakage Test Pressure(MPa) :
1.38
Description
20FT/40FT ISO Shipping Tank Contanier water fuel oil chemical Liquid Tank Container
Product description:

1. Inner layer - made of 6 or 8 mm thick Q235-B steel plate, compared with ordinary 5 mm thick single-layer tank, the strength is greatly improved;


2. Outer layer - tempered glass fiber thickness of 4.0mm or more, good compressive and seismic resistance. It has strong corrosion resistance and corrosion resistance.


3. Unique technology is adopted between the inner and outer layers to make it reach a gap of 0.1-1mm, so as to eliminate hidden dangers from the root.


4. Leak detector 24 hours to monitor, to prevent leakage caused by security risks.

Product parameters:
External Dimension 6058 x 2438 x 2591 mm
Tare Weight 3510 kg (± 3%)
M. G. W 36000 kgs
Nominal Capacity 25000 litre (±0.75%)
Design Temperature -40 to +130 °C
Pressure Working 4.0 bar
Test 6.0 bar
Material Tank (Shell & Ends) SANS 50028-7 Type 1.4402/1.4404 (C<0.03%)
Frame SPA-H or equivalent
Insulation Shell Rockwool (50kg/m3) 50mm thick on aluminium foil.
Ends Glasswool (16kg/m3) thickness to suit on aluminium foil.
Design Code ASME VIII DIV. 1
Approval IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR / Customs, UIC, ISO 1496/3

Product details:

CCS ISO Shipping Container Tanks 40FT Bulk Liquid Container For Fuel Oil Chemical


Advantages:

1. Factory direct exporting, with high quality and lower price.

2. We are a manufacturer in China, with 730,000 square meters of factory and more than 30,000 units annual output.

3. Excellent after-sale service.

FAQ:

Q: What kind of Payment can you accept?
A: T / T and L/C is all right to us.


Q: Does your iso tank container meet with international requirement?
A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.


Q: How long will it takes to ship?
A: Around 15-25 working days.

Q: What kind of Payment can you accept?

A: T / T and L/C is all right to us.

Q: Does your iso tank container meet with international requirement?

A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.

Q: How long will it takes to ship?

A: Around 15-25 working days.
