20FT ISO Liquid Tank Container 22000 L Liquid Transport Containers
20FT ISO Liquid Tank Container 22000 L Liquid Transport Containers
20FT ISO Liquid Tank Container 22000 L Liquid Transport Containers
20FT ISO Liquid Tank Container 22000 L Liquid Transport Containers
20FT ISO Liquid Tank Container 22000 L Liquid Transport Containers
20FT ISO Liquid Tank Container 22000 L Liquid Transport Containers
20FT ISO Liquid Tank Container 22000 L Liquid Transport Containers
20FT ISO Liquid Tank Container 22000 L Liquid Transport Containers
Specifications
Brand Name :
LSXC
Model Number :
LSX
Certification :
CCS,LR,BV,ISO
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 unit per month
Delivery Time :
30 working days
Packaging Details :
Without packaging or according to customer requirements
Frame Size :
20 ft
Nominal Capacity :
22000L
Color :
Customized
Max gross weight :
26000 kg
Transportation/Storage material :
Asphalt
Tare weight :
4.85tons
Working Pressure :
0.9bar
Radiographic Inspection :
100% X-RAY
Description
20 FT ISO Liquid Tank Container 22000 L Heating Bulk Bitumen Tank Container
Product description:

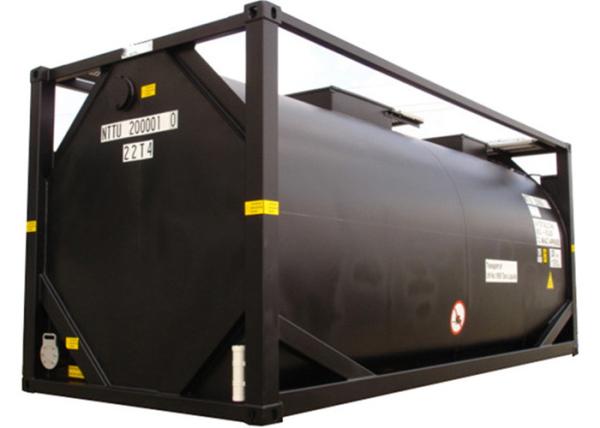

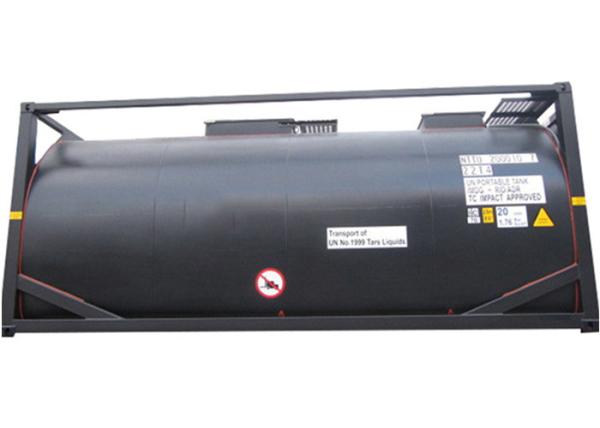

Bitumen container is a special container for transporting liquid goods such as food, medicine and chemical products.The structure is a liquid tank fixed in a metal frame.It consists of two parts: the tank body and the box body frame.

The cargo is loaded into the loading hole of the top of the tank, and when the cargo is discharged, the cargo hole is discharged or sucked out from the top.The frame is made of rectangular steel, with high quality and light intensity. It is suitable for road, road and railway asphalt transportation.

Product parameters:

Outer Dimension

 Length(mm) 6058mm
Width(mm) 2438mm
Height(mm) 2591mm
Transportation/Storage material Asphalt
Max gross weight 26000 kg
Tare weight 4.85tons
Payload 21000 kg
Nominal Capacity 22000L
UN Code. 1999
Tank Guide T3
Design Standards IMDG-CODE. GB150-98 ASMI-1 JB/T4781-2005
Recognized Register CCS,Basis: IMDG. CSC. TIR. UIC. RID.,ADR/IMO/ISO(meet Shipping requirement)
Tank Type 20FT
Tank Shape Column Shape, Horizontal
Design temperature -40 ~ +130 ºC
Design pressure 1.75bar
Design temperature -40ºC~230ºC
Working Pressure 0.9bar
Working temperature 230ºC
Test pressure 2.6Bar, Hydraulic pressure test
Corrosion Degree 0
Gastight Test Pressure 1.2bar
Vacuum Test Pressure 0.21Bar
Welding Joint Efficiency 1.0
Radiographic Inspection 100% X-RAY
Tank Materials GBQ345B, High quality mild steel
Thickness (mm) 5.0
End Enclosure (mm) 5.0
Washplate(mm) 4mm, 2 compartments 1 bin

Product details:

20FT ISO Liquid Tank Container 22000 L Liquid Transport Containers


Advantages:

1. Factory direct exporting, with high quality and lower price.

2. We are a professional supplier with advanced equipment and high efficiency. The delivery date can meet the requirements of customers.

3. Our production technology has a number of patents, and our production technology ranks among the best in China. We pay attention to every detail of product, we pursue to make the customer have a good experience.

FAQ:

Q: What kind of Payment can you accept?

A: T / T and L/C is all right to us.

Q: Does your iso tank container meet with international requirement?

A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.

Q: How long will it takes to ship?

A: Around 15-25 working days.

Q: How about the Color , Specific configuration things?

A: It's up to you , most of them are optional and can be changed by your needs.
