Road special asphalt tank container 20 feet/40 feet T3 Un portable asphalt insulated asphalt tank container for sale
40FT Liquid Tank Container
Our products are suitable for transportation and storage of asphalt, emulsified asphalt,
modified asphalt, powder metallurgy solution and heavy oil. The flue heating asphalt
tank has a high quality insulated housing with a diesel burner and flue heating tube.
asphalt tank container:
1. Asphalt ISO tank container mainly used for transportation and storage of asphalt
products, widely used in asphalt factory & Road Bureau as well as Shipping Company.
2. Asphalt ISO tank container is a pressure vessel mounted in a frame. Frame dimensions
comply with the recommendations of the International Standards Organization (ISO).
The unit is designed and constructed in accordance with strict international codes for
the worldwide carriage of bulk liquids on land, rail and sea.
parameter:
product Overview | |||
product name | 40-foot container asphalt tank with insulation | model | JSXT |
Transport medium | asphalt | Volume | 52 CBM |
Dimensions (mm) | 12192*2438*2891 | Tank size (mm) | Outside: 11900*2210*2390 Inside: 11500*2110*2290 |
Weight (kg) | 10000 | Load | 50000 |
Production cycle | 30 | Warranty/Certificate | have |
Product parameters (main configuration) | |||
Item | Specification | Remark | |
Tank material | Q235/5.0mm | ||
Beam material | Q235B | ||
shape | Rectangular | ||
Load quality | 50000 | ||
Curb weight (kg) | 10000 | ||
Total mass | 60000 | ||
Head thickness | 6.0mm | ||
Corrugated board | 1.8mm | The outside of the tank is sealed with corrugated board | |
Tank thickness | 5.0mm | ||
Design pressure (Mpa) | 0.175 | ||
Design temperature (℃) | Minus 40 degrees to 230 degrees | ||
Working pressure (Mpa) | 0.09 | ||
Working temperature (℃) | 230 degrees | ||
Test pressure (Mpa) | 0.26 | ||
Corrosion | 0 | ||
Airtight test pressure (Mpa) | 0.12 | ||
Vacuum test pressure (Mpa) | 0.021 | ||
Welding joint coefficient | 1 | ||
Radiographic inspection | 100% X-RAY | ||
Manhole | 2/DN500 | ||
Discharge valve | 1/DN80 | Stainless steel material | |
Wave breaker | 5 yuan | ||
Heating tube (mm) | Ø60*3.5 | ||
Heating pipe flange interface | DN50 | ||
Asphalt discharge valve | DN80 | Stainless steel material | |
Quick coupling | DN80 | ||
Ladder guardrail (mm) | have | ||
colour | According to user requirements | ||
Item | Specification | Remark | |
Insulation material and thickness | Rock wool/100mm | ||
Level gauge, thermometer | one of each | ||
Outer skin material and thickness | Cold rolled plate/1.2mm | ||
Remarks: Install two manhole assemblies, two breathing valves, a 4-inch manual butterfly valve at the bottom of the tank; with level gauge, thermometer, double-layer, square box; container frame longitudinal beams and beams must be whole, not Use spliced. |
We can provide you with a complete set of service from quota, design, manufacture and installation,
according to your requirements we can design by your plan, or manufacture by your drawing,
guarantees inner quality and safety, good looking appearance and function by introducing
international advanced large-sized equipment of pulse plasma arc welder and auto polishing
machines and cooperating with international famous finished equipment making company.
More detailed information will available on your requirement.
we all have mature solutions at any time.

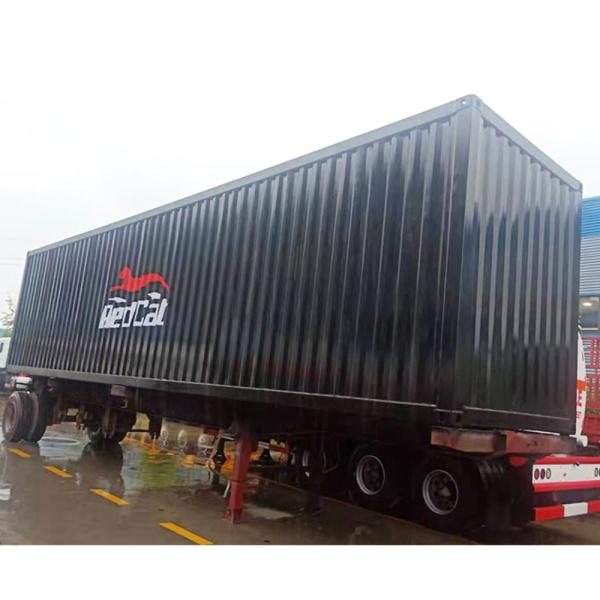

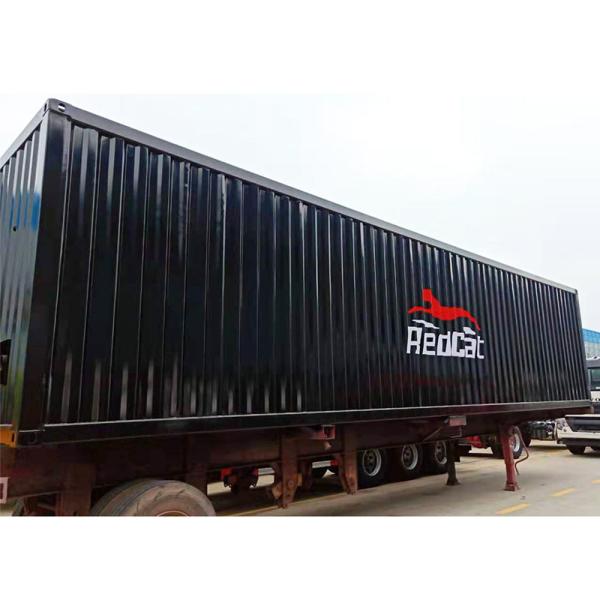

Product pictures:
Product details:
Certificate:
Factory Tour:
FAQ:
Q: How to ensure your quality of tank container?
A:Our ISO tank container approvals of main classification societies like ABS,CCS,GL,BV
and also in accordance with IMDG, RID/ADR, ASME VII DIV2, CFR 48, USDOT (BYSP),
TIR, UIC, CSC, TC, UKDFT, FRA
Q:What's your MOQ?
A:1.no matter which model 1set is our MOQ;
Q:What kind of tank container can you provide ?
A:We can manufacture fuel steel tank container, liquid food stainless steel tank container,
LPG tank container, LNG tank container and bitumen tank container.
Q:Can a tank container be manufactured to my specifications?
A: we make a range of tanks designed for numerous applications. However, tanks can
be manufactured and modified to meet individual requirements.
Q:What is your producing time?
A:6,normally is about 25days,and it depends on your quantity
