Specifications
Brand Name :
sinotruk howo
Model Number :
LSXC20220401
Certification :
CCC ISO DOT
Place of Origin :
China
MOQ :
1
Price :
19200USD
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
500
Delivery Time :
15 work days
Packaging Details :
The body is waxed all over ,Prevent sea salt corrosion
Fuel Type :
Diesel
Capacity (Load) :
31 - 40T
Engine :
WD615.69
Cargo Tank Dimension :
5400x2300x1500
Horsepower :
351 - 450hp
Tire :
12.00R20 12.00R22.5
Driving type :
6x4 or 8X4
Number of tires :
10 tires
Description

USED TRUCK 6x4 371hp HOWO Used Truck 2017 Cheap Used Dump Sinotruck for Sale

Product introduction:

HOWO dump truck refers to a vehicle that unloads goods by hydraulic or mechanical lifting. It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and power take-off device. Since the loading carriage can automatically tip over to a certain angle for unloading, it greatly saves unloading time and labor,shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used special transportation vehicle.Dump Truck Howo Used Tipper For 6*4 371hp 375hp 10 Wheels Red White SINOTRUK

Sand Stone Tipping Truck:

Headlight structure

Crystal lamp shell & Strong brightness & Strong penetration & High life

Full control of the driving environment

Rearview mirror +Road mirror + Down view mirror

The Widest large curved windshield in China

Wide view ,no blind spots, more secure

Product parameters:

Specification
Vehicle series HOWO-7 6x4 Tipper
Cab HW76
Engine Model Euro 3:WD615.95C/WD615.96C
Power(Ps/rpm) 249/1900;279/2000
Maximum torque(Nm/rpm) 1490/1200-1500;1590/1200-1500
Displacement(L) 9.726
Comprehensive fuel consumption 23.7
L/ 100km
50km / h no load constant speed fuel consumption 17.2
Transmission SINOTRUK HW series 10 gears Transmission,Transmission with main and auxiliary transmission structure, , main transmission with double counter shaft ,auxiliary transmission with planetary reduction. with PTOWD615.95C,WD615.96C standard HW19710
Clutch Φ430 diaphragm spring Clutch,Hydraulic control air assisted. WD615.95Cstandard430B ,WD615.96Cstandard430A
Front axle HF9 drum-type, rated load of 9t
Rear axle HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73, 4.8
Steering system ZF8098 steering gear, ZF steering oil pump, system pressure 18MPa
Suspension Steer Axle front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer
Drive Axle front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer.
Braking system Service brake dual-circuit air pressure brake
Parking Brake spring storage energy without air
Auxiliary brake Engine exhaust braking. standard Engine EVB,ABS, optional auto clearance adjusting arm.
Electric system Voltage 24V
Generator 2240W
Batteries 12V/165Ah,2 pieces
Starter Power 24V,7.5kW
Wheels & Tyres Tyres 12.00R20
Optional 12.00R24,12.00-24
Fuel Tank Capacity 300 Liter
Weights (kg) Curb weight(vehicle/chassis) 12170/8630;12290/8660;12450/8690;12270/8710
Gross Vehicle Weight 25000
Rated load 12420~12700
Vehicle Dimensions (mm) Overall length x Overall width x Overall height (7545~8545)×2496×3170/3450
Wheelbase (3225~3825)+1350
Front/rear overhang(vehicle/chassis) 1500/(1470/715);1500/(1670/740);1500/(1870/900)
Wheel track of front axle 2041
Wheel track of rear axle 1830/1850
Dump box Dimensions 5600×2500×1500mm()
Performance Maximum speed(km/h) 79/83
Maximum gradeability(%) 20
Minimum turning diameter(m) 15/16/17

What is the details of our dump truck?

-Truck body:from 15cbm~20cbm, sand and gravels transportation normal type dump body, big stones and rocks transportation with rock type dump body.

--Options for tires:12.00-20 bias tire, 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.

--Standard color: White, Red, Yellow (Other color is optional)

--Dump body:5400x2300x1500mm, Steel thickness (mm) :Bottom 8 , front6mm,side 6

--Hydraulic lifting system:Middle lifting ( front lifting is optional) We all used original engine,new cabin interior, new seat,new dashboard,air

conditioner is also very good condition.

Before delivery to our customers, every used trucks will be checked strictlly,

the beginning " used trucks optimum selection, key components detection

and replacement ", the final " all-round debugging and comprehensive

inspection "to ensure before delivery to customer, every used trucks is

up to high quality and good performance.

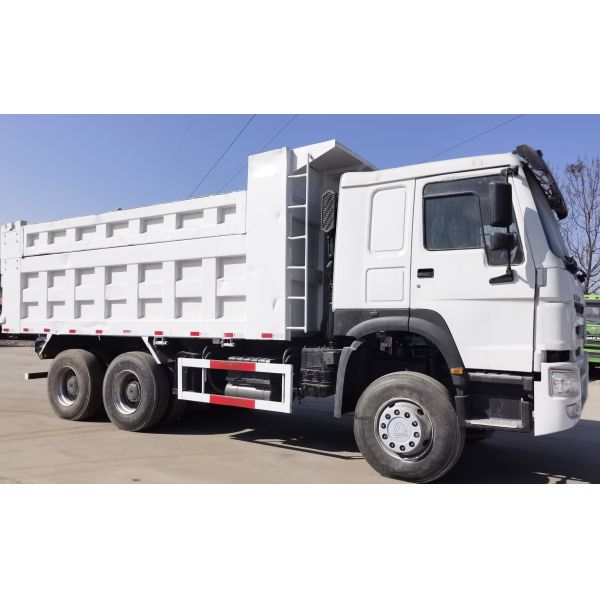

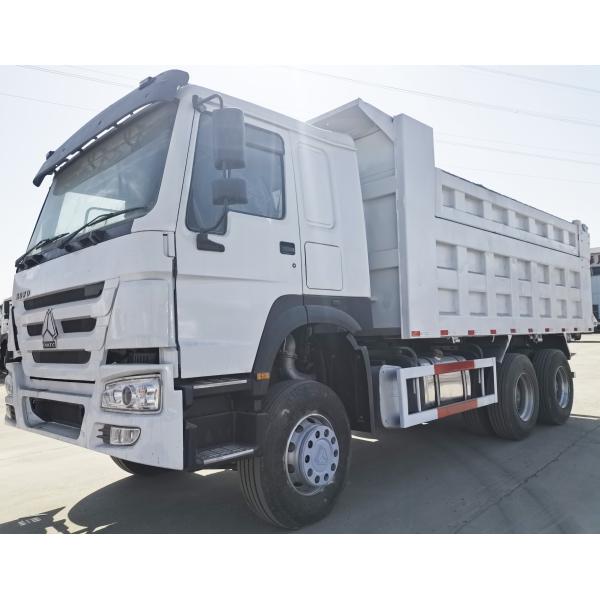

Product pictures:

Sinotruk HOWO Used Tri Axle Dump Trucks 6x4  Used Tipper Trucks 375HP

Sinotruk HOWO Used Tri Axle Dump Trucks 6x4  Used Tipper Trucks 375HP

Our advantage:

1. Get the new products, and meet your processing requirements.

2. Our quality products help you to win money and earn much time.

3. We always do our best to save cost for you and ensure the quality goods.

4. Our rich-experience technical teams are standing by all the time.

5. You can know the advance overseas technology from our products. Which bring you more

competitive advantages.

Factory Tour:

Sinotruk HOWO Used Tri Axle Dump Trucks 6x4  Used Tipper Trucks 375HP

FAQ:

1. What are our strengths.
a. Near China National Heavy Duty Truck Group;
b. 16 years of production and trade experience;
c. Good quality and good after-sales service;
d. All kinds of trucks and trailers give customers the best advice and cost performance
b. Always conduct final inspection before shipment;
c. Each process is strictly inspected.

2. What can you buy from us?
Sinotruk howo howoA7 locomotive, heavy-duty gravel/mining/mud dump truck, custom
low-bed semi-trailer, oil tanker for bulk cement
semi-trailer, milk truck

3. Why should you buy from us instead of other suppliers?
Our company has advanced production and processing equipment to ensure product
quality! We transport trailers by container, pallet, bulk or ro-ro. Our factory has long-term cooperation with shipping agents and can provide you with the lowest freight.
