Specifications
Brand Name :
LISHIIXN
Model Number :
LSXC20220401
Certification :
CCC ISO DOT
Place of Origin :
China
MOQ :
1/unit
Price :
9760USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 unit
Delivery Time :
30 work days
Size :
12500*2500*1550mm
Function :
Transport 20ft 40ft Container
King pin :
90#/50#
Tire :
12R22.5
Axle :
13 Ton Fuwa Brand
Curb quality :
67 tons
Bottom plate :
Q235
Trailer Axle :
BPW / FUWA
Condition :
Brand-new/ Customerization Available
Max Payload :
90T
Description

Hot Selling 2 Axis 3 Axis 4 Axis Flatbed Cargo Flat Deck Semi Truck Trailer

Product Introduction:

The flatbed trailer truck is mainly used for transporting heavy, over sized, wide and indelicate goods such as machinery, building supplies or equipment. Generally speaking, flatbed trailer can carry almost anything that can be stacked or strapped down.

They are also used to carry 20, 30, 40, 45, foot containers, thus coming with container locks. The different containers are secured using container locks ready for transportation. They are primarily used for the tra
nsportation of bulk cargo. Flatbed trailer is designed for 20, 30, 40 foot containers with 2,3, or 4 axles accordingly. As always, we are also able to design flatbed trailers to satisfy our customers needs.

Suspension&Leaf Spring

We could provide mechanical suspension and air suspension.
According to the customer's road conditions,we could thicken the suspension.It makes the semi trailer more durable.

Thick suspension and leaf springs can adapt to harsh road conditions.

Tire

Tire types include wired tire,steel wire tire and vacuum tire.You can choose different tires include triangle,Linglong,Shuangqian and other domestic first line brands in China.

Axle

Famous brands like BPW, FUWA are available.

Chassis

In order to prevent the bottom plate from sagging, the bottom plate will be reinforced.

Chassis adopts special chassis produced by various chassis manufacturers, with advanced technology and reliable performance.

parameter:

Specification
Name flatbed semi trailer 3 axle 40 ton 40ft
Overall dimension 12500 *2500 * 1550mm
Loading capacity 40T
Axle brand and number 13TFuwa Brand, 3units
Wheel base(mm) 6880+1310+1310
Kingpin 50# or 90#
Steel Spring 10/10/10 leaf spring suspension
The material of Main beam

The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,

middle plate is 8mm.

Tyre and quantity 12R22.5 12pieces
Landing gear 28T, double speed operation
Platform plate 3mm Checkered steel plate
Brake system Dual Line braking system ,none ABS.
Brake air chamber Four double and two single chamber

Electrical system

24V,7 pin socket,One set 6-core standard Cable
Light Tail lamp with turn signal, brake light & reflector, side lamp etc
Tool box 1 set
Spare tire carrier 2 sets
Painting Optional
Packing Polish with wax before shipping

Why Choose Us:


1. LISHIXINTrailer Based on the customer's country roads situation, transport goods and loading

weight requirment,provide semi-trailer solution.

2.LISHIXINhave Experienced sales and engineer support every requirment.

3. Customer's design is available for certain products(OEM);

4. Spare parts for all types of semi-trailer with discount price.

5. LISHIIXN have BV SGS CCC ISO WMI Certificate of conformity for the semi-trailer.

6. English operation Manual.

7. LISHIXIN offer free spare parts for every customer, like speeders,spanner etc.

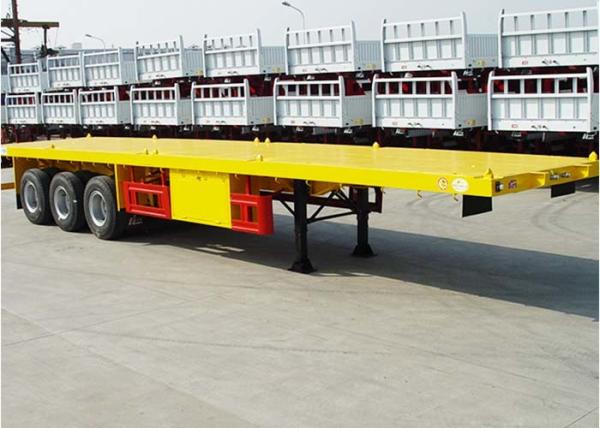

Product display:

4 Axis 1550mm Flatbed Truck Trailer ISO 40 Foot Flat Bed  Q235

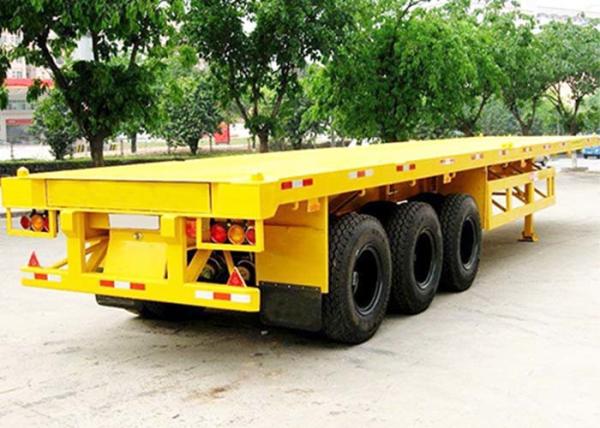

details:

4 Axis 1550mm Flatbed Truck Trailer ISO 40 Foot Flat Bed  Q235

factory:

4 Axis 1550mm Flatbed Truck Trailer ISO 40 Foot Flat Bed  Q235

FAQ:

Q.What's your MOQ?
A.One unit

Q.Can you satisfy my special requirement?
A.Definitely!We can make the trailers or trucks based on your requirement.

Q.What's your payment term?
A.We accept both T/T and L/C

Q.How to trust us?
A.The good faith management is our philosophy,and you are welcome to visit our company at any time.

Q.How about your product quality?
A.Quality always comes first.We have advanced production technology and management team.We always attach great importance to quality controlling from the very beginning,and every unit of product undergoes a strict inspection process.
