ISO 12.00R22.5 Trailer Side Wall 13Ton Fuwa 3 Axles 13Ton
ISO 12.00R22.5 Trailer Side Wall 13Ton Fuwa 3 Axles 13Ton
ISO 12.00R22.5 Trailer Side Wall 13Ton Fuwa 3 Axles 13Ton
ISO 12.00R22.5 Trailer Side Wall 13Ton Fuwa 3 Axles 13Ton
ISO 12.00R22.5 Trailer Side Wall 13Ton Fuwa 3 Axles 13Ton
ISO 12.00R22.5 Trailer Side Wall 13Ton Fuwa 3 Axles 13Ton
ISO 12.00R22.5 Trailer Side Wall 13Ton Fuwa 3 Axles 13Ton
ISO 12.00R22.5 Trailer Side Wall 13Ton Fuwa 3 Axles 13Ton
Specifications
Brand Name :
LSXC
Model Number :
LSX
Certification :
CCC ISO DOT
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 unit per month
Delivery Time :
30 working days
Packaging Details :
Without packaging or according to customer requirements
Gross Weight :
About 7.5 tons
Outer side dimension(mm) :
13000 × 2500 × 2850
Loading Capacity (T) :
≤ 50T
Condition :
New
Voltage :
24V
AXLES :
13 T /PER, 3axles FUWA Brand,
Tire :
12.00R22.5/ 315 80R22.5 11.00R20
Rim :
9.00-22.5 8.5-20
Description

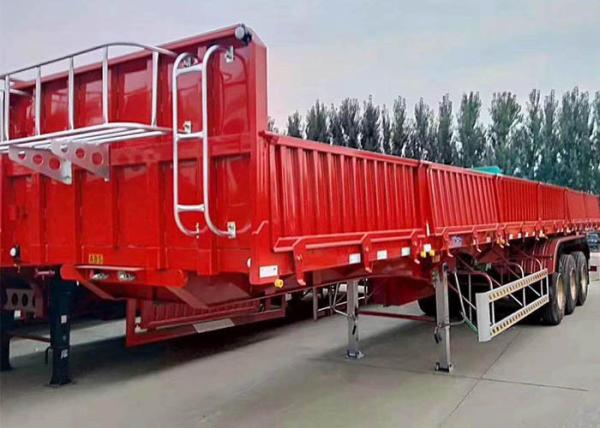

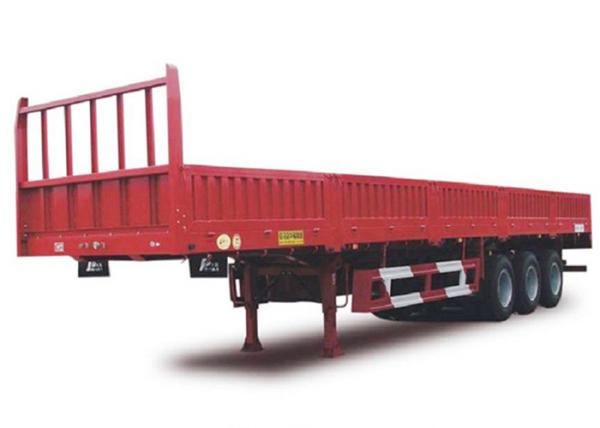

Side Wall Semi Trailer Truck Trailer Steel 13Ton Fuwa Brand Mechanical Suspension
Side Wall Semi Trailer Of Product Description:

The side wall semi-trailer is installed with fences on the working platform. With wide usage, it’s basically used for medium and long-distance transportation of medium and heavy goods as well as bulk cargo. Our company can also install additional container locks or detachable columns according to customers’ special requirements, so it can be used for container transportation or timber transportation. With strong applicability, it is the first choice for medium and long distance transportation.

This series of semi-trailers are designed with cross-beam structure in the main frame, and for the longitudinal beam, it’s designed as flat bed or goose-neck. The height of the middle plate (manganese plate) is from 400mm to 550mm. The longitudinal beam is welded by automatic submerged welding. The frame is shot blasted. The beam penetrates the longitudinal beam and is welded as a whole.

Side Wall Semi Trailer Of Product Parameters:
Gross Weight
About 7.5 tons
Outer side dimension(mm)
13000 × 2500 × 2850
Loading Capacity (Ton)
≤ 50T
AXLES
13 T /PER, 3axles FUWA Brand,
Tire
12.00R22.5, 13pieces Triangle or double coin brand
Rim
9.00-22.5, 13pieces China Brand
Suspension
Mechanical suspension (America Type)
Spring leaf
90(W)mm*13(Thickness)mm *10pices, heavy duty type
King pin
JOST brand 2.0 or 3.5 inch bolts type
Support leg
28T or JOST brand E100
Main Beam
Height: 500mm, upper plate is 14mm, middle plate is 8mm,
down plate is 16mm ; Material is Q345B Steel .
Plateform
3mm diamond plate steel
Side beam
16# channel steel
Brake chamber
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tank
Fuel tank
1000L
Hooks
With
Twist Locks
12 pieces (Lifting type)
Valve
WABCO valve
ABS
Without
Light
LED light
Voltage
24V
Receptacle
7 ways (7 wire harness)
Tool box
One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking
bar)
Painting
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms
Transport by RORO or 45FT container.


Side Wall Semi Trailer Of Details:

ISO 12.00R22.5 Trailer Side Wall 13Ton Fuwa 3 Axles 13Ton

Side Wall Semi Trailer Of Our Advantages:

According to client's speical requests for trailer, we can design full set drawings for clients.

1. The material of trailer frames is high quality and strength steel that can extend the using life of trailer.

2. It has been designed appropriately according with clients requirements, such as dimension, payload, main beam and so on.

3. Brake system and Electric system are well-known brand in the world.

4. Shot blasting twice and particular coat painting can guarantee the quality of trailer surface.

5. All componenet/configuration (OEM parts) can be arranged based on clients detailed requirements and meet clients need.

FAQ:

Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have passed ISO and CE certificate and our products have been exported to over 20 countries.

Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply
higher configuration.

Q: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and management term.

Q: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.

Q: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and trailers.

Q: How to guarantee customers get the goods smoothly after they pay ?
A: Don’t worry, dear. we joined the trade assurance. you can place the order by trade

Q: Could you special design and produce for you?
Sure, we have all kinds of professional engineers,Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.


Q: Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
