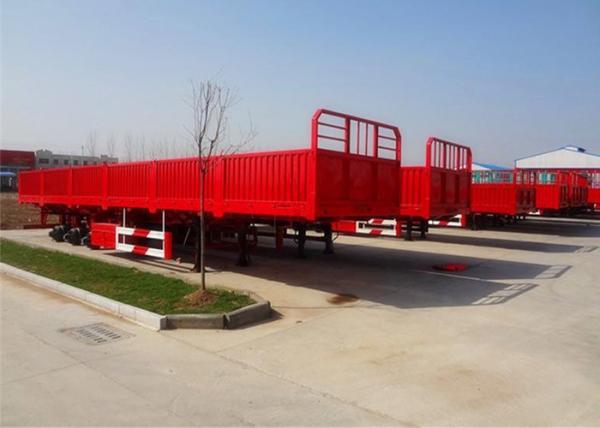

The side wall semi-trailer is installed with fences on the working platform. With wide usage, it’s basically used for medium and long-distance transportation of medium and heavy goods as well as bulk cargo. Our company can also install additional container locks or detachable columns according to customers’ special requirements, so it can be used for container transportation or timber transportation. With strong applicability, it is the first choice for medium and long distance transportation.
This series of semi-trailers are designed with cross-beam structure in the main frame, and for the longitudinal beam, it’s designed as flat bed or goose-neck. The height of the middle plate (manganese plate) is from 400mm to 550mm. The longitudinal beam is welded by automatic submerged welding. The frame is shot blasted. The beam penetrates the longitudinal beam and is welded as a whole.
Axle | 13 T/16T, FUWA /BPW /Huajing Brand |
Rim | 9.00-22.5 9.75-22.5(special for export market ) |
Tire | 12.00R22.5 315/80R22.5 (special for export market ) |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) (special for export market ) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (special for export market ) |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support Leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main Beam | Height: 500mm,.upper plate is 14mm, middle plate is 8mm, down plate is16mm(thickness),material is Q345B steel. |
Side Beam | 16mm or 18mm channel steel (Material is Q235steel). |
Brake Chamber | T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks |
ABS | Optional |
Twist Locks | Optional;Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7ways(7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner, and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive paint, 2 coats of final paint |
Shipping Terms | By bulk cargo carrier, RORO or 40HQ container. |
Side Wall Semi Trailer Of Details:
Side Wall Semi Trailer Of Our Advantages:
FAQ:
Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have passed ISO and CE certificate and our products have been exported to over 20 countries.
Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply
higher configuration.
Q: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and management term.
Q: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and trailers.
Q: our raw materials?
A: the ISO system, an international standard for all materials, has certified factories and parts factories.
Q: Our advantages?
A: We have a rich design, production and service team. We have our own customs broker and shipping company that we have cooperated with for many years.
