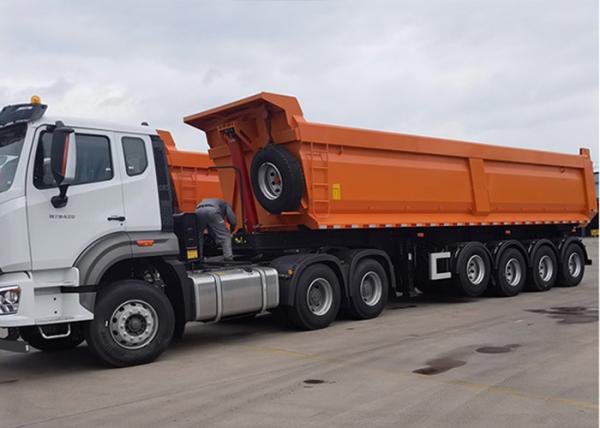

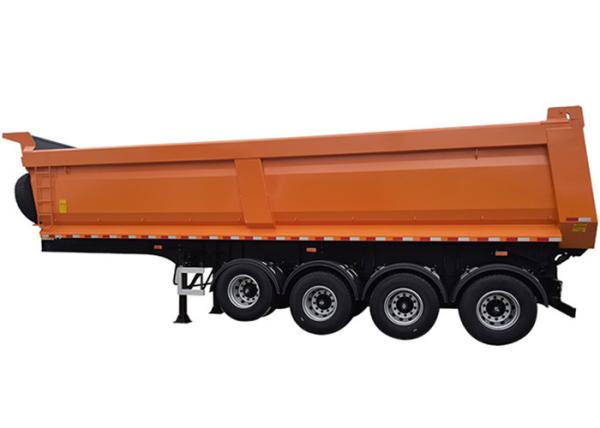

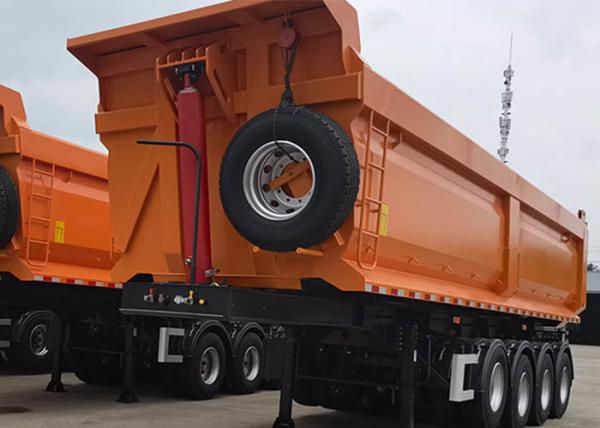

U Shape Rear Tipper Truck Trailer 4 Axle 50 Ton 45 Cubic
U Shape Rear Tipper Truck Trailer 4 Axle 50 Ton 45 Cubic
U Shape Rear Tipper Truck Trailer 4 Axle 50 Ton 45 Cubic
U Shape Rear Tipper Truck Trailer 4 Axle 50 Ton 45 Cubic
U Shape Rear Tipper Truck Trailer 4 Axle 50 Ton 45 Cubic
U Shape Rear Tipper Truck Trailer 4 Axle 50 Ton 45 Cubic
U Shape Rear Tipper Truck Trailer 4 Axle 50 Ton 45 Cubic
U Shape Rear Tipper Truck Trailer 4 Axle 50 Ton 45 Cubic
Specifications
Brand Name :
Sinotruk HOWO
Model Number :
LSX
Certification :
CCC ISO DOT
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 unit per month
Delivery Time :
15 work days
Packaging Details :
No packaging or according to customer requirements
Total height :
3000mm -3500mm
Height of breast board :
1800mm-2500mm
Cylinder :
Haiwo brand
Tire Number :
16
TypeTare weight :
4tons to 12 tons
Rims :
8.5-20, 9.0-20
Packing :
Polish with wax before shipping
Color :
All colors can be customized
Description

U Shape Rear Tipper Truck Trailer 4 Axle 50 to 80ton 45 Cubic

Tipper Truck Tralier Of Product description:

U Shape Rear Tipper Truck Trailer 4 Axle 50 Ton 45 Cubic

1. Plenty types for your choice: skeleton type / flatbed type / U type.


2.Axle 2 / 3 / 4 / 6 available for different road condition.

3.Straight beam or goosneck type optional.


4.Container twist lock available.

5.Rear dump, Fast unloading, clean unloading.

6.Different length optional. High fence up to 2000mm.

7. Multi ways of door opening.

Tipper Truck Tralier Of Product parameters:

Total height 3000mm -3500mm
Height of breast board 1800mm-2500mm
Dimensions(LxWxH) 6500 to 17500mm x 2500mm-2550 x 1500mm-4000mm
Cylinder Haiwo brand
Axle and Brand 13T/16T/18T Leitewei , (2/4 axle,fuhua/BPW to choose)
Tire brand 12r22.5 (Chengshan, Zhaoyang and other 3-Pack tires)
Axle spacing 1310mm
Tare weight 4tons to 12 tons
Rims 8.5-20, 9.0-20
Brake System Double line pneumatic braking system with WABCO emergency relay valve
Front axle lifting 1/2/3/4 axle Optional
Plate spring Ten pieces 13mm(widen)
Suspension System Heavy machinery suspension / air suspension
Main Beam Height 500mm Q345 carbon steel,thickness 10mm(height 530 550 580 Optional)
Up and down the wing Upper16mm,lower18mm ,Middle web10mm(Optional)
Kingpin 2' or 3.5' interchangeable,(50.mm-90mm interchangeable)
Landing Gear 28 Tons ,Two speed manual (Yost or fuhua Can be choose)
Electrical System 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
Tool Box One tool box with a set of standard trailer tools
Spare Tyre Carrier One piece or two pieces
Packing Polish with wax before shipping
Color All colors can be customized

Tipper Truck Tralier Of Competitive Advantage:

1. with all kinds of truck model, which can fulfill your requirement.

2. the key parts adopt the world's top technology products.

3. based on strong technical support and top level technology make the trucks with high quality and more reliable.

4. it has higher safety and running efficiency.

5. excellent appearance of cabin, safety, reliable.

6. competitive price, cost-effective.

7. quick and efficient spare parts supply bring you more convenient.
8. fast delivery time, we can arrange production according to your needs exactly and Quickly.

11. professional import and export dealing procedure, make customs clearance more high efficiency.
Tipper Truck Tralier Of Details:
U Shape Rear Tipper Truck Trailer 4 Axle 50 Ton 45 Cubic

FAQ:
1. Are you a factory of vehicles ?
Sure. We are a notable factory in our local city.
2. Could you customize exactly according to my requirements?
Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
3. What kind of payment could be acceptable ?
Generally we accept T/T,L/C and westunion.
4. How about the MOQ ?
The Minimum Order Quantity will be 1 unit .
5. How about the delivery time ?
Generally the preparation need about 30 working days or even less. Buyers could inquiry on-line.
