1.5T Used Toyota 8FD15 7FD25N Japan Gasoline Forklift ​ 4Y Engine Natural gas High gantry all-terrain forklift

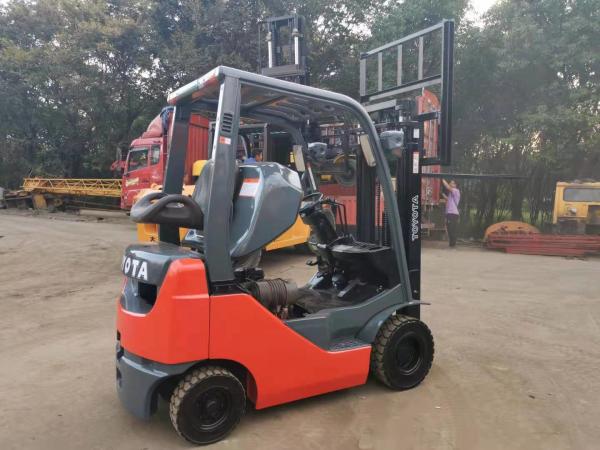

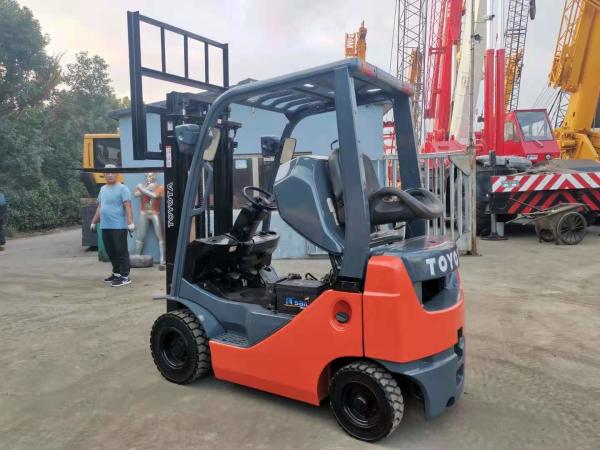

Toyota 8fd15 forklift has a rated load of 1500kg, a load center distance of 500mm, a length of 2285mm to the vertical plane of the fork, a full width of 1070mm, a top guard height of 2080mm and a turning radius (outside) of 1990mm.

The tail of internal combustion counterweight forklift is equipped with counterweight, which is usually called "counterweight". The balance weight is generally made of HT100 cast iron. Its main function is to balance the longitudinal overturning moment generated by the quality of goods during operation, so as to maintain the longitudinal stability of forklift. This paper mainly introduces the structural characteristics of counterweight.

Select and install

Generally speaking, the mass, centroid position and rear suspension of the counterweight are given by the overall layout of the whole vehicle. The selection of the mass of the counterweight mainly considers the full load stacking and the longitudinal stability of the forklift when driving at full load. The quality of counterweight directly affects the safety factor of front and back balance of forklift, and it is the main parameter to determine the safety factor of forklift. When the total mass g of the counterweight is determined, the installation dimension of the counterweight can be accurately determined according to the assembly form of the counterweight on the frame with the rear axle center as the reference. There are two inverted V-shaped suspension blocks on the outside of the upper part of the forklift tailstock, which can be fixed on by two bolts.

vent

Because heat balance is a very important parameter of forklift, poor heat dissipation performance is easy to cause high temperature of engine cooling water, which affects the performance of forklift. Therefore, the position of counterweight ventilation hole, air duct and air flow direction are particularly important. Generally speaking, the higher the opening of the vent, the larger it is, the better the heat dissipation; it is better to use the fillet transition between the vent and the radiator to facilitate the airflow guidance and improve the heat dissipation performance.

Parameter configuration of Toyota 8FD15N Forklift

Specifications

Dynamic System

Body size

Shanghai LONGHUA CONSTEUCTION MACHINERY Co., Ltd.

Spot sales of 5000 sets of used machinery and equipment, excavators, forklifts, bulldozer, cranes, loaders, graders, road rollers and other construction machinery.
Sales of excavator brands: Komatsu, Carter, Hitachi, Shengang, Doosan, Volvo, Hyundai, Kubota, Sany, Sumitomo, Kato, etc

Toyota 1.5t/2t/2.5t/3t/3.5t/4t/5t/3t/7t/10tons used internal combustion forklift 5F / 6F / 7F / 8FD30N gasoline forklift

Spot sale with side shift, middle cylinder, container forklift. The gantry is raised by 3 meters, 4 meters, 4.5 meters, 5 meters, 5.5 meters and 6 meters. used imported brand forklift
