Specifications
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
10 sets/month
Delivery Time :
15 days
Packaging Details :
Wooden Case
Product :
Extrusion Coating Lamination Line
Die Lip Width :
1650mm
Width of Product :
800-1500mm
Max Coating Speed :
236m/Min
Coat Thickness :
0.008-0.03mm-0.05
Screw Diameter :
100mm
Ratio of L/D :
30:1
Description

Second-Hand Double-Sided Automatic Plate Coating Laminating Machine

Descripition:

Use of hi-tech servo control, synchronization control, electric control, color code sensor on the version and other advanced technology. Equipment performance up to the advanced world level, solve the high-end packaging products, improve the grade of product packaging and security capability.

Main technical Datas:

Item UW-Z95-900 UW-Z100-1600 UW-Z120-2400 UW-Z150-3600
Die lip width 1000mm 1650mm 2500mm 3700mm
Width of product 200-850mm 800-1500mm 1000-2400mm 2000-3500mm
Max coating speed 236m/min 236m/min 130m/min 100m/min
coat thickness 0.008-0.03mm-0.05
Screw diameter 95mm 100mm 120mm 150mm
Ratio of L/D 30:1 30:1 30:1 30:1
Max. roll diameter of unwinding and winding 1100mm 1200mm 1200mm 1200mm
Overall sizes (L*W*H) 158000×7500×2300mm 16800×11000×2800mm 13300×13000×3200mm 14800×14000×3400mm
System installed capacity 130kw 150kw 260kw 300kw

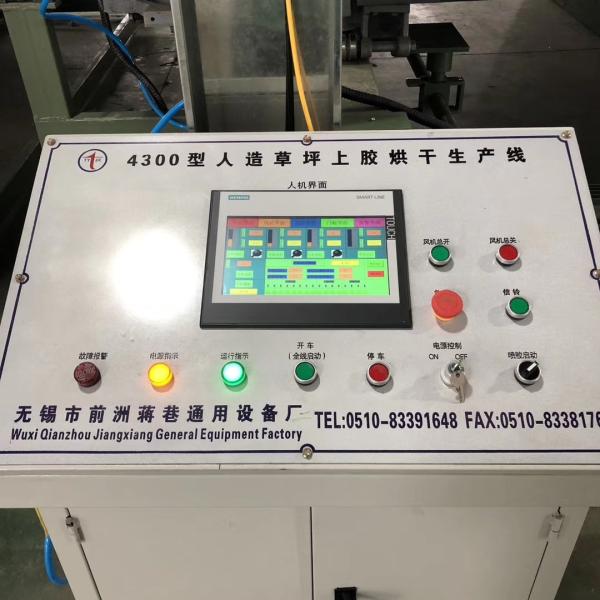

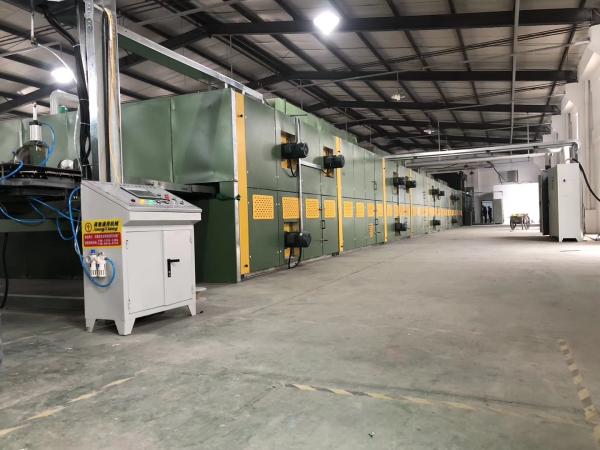

Photo:

Second Hand Double Sided Automatic Plate Coating Laminating MachineSecond Hand Double Sided Automatic Plate Coating Laminating MachineSecond Hand Double Sided Automatic Plate Coating Laminating MachineSecond Hand Double Sided Automatic Plate Coating Laminating MachineSecond Hand Double Sided Automatic Plate Coating Laminating Machine

FAQ:

1. How long will your engineer reach our factory?
Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)

2. How many days will you finish installing?
We will finish installation and training within 15 days.

3. What should we charge for your engineer?
You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.

4. Does your engineer understand English?
Our engineers understand a little English. All our engineers have more than five years machine installation experience.

5.How could you do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
