3-8mm Used Rope Spool Twisting Machine Twine Roll Winding Machine
3-8mm Used Rope Spool Twisting Machine Twine Roll Winding Machine
3-8mm Used Rope Spool Twisting Machine Twine Roll Winding Machine
3-8mm Used Rope Spool Twisting Machine Twine Roll Winding Machine
3-8mm Used Rope Spool Twisting Machine Twine Roll Winding Machine
3-8mm Used Rope Spool Twisting Machine Twine Roll Winding Machine
3-8mm Used Rope Spool Twisting Machine Twine Roll Winding Machine
3-8mm Used Rope Spool Twisting Machine Twine Roll Winding Machine
Specifications
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
10 sets/month
Delivery Time :
15 days
Packaging Details :
Wooden Case
Core Components :
PLC, Gearbox, Motor, Gear
Weight :
1260
Applicable Industries :
Manufacturing Plant
Voltage :
customize
Dimension(L*W*H) :
4.2*1.9*1.9m
Power (kW) :
4
Rope diameter :
3-8mm
Daily output :
0.2-0.4ton
Description

Used Rope Spool Twisting Machine Package Twine Roll Winding Machine Twisted Rope Making Machine

Descripition:

The machine can twist different size of HDPE monofilament, PP danline, Raffia, PP tape yarn, Polyester, Nylon, Cotton, Sisal, Jute yarn etc. to 3 or 4 strands rope, which is widely used in industry, agriculture, fishing field. The machine is equipped with length counter and door open automatic stop device.

Technical Parameters:

Model UW140
Quantity of spindle 12pcs/ group
Speed of spindle 2800-4000rpm
Dia. of traveler ring φ140*25.4mm
Sco pe of twist 55-600
Twisting direction Z or S
Nylon bobbin size φ123*208*19mm
Dia. of roller φ51mm

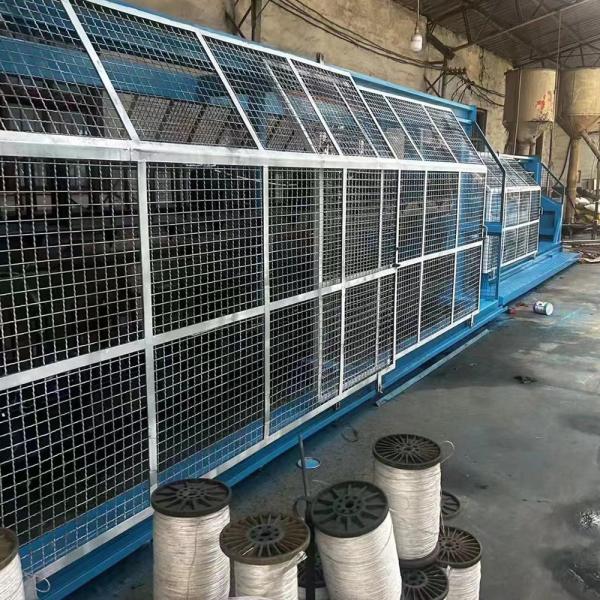

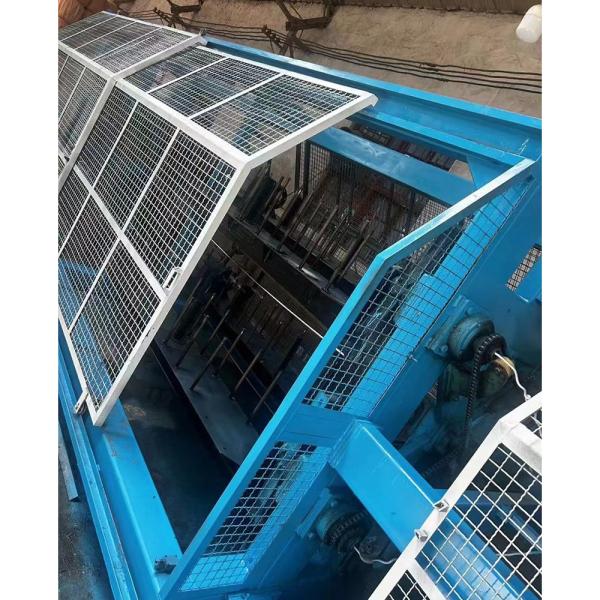

Photo:

3-8mm Used Rope Spool Twisting Machine Twine Roll Winding Machine3-8mm Used Rope Spool Twisting Machine Twine Roll Winding Machine3-8mm Used Rope Spool Twisting Machine Twine Roll Winding Machine3-8mm Used Rope Spool Twisting Machine Twine Roll Winding Machine

FAQ:

1. Does one machine can only produce one size?
Not exactly, it depends on the machine.

2. Do you have after sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed

3. How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.

4. What can you do if the machine broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.

5. Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.

6. You are trade company or factory?
We are Manufacturer.

7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.

8. Do you have overseas engineers?
Yes, we not only provide overseas engineers, but also provide technical training.
