Six Shuttle Loom Used Circular Loom Machine For Plastic Woven Bag
Six Shuttle Loom Used Circular Loom Machine For Plastic Woven Bag
Six Shuttle Loom Used Circular Loom Machine For Plastic Woven Bag
Six Shuttle Loom Used Circular Loom Machine For Plastic Woven Bag
Six Shuttle Loom Used Circular Loom Machine For Plastic Woven Bag
Six Shuttle Loom Used Circular Loom Machine For Plastic Woven Bag
Six Shuttle Loom Used Circular Loom Machine For Plastic Woven Bag
Six Shuttle Loom Used Circular Loom Machine For Plastic Woven Bag
Specifications
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
10 sets/month
Delivery Time :
15 days
Packaging Details :
Wooden case
Warping Type :
Direct warping
Year Of Manufacture :
Various years available
Maximum Fabric Width :
1.5 - 2.5 meters
Condition :
Used
Weft Insertion :
Shuttle or shuttleless
Number Of Shuttles :
4 - 8
Power Supply :
380V, 50Hz
Main Motor Power :
3 - 5 kW
Description

6 Shuttle Circular Loom Used Circular Loom Machine For Plastic Woven Bag From China Factory

Descripition:
Mesh bag circular loom is mainly used to produce cylindrical mesh bags for packaging vegetables, fruits and other agricultural products. The suitable raw material is PE or PP. 100% recycled materials can be used also. Usually weft yarn is flat yarn(tape) and warp yarn can be monofilament or flat yarn.

Advantages:
1. The structure design of the whole machine is novel and reasonable, the maintenance is convenient.
2. High speed, low noise , low friction, energy saving , high efficiency.
3. Adopting the interweaving technology, the weft is not easy to loosen, and it is not easy to stretch after filling with fruits and vegetables.
4. The loom is controlled by Inverter, and it will automatically stop if the weft are finished or the warp, weft yarn is cut off, machine also equip with a meter counter.
5. Intelligent system is used for lifting and winding of fabric, automatic tracking and synchronization.


Main technical Datas:

Working width,double flat 60-750mm
Number of shuttles per machine 6
weft density 10-24pcs/10cm
Speed 0-120RPM
Warp feeding Motor
Inner diameter of Bobbin 38mm
Bobbin length 230mm
Max. bobbin diameter 100mm
Number of Warp yarns 512pcs
Normal rating of main motor 2.2kw
lift motor power : 22N
winding motor power: 10kgs Torque motor
Total power 3Kw
Installed size (mm) 10500* 2400* 3200
weight 2T

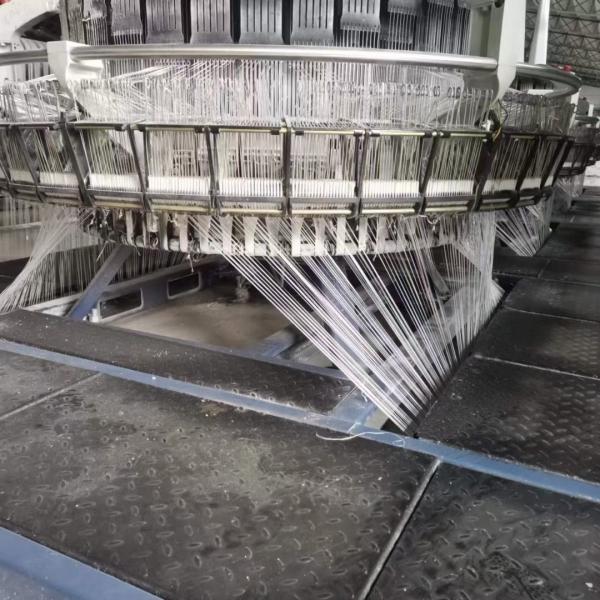

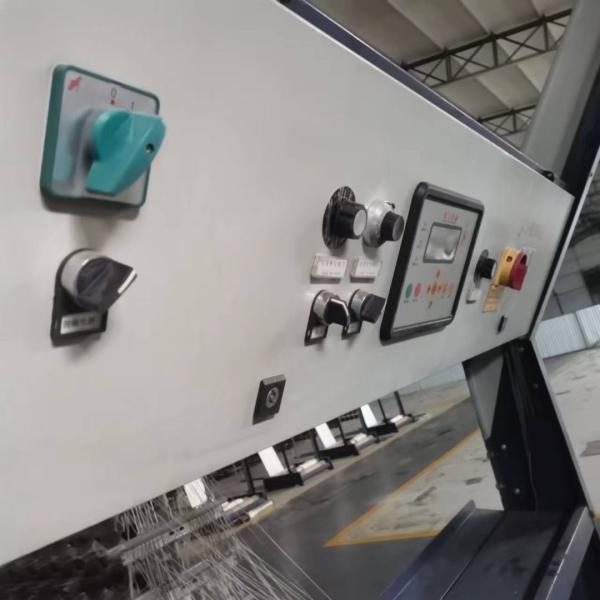

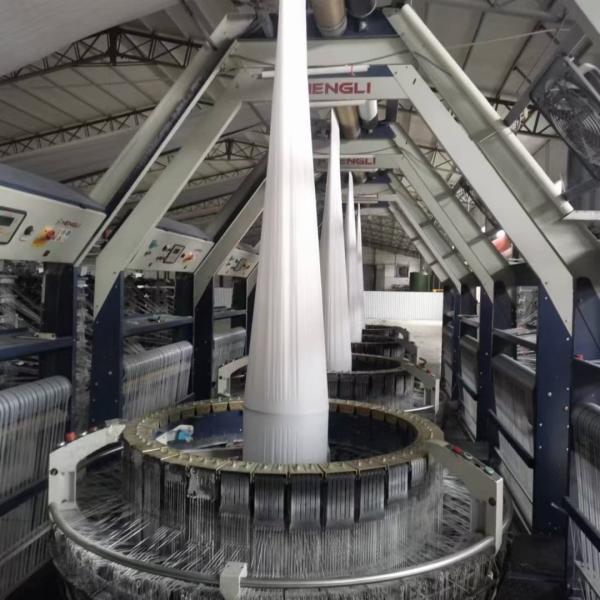

Machine Photos:

Six Shuttle Loom Used Circular Loom Machine For Plastic Woven BagSix Shuttle Loom Used Circular Loom Machine For Plastic Woven BagSix Shuttle Loom Used Circular Loom Machine For Plastic Woven BagSix Shuttle Loom Used Circular Loom Machine For Plastic Woven Bag
