Specifications
Brand Name :
Shacman
Model Number :
SX3258DR384
Certification :
CCC, ISO, CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
$35000/unit-$41000/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 units per Month
Delivery Time :
10-15 work days
Packaging Details :
Nude, Waxing before delivery, shipped by bulk ship or Ro-Ro ship
Product Name :
Shacman Dump Truck
New or Used :
New Dump Truck
Emission Standard :
Euro 2
Track width (mm) :
2036/1850
Engine :
Weichai
Tyre :
12.00R20
Description

China 30 Ton Payload Capacity Dumper, Shacman F3000 Dump Truck

Factory Profile:

SHACMAN truck Group was founded in 1968. We design and manufacture a wide range of products including military off-road vehicles, heavy-duty trucks, medium and light trucks, semi trailer,special vehicles,medium and large coach buses, mini vehicles, mini vehicle axles, Cummins engines, heavy-duty axles and various vehicle components. Upholding our business philosophy of “Renown with Virtues, Leading by Service, Success with Quality”, we will continue, together with customers, to build a highly efficient, win-win industrial chain ecosystem and become a world leading service oriented automobile group.

China F3000 Shacman Dump Truck 30 Ton Payload Capacity Dumper

SHACMAN DUMP TRUCK SPECIFICATIONS

Driving type 6x4 4x2 8x4
Weight Complete kerb mass (kg) 12160
GVW (kg) 32500
Dimensions LxWxH (mm) 7550x2490x3450
Body size(mm) 5600x2300x1100,1300,1500
Front/rear overhang(chassis) 1525/1450
Wheel base (mm) 3175+1400
Track width (mm) 2036/1850
Engine Brand Weichai
Model WP10.336
Power (kw/HP) 247/336
Max. torque (N.m)/rpm 1250/1200-1600
Displacement (L) 9.726
Emission standard Euro 3
Axles Front axle 7500kg
Rear axle 16000kg,Double reduction driving axle with inter-wheel differential and differential lock
Ratio 5.262
Performance Max. speed ( km/h) 76
Min. turning circle (m) 15
Min. ground clearance (mm) 314
Approach/Departure angle(°) 28/30
Max. gradeability (%) 32
Transmission Brand FAST
Model 9JS135
Control type Manual
Gear shift 9-forward and 1-reverse speeds
Clutch Type Single plate, diaphragm spring
Diameter (mm) D-430
Action Mechanical type, hydraulic and pneumatic operation
Brakes Type Drum
Service brake With dual-circuit compressed air brake
Park brake Power spring brake acting on rear wheel
Auxiliary brake WEVB
Steering Type Integral circuiting ball power steering
Chassis Type Ladder structure with parallel straight
300x8x(8+7)
Suspension Front suspension Longitudinal leaf spring
Rear suspension Inverted leaf spring stabilizator suspension
Tyres Type(standard) 11.00R20
Fuel tank Tank capacity (L) 300
Material Aluminium
Electrics Type 24V
Starter 5.58kw (24V)
Generator 2.0kw (28V780A)
Battery 2x135Ah
Cab Type MAN F3000, Middle Lengthened flat
Equipemets 4 point are suspension, A/C, air suspension driver seat with handle and seatbelts, 2 sleeper bed,
Optional Electric windows, electricity heated, GPS/ CD

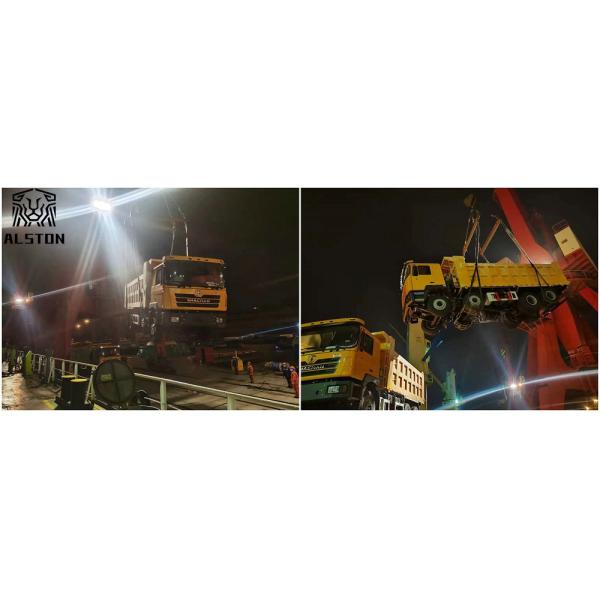

Shipment of Shacman Dump Truck F3000

China F3000 Shacman Dump Truck 30 Ton Payload Capacity Dumper

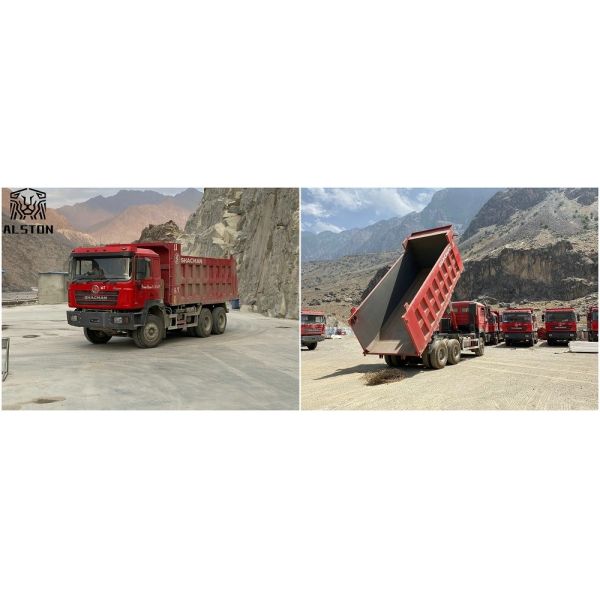

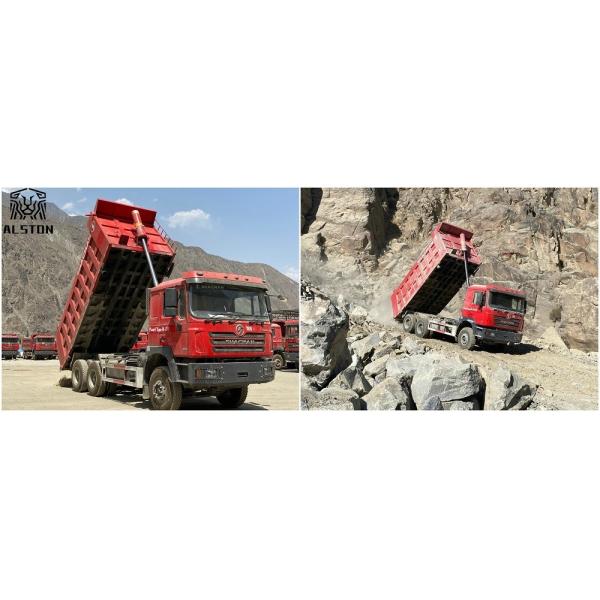

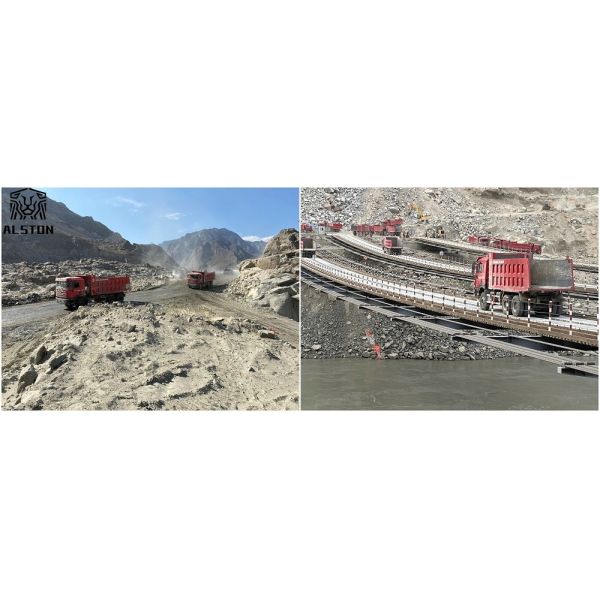

Shacman Dump Truck Used in Mining Area

China F3000 Shacman Dump Truck 30 Ton Payload Capacity DumperChina F3000 Shacman Dump Truck 30 Ton Payload Capacity DumperChina F3000 Shacman Dump Truck 30 Ton Payload Capacity Dumper
