Diesel Tipper Dump Truck New China Truck 20M3
Diesel Tipper Dump Truck New China Truck 20M3
Diesel Tipper Dump Truck New China Truck 20M3
Diesel Tipper Dump Truck New China Truck 20M3
Diesel Tipper Dump Truck New China Truck 20M3
Diesel Tipper Dump Truck New China Truck 20M3
Diesel Tipper Dump Truck New China Truck 20M3
Diesel Tipper Dump Truck New China Truck 20M3
Diesel Tipper Dump Truck New China Truck 20M3
Diesel Tipper Dump Truck New China Truck 20M3
Specifications
Brand Name :
CHENGLONG
Model Number :
LZ3252PDJ
Certification :
CCC, ISO, CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
$35000/unit-$41000/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 units per Month
Delivery Time :
10-15 work days
Packaging Details :
Nude, Waxing before delivery, shipped by bulk ship or Ro-Ro ship
Product Name :
Chenglong Dump Truck
New or Used :
New Dump Truck
Horse Power :
371hp,375hp,420hp
Maximum Torque :
1800N.m at 1100-1800rpm
Maximum power :
276kw at 1800rpm
Tyre :
12.00R20
Description

Diesel Tipper Dump Truck 20M3, China Dump Trucks For Sale

Factory Profile:

1. Leading enterprise of Dongfeng Motor Group (DFG)

Dongfeng Liuzhou Motor Co., Ltd., a subsidiary controlled by Dongfeng Motor Corporation and a leading enterprise of the DFG brand, has ranked the first place in sales volume for five consecutive years, as compared to other subsidiaries of DFG.

2. Invest equally on both commercial vehicles and passenger vehicles,well sold abroad

Establish marketing and service network all over China, and export products to SE Asia, Middle East, and Africa. So far, the Company has

cultivated two brands, namely, commercial vehicle brand “Chenglong” and passenger vehicle brand “Dongfeng Fengxing”. In addition, it has the capacity of producing 100,000 commercial vehicles (planned) and 400,000 passenger vehicles per year.

3. Share the group’s advantageous resources while boosting DFG.

As a subsidiary of DFG, Dongfeng Liuzhou Motor Co., Ltd. shares advantageous resources of DFG in an all-around manner.

By virtue of DFG’s resources, Dongfeng Liuzhou Motor Co., Ltd. wins more development opportunities, and it keeps on introducing and assimilating advanced design philosophies, advanced management experience, and advanced technologies of domestic and overseas motor companies like Dongfeng Nissan to launch onto the market new products in succession.

Diesel Tipper Dump Truck New China Truck 20M3

CHENGLONG DUMP TRUCK SPECIFICATIONS

Model LZ3252PDJ
Code TJ3382MQ
Driving Type 6×4,LHD
Use scope Construction project,sand and gravel mining and mine pot etc
Chassis Dimensions(mm)
Overall chassis length 8500
Cab width 2550
Cab height (unladen) 3470
Wheel base 3800+1450
Front overhang 1560
Rear overhang 1847
vehicle weights(kg)
G.V.W 25000
Curb weight 16460
Weight 40-50T
Frame profile Dimensions(mm)
Section height 306
Section thickness 8+8
Engine
Type YC6M340-33
Emission level Euro II
Maximum power 276kw at 1800rpm
Maximum torque 1800N.m at 1100-1800rpm
Number of cylinders 6
Displacement (lit) 10.338L
Clutch
Plate's diameter ф430mm
Operating system pull-type
Gear box
Type FAST 10JSD160
Number of gears 10 forward gears& 2 reverse
Axle
Front Axle STR axle
7500Kg
Rear Axle double reduction ,Benz tech cast steel axle, hub reduction(widening brake),ratio 5.921
2*16000Kg
Suspension
Front suspension 11Leaf spring with shock absorber
Rear suspension 13 leaf spring with shock absorber
Battery
Voltage (V) 24V
Battery capacity (A.h) 150×2
Fuel Tank
Type Steel fuel tank, with lockable cap
Capacity 350L
Others
Others Cab suspension of mechanical full-floating, electric hydraulic flip, driver seat with mechanical vibration damping, double-U-shaped bolt, European swirl double-passage air intake pipe, desert air filters, large junction plate, 16mm thick wheel, laminated glass, WABCO valves for the complete vehicle, genuine leather+steering wheel of imitation peach wood, front stabilizer, front wheel foot ring, A/C
Tyres 12.00R20 radius tires
Cargo Body
Chassis Dimensions(mm) 5600*2300*1900
Cylinder Chenglong top lifting
Material Material:Q375, Bottom 8mm, Side 6mm, Four carling

Chenglong Dump Truck Details:

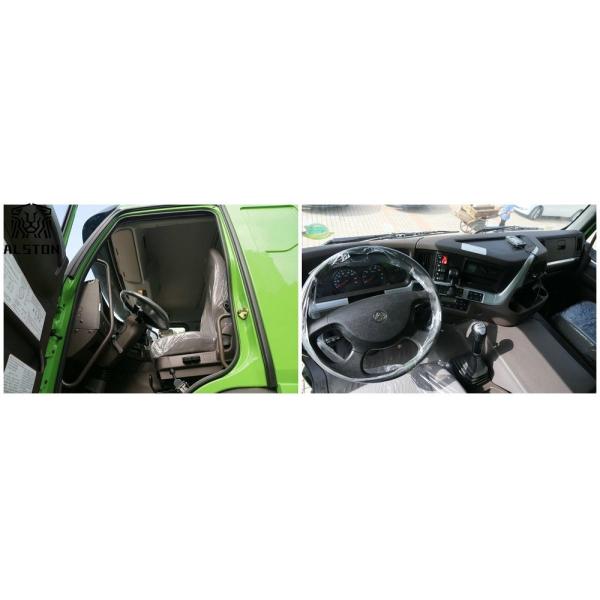

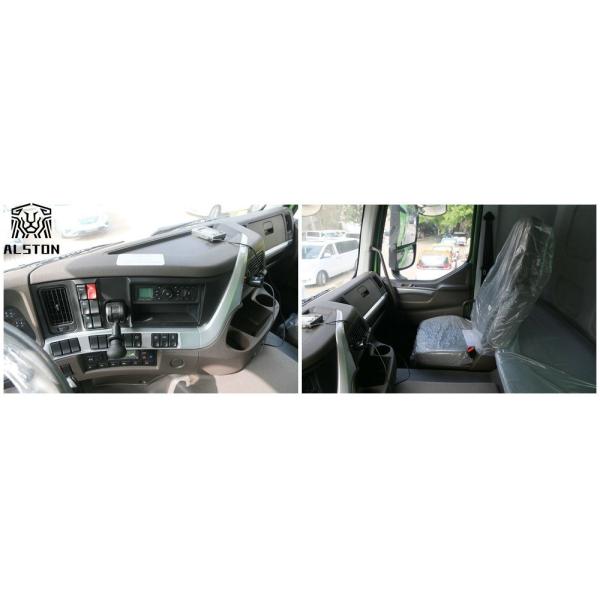

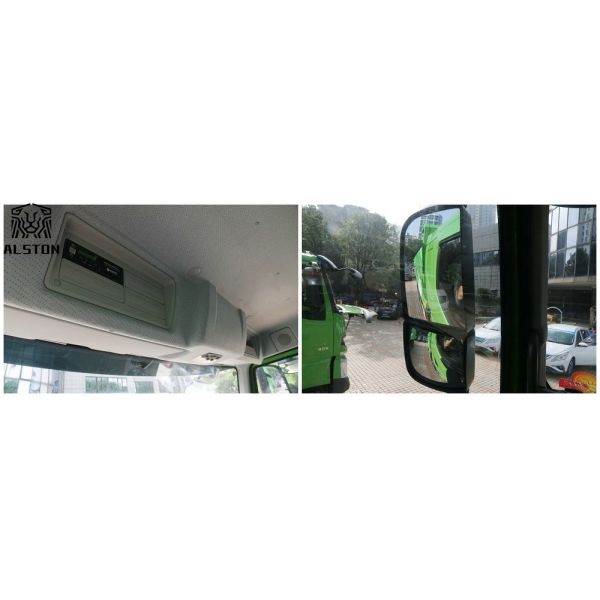

H7 Cabin(one sleeper with A/C)

Diesel Tipper Dump Truck New China Truck 20M3Diesel Tipper Dump Truck New China Truck 20M3Diesel Tipper Dump Truck New China Truck 20M3

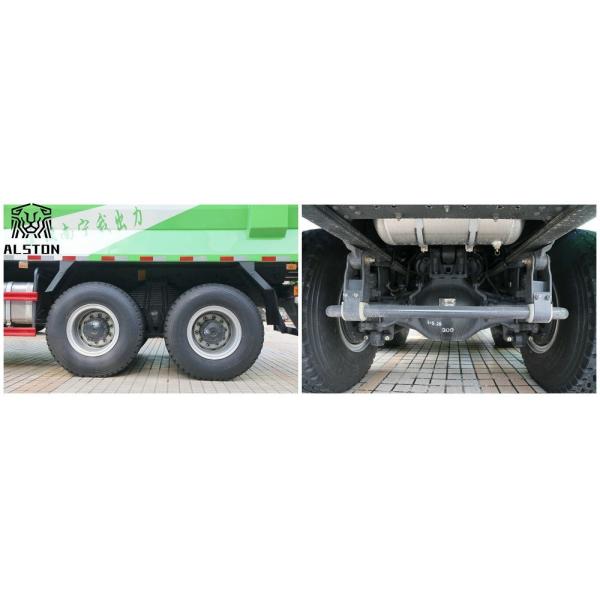

Truck Chassis(6x4 type)

Diesel Tipper Dump Truck New China Truck 20M3Diesel Tipper Dump Truck New China Truck 20M3Diesel Tipper Dump Truck New China Truck 20M3

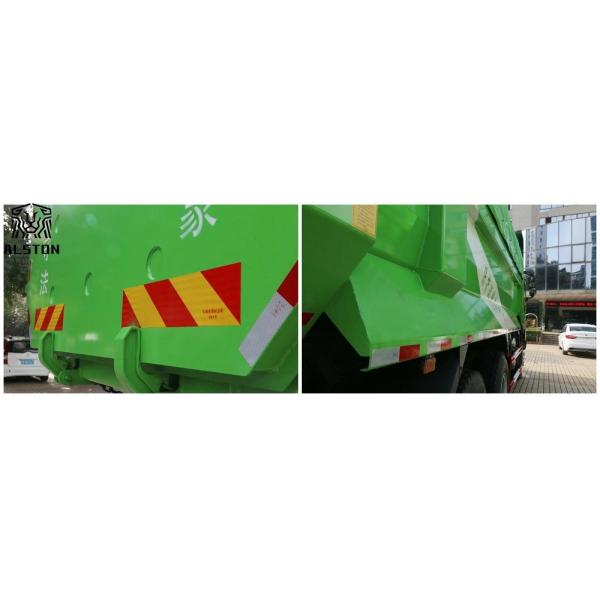

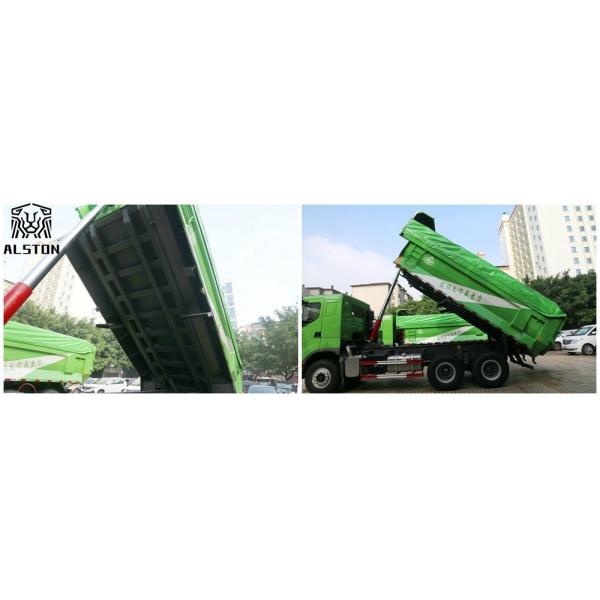

Truck Upper Body

Diesel Tipper Dump Truck New China Truck 20M3Diesel Tipper Dump Truck New China Truck 20M3Diesel Tipper Dump Truck New China Truck 20M3
