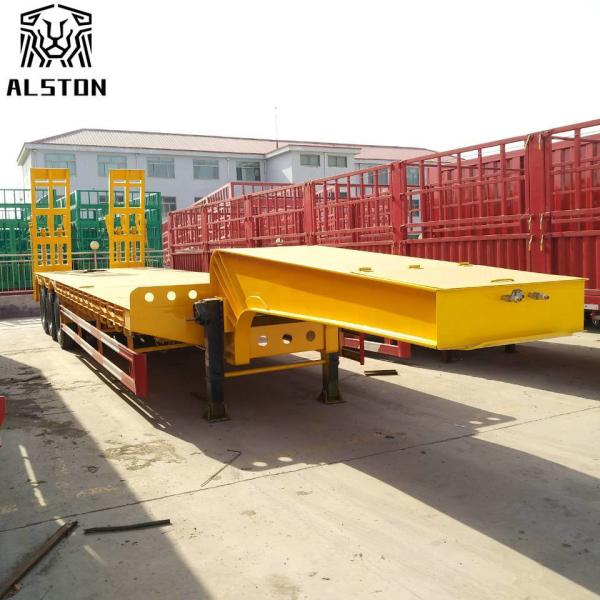

Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer
Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer
Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer
Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer
Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer
Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer
Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer
Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer
Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer
Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer
Specifications
Brand Name :
ALSTON
Model Number :
ATM3316LBT
Certification :
CCC, ISO, CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
$12000/unit-$16000/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 units per month
Delivery Time :
15-30 working days
Packaging Details :
Nude, Waxing before delivery
Product Name :
Lowbed Semi Trailer
Type :
Truck Trailer
Suspension :
Mechanical Suspension
Tyre :
12R22.5
Dimension :
13000x3000x1650mm
Loading Weight :
60 Tons 100 Ton
Description

Excavator Lowbed Trailer 3 Axle Low Bed Loader 50 60 Ton Lowboy Semi Trailer​

Lowbed Semi Trailer Features:

1. The main frame of Alston lowbed semi trailer is made of 16Mn high-tensile steel,reasonable structure,superior

carrying capacity and no permanent deformation;It can be reinforced according to using requirement.
2. Alston lowbed semi trailer adopts large gooseneck structure, low loading platform and gravity, high roadability,

big loading space; It’s suitable for transportation of large mechanical devices, large-scale carg.
3. The axle, tyre and other accessories are the well-known products which supplied by the domestic and foreign

professional manufacturers.
4. The continuous improvement of structure will be made according to practical loading and unloading requirements.

LOWBED SEMI TRAILER PARAMETERS

Dimension and Weight
Overall Dimension(mm) 13000x3000x1650mm
Working Deck Dimension(mm) 9000x3000x1350mm
Platform thickness(mm) 4mm Diamond Plate
Main Beam “H”main beam design,Q345B carbon steel,
the height of the beam is 500 mm,
upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Wheelbase 7,650mm+1,310mm+1,310mm+1,310mm
Payload 60,000kg
Tare weight 9,000kg
G.V.W.R. 69,000kg
Function To transport bulk goods or heavy equipment like loader or excavator
Running System
Axle 13Ton, ZY brand optional FUWA brand,
one hundred fifty thousand Kilometers no need maintenance
Axle Number Three
Tire 11.00R20, 12 pcs Taitong brand
Rim 8.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension system Common Mechanical Suspension
Steel Spring 10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical System Chinese standard 24V lighting system
Brake system: Dual line pneumatic brake, SAE hose and connector,optional ABS
Brake air chamber 6 units T30/30 spring brake chambers
Emergency relay valve Wabco relay valve
Traction/King Pin 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing Gear Zhenhua brand 28ton external two speed telescopic manual operation. 2,500mm behind the kingpin location

Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer

Container

Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer

Ro-Ro Ship

Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer

Bulk Ship

Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer

Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer

Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer

PRODUCTION

Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer

Other Related Semi Trailers:

Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer

Excavator Transport 3 Axle 50 Ton 60 Ton Low Bed Trailer
