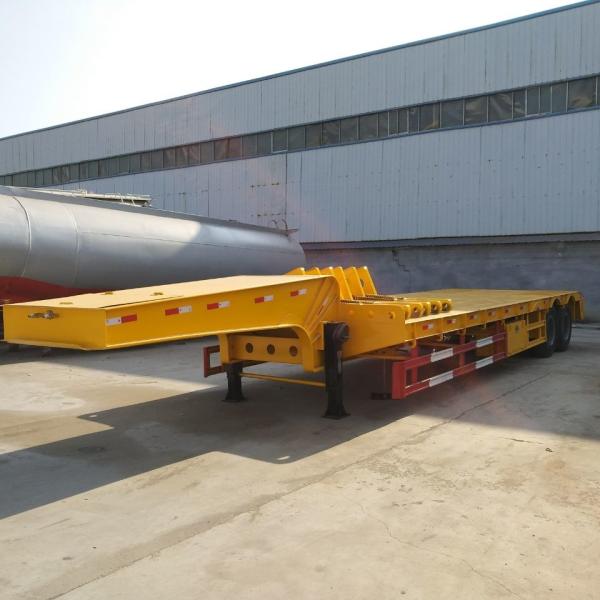

45 Ton 2 Axle Heavy Duty Low Bed Trailer Mechanical Suspension
45 Ton 2 Axle Heavy Duty Low Bed Trailer Mechanical Suspension
45 Ton 2 Axle Heavy Duty Low Bed Trailer Mechanical Suspension
45 Ton 2 Axle Heavy Duty Low Bed Trailer Mechanical Suspension
45 Ton 2 Axle Heavy Duty Low Bed Trailer Mechanical Suspension
45 Ton 2 Axle Heavy Duty Low Bed Trailer Mechanical Suspension
45 Ton 2 Axle Heavy Duty Low Bed Trailer Mechanical Suspension
45 Ton 2 Axle Heavy Duty Low Bed Trailer Mechanical Suspension
Specifications
Brand Name :
ALSTON
Model Number :
ATM3316LBT
Certification :
CCC, ISO, CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
$12000/unit-$16000/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 units per month
Delivery Time :
15-30 working days
Packaging Details :
Nude, Waxing before delivery
Product Name :
Lowbed Semi Trailer
Type :
Truck Trailer
Suspension :
Mechanical Suspension
Axle :
13ton Fuwa brand
Kingpin :
JOST 2"(50mm)or3.5"(90mm)
Loading Weight :
40 50 60 Tons
Description

Heavy Duty 2 Axle 45ton Lowbed Lowboy Semi Trailer Low Bed Truck Trailer

Lowbed Semi Trailer Advantages:

1. The lowbed semi trailer is with more stability. The deck of lowbed trailer is extremely low compared to other heavy haulers. A low-lying deck means that the center of gravity is low. Hence, lowbed semi trailers are more stable when transporting heavy cargo than other trailers.
2. The lowbed semi trailers are safer when transport abnormal cargo. Lowbed trailers are specifically designed to carry heavy loads. The trailers are made of high-strength materials that can withstand pressure of up to 700mpa.
3. Some countries have laws that restrict the height of transported cargos. Lowbed trailers offer companies a good solution to transport extra tall equipment safely without breaking the laws.

LOWBED SEMI TRAILER SPECIFICATIONS

Dimension and Weight
Overall Dimension(mm) 13000x3000x1650mm
Working Deck Dimension(mm) 9000x3000x1350mm
Platform thickness(mm) 4mm Diamond Plate
Main Beam “H”main beam design,Q345B carbon steel,
the height of the beam is 500 mm,
upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Wheelbase 7,650mm+1,310mm+1,310mm+1,310mm
Payload 60,000kg
Tare weight 9,000kg
G.V.W.R. 69,000kg
Function To transport bulk goods or heavy equipment like loader or excavator
Running System
Axle 13Ton, ZY brand optional FUWA brand,
one hundred fifty thousand Kilometers no need maintenance
Axle Number Two
Tire 11.00R20, 8 pcs Taitong brand
Rim 8.0*22.5 steel disc wheel, 10 holes ISO, 8 pcs
Suspension system Common Mechanical Suspension
Steel Spring 10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical System Chinese standard 24V lighting system
Brake system: Dual line pneumatic brake, SAE hose and connector,optional ABS
Brake air chamber 4 units T30/30 spring brake chambers
Emergency relay valve Wabco relay valve
Traction/King Pin 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing Gear Zhenhua brand 28ton external two speed telescopic manual operation. 2,500mm behind the kingpin location
