2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T
2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T
2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T
2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T
2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T
2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T
2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T
2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T
2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T
2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T
2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T
2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T
Specifications
Brand Name :
ALSTON
Model Number :
ATM3316LBT
Certification :
CCC, ISO, CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
$12000/unit-$16000/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 units per month
Delivery Time :
15-30 working days
Packaging Details :
Nude, Waxing before delivery
Product Name :
Lowbed Semi Trailer
Type :
Truck Trailer
Suspension :
Mechanical Suspension
Brake System :
WABCO Valve
Dimension :
13000x3000x1650mm
Loading Weight :
40 50 60 Tons
Description

Heavy Duty 2 Axle 40 50 60 Tons Gooseneck Low Bed Semi Lowboy Trailer

Lowbed Semi Trailer Description and Features:

Lowbed semi trailers are not only used to transport machinery and vehicle but all kinds of heavy and

abnormal loads. For instance, finished products from these industries are packed in containers and stacked

on lowboys for transportation. The transporters can move stacks of heavy containers without toppling over.

Hence, many manufacturers prefer to transport finished products by lowbed semi trailers.

1. More than 30 years experiences in trailer and truck industrial, exported to more than 80 countries in Africa,

Southeast Asia, South America.
2. Two years free warranty terms for the I beam, one year free warranty terms for the Axles, suspension etc.
3. Spare parts support services is available.
4. We are able to design and produce the low bed trailer as your requirments, which ensure to meet your

local road regulation.

LOWBED SEMI TRAILER SPECIFICATIONS

Dimension and Weight
Overall Dimension(mm) 13000x3000x1650mm
Working Deck Dimension(mm) 9000x3000x1350mm
Platform thickness(mm) 4mm Diamond Plate
Main Beam “H”main beam design,Q345B carbon steel,
the height of the beam is 500 mm,
upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Wheelbase 7,650mm+1,310mm+1,310mm+1,310mm
Payload 60,000kg
Tare weight 9,000kg
G.V.W.R. 69,000kg
Function To transport bulk goods or heavy equipment like loader or excavator
Running System
Axle 13Ton, ZY brand optional FUWA brand,
one hundred fifty thousand Kilometers no need maintenance
Axle Number Two
Tire 11.00R20, 8 pcs Taitong brand
Rim 8.0*22.5 steel disc wheel, 10 holes ISO, 8 pcs
Suspension system Common Mechanical Suspension
Steel Spring 10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical System Chinese standard 24V lighting system
Brake system: Dual line pneumatic brake, SAE hose and connector,optional ABS
Brake air chamber 4 units T30/30 spring brake chambers
Emergency relay valve Wabco relay valve
Traction/King Pin 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing Gear Zhenhua brand 28ton external two speed telescopic manual operation. 2,500mm behind the kingpin location

2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T

Container

2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T

Ro-Ro Ship

2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T

Bulk Ship

2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T

2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T

2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T

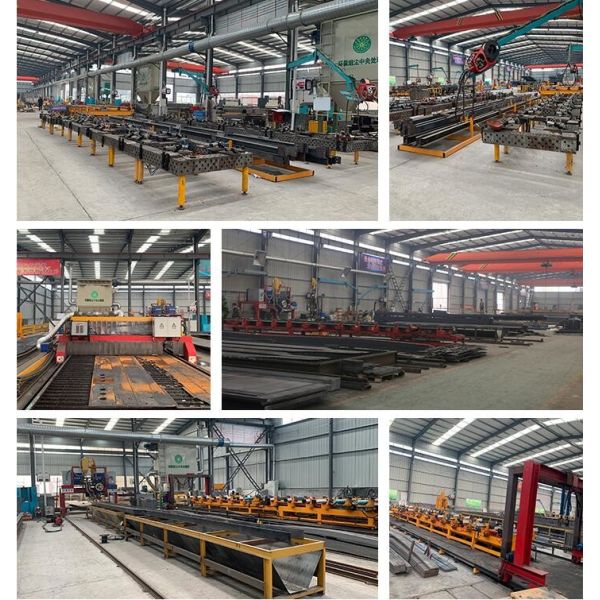

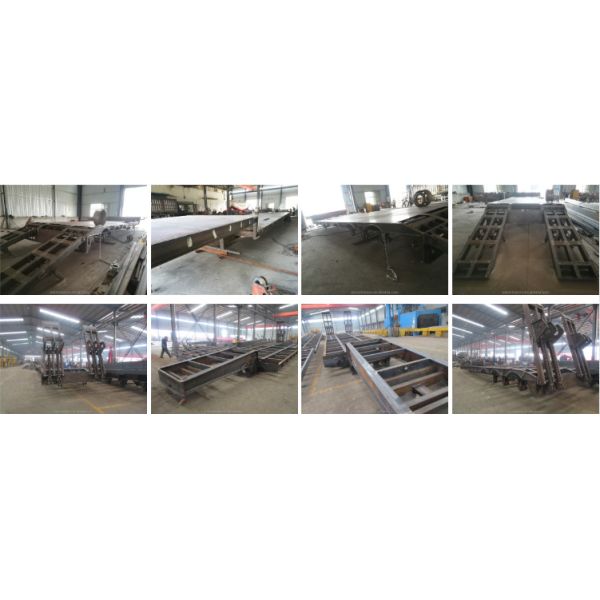

PRODUCTION

2 Axle Heavy Duty Gooseneck Low Bed Trailer 40T 50T 60T
