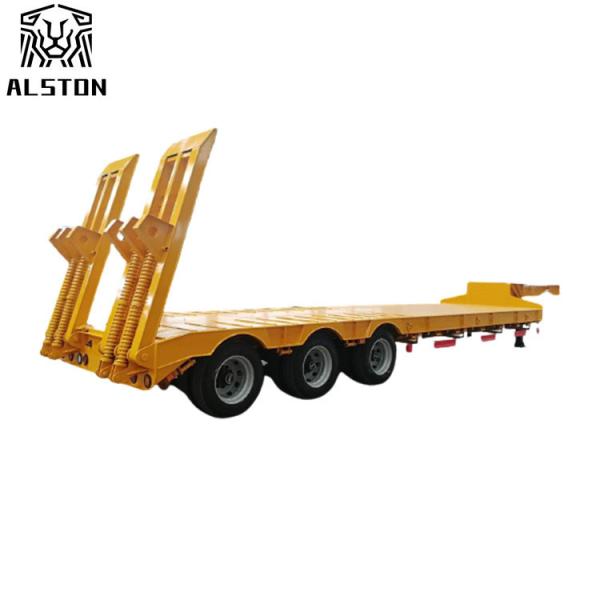

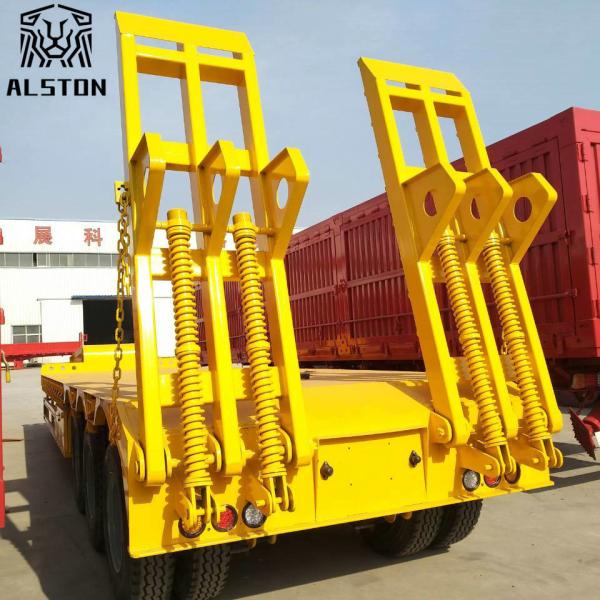

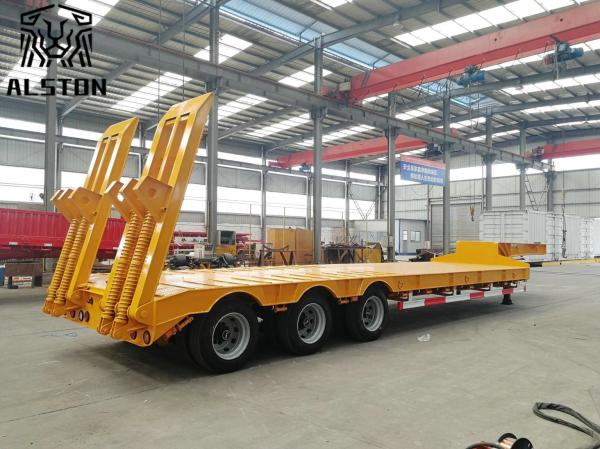

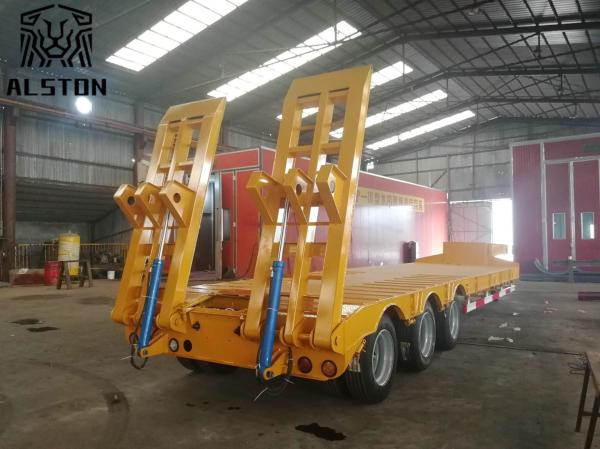

3 Axle Lowbed Semi Trailer , 60 Ton 80 Ton Lowboy Trailer
3 Axle Lowbed Semi Trailer , 60 Ton 80 Ton Lowboy Trailer
3 Axle Lowbed Semi Trailer , 60 Ton 80 Ton Lowboy Trailer
3 Axle Lowbed Semi Trailer , 60 Ton 80 Ton Lowboy Trailer
3 Axle Lowbed Semi Trailer , 60 Ton 80 Ton Lowboy Trailer
3 Axle Lowbed Semi Trailer , 60 Ton 80 Ton Lowboy Trailer
3 Axle Lowbed Semi Trailer , 60 Ton 80 Ton Lowboy Trailer
3 Axle Lowbed Semi Trailer , 60 Ton 80 Ton Lowboy Trailer
3 Axle Lowbed Semi Trailer , 60 Ton 80 Ton Lowboy Trailer
3 Axle Lowbed Semi Trailer , 60 Ton 80 Ton Lowboy Trailer
3 Axle Lowbed Semi Trailer , 60 Ton 80 Ton Lowboy Trailer
3 Axle Lowbed Semi Trailer , 60 Ton 80 Ton Lowboy Trailer
Specifications
Brand Name :
ALSTON
Model Number :
ATM3316LBT
Certification :
CCC, ISO, CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
$12000/unit-$16000/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 units per month
Delivery Time :
15-30 working days
Packaging Details :
Nude, Waxing before delivery
Product Name :
Lowbed Semi Trailer
Suspension :
Mechanical Suspension
Landing Gear :
JOST brand Two Speed
Kingpin :
JOST 2"(50mm)or3.5"(90mm)
Dimension :
13000x3000x1650mm
Loading Weight :
80000kg
Description

Lowbed Semi Trailer 3 Axle 60ton 80 Tons Low Bed Truck Semi Trailer

ALSTON Lowbed Semi Trailer Description:

ALSTON low bed semi trailer is a very powerful low bed trailer, its strength and durability meet transportation needs.
Lowbed trailers are made of high-strength steel, especially for the main stress points.The application of WABCO brake
valve and other famous parts improves the reaction sensitivity and stability of the system and makes it more safe.

PRODUCT SPECIFICATIONS

Dimension and Weight
Overall Dimension(mm)13000x3000x1650mm
Working Deck Dimension(mm)9000x3000x1350mm
Platform thickness(mm)4mm Diamond Plate
Main Beam“H”main beam design,Q345B carbon steel,
the height of the beam is 500 mm,
upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Wheelbase7,650mm+1,310mm+1,310mm+1,310mm
Payload60,000kg
Tare weight9,000kg
G.V.W.R.69,000kg
FunctionTo transport bulk goods or heavy equipment like loader or excavator
Running System
Axle13Ton, ZY brand optional FUWA brand,
one hundred fifty thousand Kilometers no need maintenance
Axle NumberThree
Tire11.00R20, 12 pcs Taitong brand
Rim8.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension systemCommon Mechanical Suspension
Steel Spring10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical SystemChinese standard 24V lighting system
Brake system:Dual line pneumatic brake, SAE hose and connector,optional ABS
Brake air chamber6 units T30/30 spring brake chambers
Emergency relay valveWabco relay valve
Traction/King Pin2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing GearZhenhua brand 28ton external two speed telescopic manual operation. 2,500mm behind the kingpin location

ALSTON Lowbed Semi Trailer Advantages:

1. Advanced manufacturing technology
Laser cutting, robot automatic welding, reliable quality
2. Advanced painting techniques
KTL electrophoresis + powder spraying, instead of the traditional painting process, has a good anti-corrosion effect, long service life.
3. Assembly structure
The frame parts adopt assembly structure, which is easy to replace and maintain, and reduce the maintenance cost.
4. Custom design
There are many types of low chassis semitrailers available: unloaded, exposed tire design, single tire, twin tire,
back or front ramp to meet the different needs of customers.
5. Warranty
Main beam: 2 years
6. Global semi-trailer accessories brands such as BPW,WABCO,JOST and Micheli
