Specifications
Brand Name :
ALSTON
Model Number :
ATM3316FBT
Certification :
CCC, ISO, CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
$7500/unit-$10000/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 units per month
Delivery Time :
15-30 working days
Packaging Details :
Nude, Waxing before delivery
Product Name :
Used Flatbed Semi Trailer
Axle :
3 Axle
Landing Gear :
JOST brand Two Speed
Kingpin :
JOST 2"(50mm)or3.5"(90mm)
Loading Weight :
60ton
Material :
Steel
Description

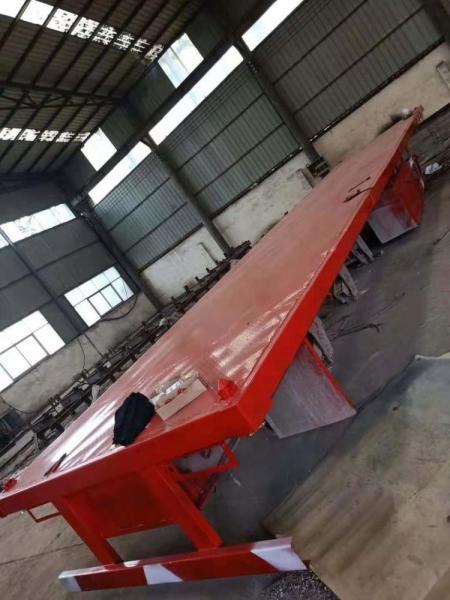

3 Axle 40ft 60ton Flatbed Container Carrier Flat Bed Semi Trailer

Used Flatbed Semi Trailer Features:

1. 3 axle flatbed trailers has a solid bed, which is made of diamond steel. There is no roof or fixed sidewalls.

2. Used for transporting container as customer's need,normally 20ft/40ft/45ft container.

3 .Each trailer with 4/8/12 units container locks to retain the container.

4. The main beam of second hand used flatbed semi trailer is made of Q345 or T700 steel to improve the

trailer’s strength; the main beams are selected according to clients’ requirement for loading capacity.

5. Clients can choose brand new tires or 40%, 60%,80% new tires.

6. Used, stocked and new chassis are optional.

7. Clients can choose used or axles and the brand of axles.

8. The unit price will be different according to order quantity.

9. Second hand used flatbed semi trailer can transport one 40ft container or two 20ft containers.

10. The color of second hand used flatbed semi trailer is optional upon clients’ choice.

USED FLATBED SEMI TRAILER SPECIFICATIONS

Trailer Model 3 Axle flatbed Container Semi Trailer
Function Carry 40ft or 2*20ft container or other stuff

Overall Dimension
(Lx W x H)(mm)

 12500mm*2500mm*1600mm
Tare Weight(KG) 6350kg
Loading Weight( KG) 40000kg
Total Weight(KG) 46350kg
Axle Brand 3*13TON Axle FUWA Brand
Wheelbase(mm) 7450+1310+1310
Suspension system Mechanical Leaf Spring Suspension
Leaf spring 90(W)mm*13(Thick)mm*10 Layer
The material of Main beam Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm.
Side beam Q235 16# channel steel
Platform plate 3mm Diamond plate
Container Twist Locker 12pcs container lock
Tire Type and quantity 12R22.5 12units
Rim 9.00-22.5
Traction Pin 2” or 3.5”
Spare Wheel Bracket 2 pieces
Tool Box 1 Standard
Landing Gear 28ton single action supporting legs
Brake system Dual Line braking system
Brake air chamber Six double chamber
Electrical system 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
