Specifications
Brand Name :
ALSTON
Model Number :
ATM3316FBT
Certification :
CCC, ISO, CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
$7500/unit-$10000/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 units per month
Delivery Time :
15-30 working days
Packaging Details :
Nude, Waxing before delivery
Product Name :
Used Flatbed Semi Trailer
Axle :
Tri- Axles
Landing Gear :
JOST brand Two Speed
Kingpin :
JOST 2"(50mm)or3.5"(90mm)
Tyre :
12R22.5
Loading Weight :
60 Tons
Description

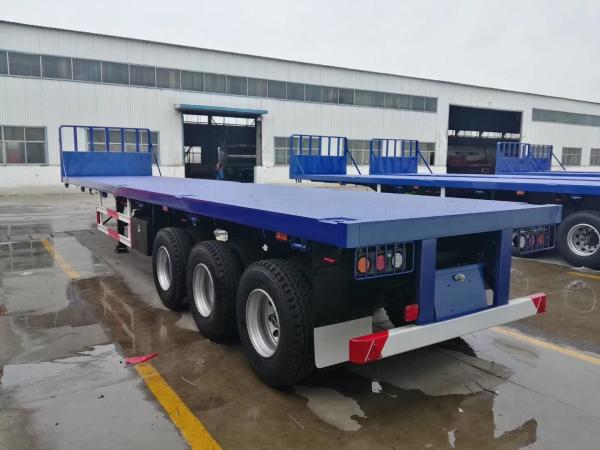

Used Tri-Axles 40 Feet Flatbed Trailer 60 Tons Flat Deck Semi Trailer

Used Flatbed Semi Trailer Features:

Used flatbed trailer beam is repainted and polished. We will recommend suitable models according to customers' requirements.

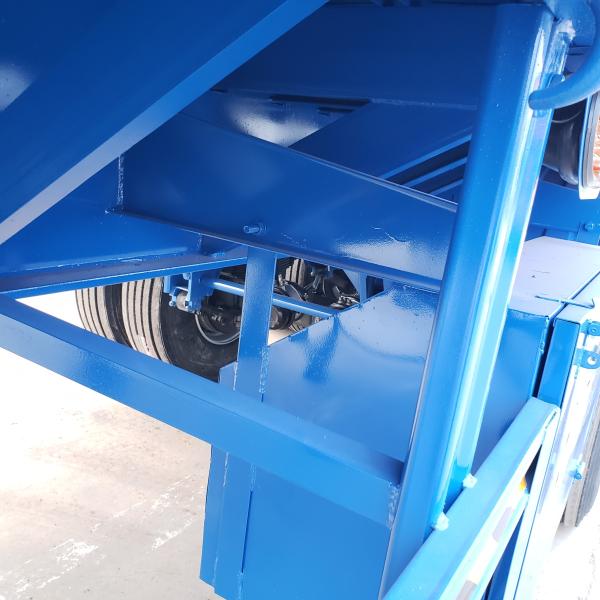

The series of used flatbed trailer frames are of the beam-type structure, and the longitudinal beams are of straight or gooseneck type. The web height is from 400mm to 550mm, the longitudinal beam is welded by automatic submerged arc welding, the frame is shot peened, the beam is inserted into the stringer and welded.

Used flatbed semi trailer is used to transport container and bulk cargo. And the price is much cheaper than new flatbed trailer. It can also be modified according to customer requirements.

USED FLATBED SEMI TRAILER SPECIFICATIONS

Trailer Model 3 Axle flatbed Container Semi Trailer
Function Carry 40ft or 2*20ft container or other stuff

Overall Dimension
(Lx W x H)(mm)

 12500mm*2500mm*1600mm
Tare Weight(KG) 6350kg
Loading Weight( KG) 60000kg
Total Weight(KG) 46350kg
Axle Brand 3*13TON Axle FUWA Brand
Wheelbase(mm) 7450+1310+1310
Suspension system Mechanical Leaf Spring Suspension
Leaf spring 90(W)mm*13(Thick)mm*10 Layer
The material of Main beam Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm.
Side beam Q235 16# channel steel
Platform plate 3mm Diamond plate
Container Twist Locker 12pcs container lock
Tire Type and quantity 12R22.5 12units
Rim 9.00-22.5
Traction Pin 2” or 3.5”
Spare Wheel Bracket 2 pieces
Tool Box 1 Standard
Landing Gear 28ton single action supporting legs
Brake system Dual Line braking system
Brake air chamber Six double chamber
Electrical system 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
