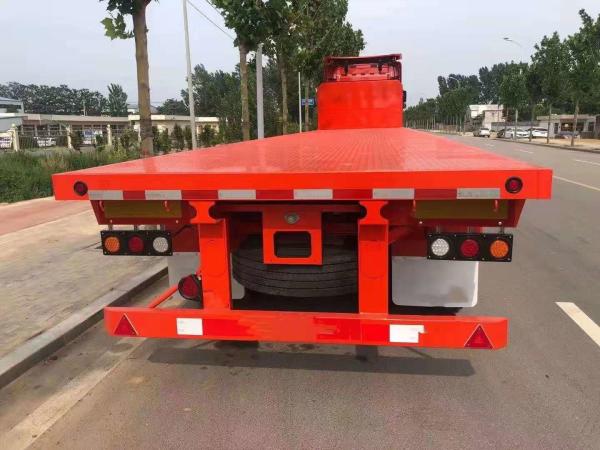

Container Transport Used Flatbed Semi Trailer , 20 40 Foot Flatbed Semi Trailer
Container Transport Used Flatbed Semi Trailer , 20 40 Foot Flatbed Semi Trailer
Container Transport Used Flatbed Semi Trailer , 20 40 Foot Flatbed Semi Trailer
Container Transport Used Flatbed Semi Trailer , 20 40 Foot Flatbed Semi Trailer
Container Transport Used Flatbed Semi Trailer , 20 40 Foot Flatbed Semi Trailer
Container Transport Used Flatbed Semi Trailer , 20 40 Foot Flatbed Semi Trailer
Container Transport Used Flatbed Semi Trailer , 20 40 Foot Flatbed Semi Trailer
Container Transport Used Flatbed Semi Trailer , 20 40 Foot Flatbed Semi Trailer
Specifications
Brand Name :
ALSTON
Model Number :
ATM3316FBT
Certification :
CCC, ISO, CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
$7500/unit-$10000/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 units per month
Delivery Time :
15-30 working days
Packaging Details :
Nude, Waxing before delivery
Product Name :
Used Flatbed Semi Trailer
Suspension :
Mechanical Suspension
Axle :
3 Axle
Landing Gear :
JOST brand Two Speed
Brake System :
WABCO Valve
Kingpin :
JOST 2"(50mm)or3.5"(90mm)
Description

20 40 ft Container Transport Flat Bed Trailer 3 Axle Flatbed Trailer

Used Flatbed Semi Trailer Features:

1. 20ft,30ft,40ft,45ft,48ft,50ft,53ft container transporting optional with twist locks.
2. flatbed or skeleton chassis type
3. Main beam:500mm height,140mm Q345 or T70 hight strong steel.
4. Suspension: rigid, single point or air suspension
5. Material of the main beam: Q345
6. Axles number: 2, 3, 4 axles.
7. Design type: Straight beam.
8. Jost landing gear, FUWA axles and tri-angle tires.

About our compamy after-sales service,we have a one-year warrant for every product and dedicated staff

at your service. We have a standard procedure to inspect the materials and products at every stage in the

manufacturing process. We will inspect the appearance and functions of the trailers before delivery.

With strong R&D capability, our engineers can get what you need.

Reply your inquiry in 12 working hours;

Experienced staffs answer all your questions;

Customer's design is available for certain products;

Spare parts for all types of engine machinery with reasonable price;

Different kinds of semi trailer can be provided with competitive price.

USED FLATBED SEMI TRAILER SPECIFICATIONS

Trailer Model 3 Axle flatbed Container Semi Trailer
Function Carry 40ft or 2*20ft container or other stuff

Overall Dimension
(Lx W x H)(mm)

 12500mm*2500mm*1600mm
Tare Weight(KG) 6350kg
Loading Weight( KG) 40000kg
Total Weight(KG) 46350kg
Axle Brand 3*13TON Axle FUWA Brand
Wheelbase(mm) 7450+1310+1310
Suspension system Mechanical Leaf Spring Suspension
Leaf spring 90(W)mm*13(Thick)mm*10 Layer
The material of Main beam Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm.
Side beam Q235 16# channel steel
Platform plate 3mm Diamond plate
Container Twist Locker 12pcs container lock
Tire Type and quantity 12R22.5 12units
Rim 9.00-22.5
Traction Pin 2” or 3.5”
Spare Wheel Bracket 2 pieces
Tool Box 1 Standard
Landing Gear 28ton single action supporting legs
Brake system Dual Line braking system
Brake air chamber Six double chamber
Electrical system 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
