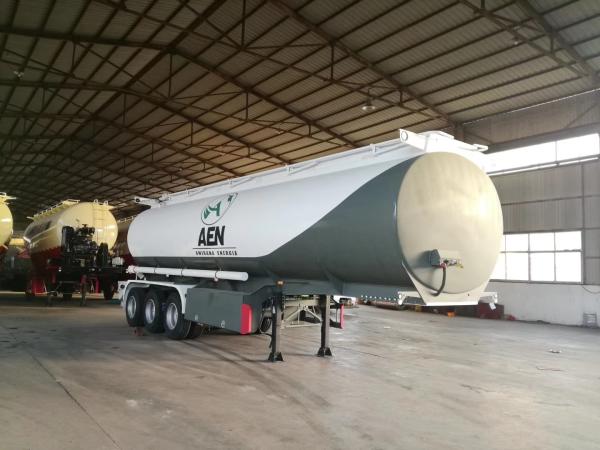

Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
Specifications
Brand Name :
ALSTON
Model Number :
ATM3316FTT
Certification :
CCC, ISO, CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
$14000/unit-18000/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 units per month
Delivery Time :
15-30 working days
Packaging Details :
Nude, Waxing before delivery
Product Name :
Fuel Tanker Semi Trailer
Size :
11500x2500x3900mm
Suspension :
Mechanical Suspension
Landing Gear :
JOST brand, Two Speed
Kingpin :
JOST 2"(50mm)or3.5"(90mm)
Material :
Carbon Steel, Aluminium
Description

Fuel Tanker Semi Trailer 3 Axles Fuel Tanker Crude Oil Tank Semi Trailer

Fuel Tanker Semi Trailer Description and Advantages:

Our Fuel Tanker Semi Trailer adopt advanced design concept. We also can produce the tanker trailers for
different liquid like fuel, petrol, water, palm oil etc. To make sure the safety, our standard trailers adopt the
Bottom Emergency valves. This can help the tankers to prevent oil leakage, when emergency happens.
ALSTON Fuel tanker trailers major parts and components of the trailer are processed by advanced equipment.
Also we adopt world famous brand of parts, like JOST, WABCO braking valve etc.

1. Strong Steel structure
Steel frames are built with top-class hot rolled or rolled steel plate, automatically welded longitudinal beam
and adopting advanced sanding and painting process as preliminary treatment.
2. Polyurethane combination paint
The tanker is shot blasted with primer once and polyurethane combination paint twice. Strong resistance
and strong adhesion.
3. Rational analysis design
Adhere to the concept of even stress on the trailer frame. 42 sturdy rib design to ensure the safety and carrying
capacity of the trailer.
4. European System
Mature and reliable European system Explosion-proof manhole Anti-overflow Oil and gas recovery Bottom loading.

FUEL TANKER SEMI TRAILER SPECIFICATIONS

Dimension and Weight
Overall Dimension(mm)11500x2500x3900mm
Wheelbase7,500mm+1,310mm+1,310mm
Payload40,000kg
Tare weight10,000kg
G.V.W.R.50,000kg
Functiontransport Fuel, Oil, Diesel
Tank
Volume42000L
Thickness(mm)Material Q235 carbon steel
Tank body and separate compartment plate: 5mm
Dish end plate: 6mm
Welding standardAll welding are to be done by qualified welder per applicable national standard
Compartment3 compartments ( 3*14000L )
Manhole cover3 units Safety manhole with breath valve, Aluminum, diameter 500mm.
Discharge valve3units 3” API valve with dust cover, aluminum Henghe Brand
Bottom valve3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand
Discharge pipe3〞seamless steel tube, 6m
Tanker body testHydrostatic test to 5 psi (35 Kpa) on each compartment

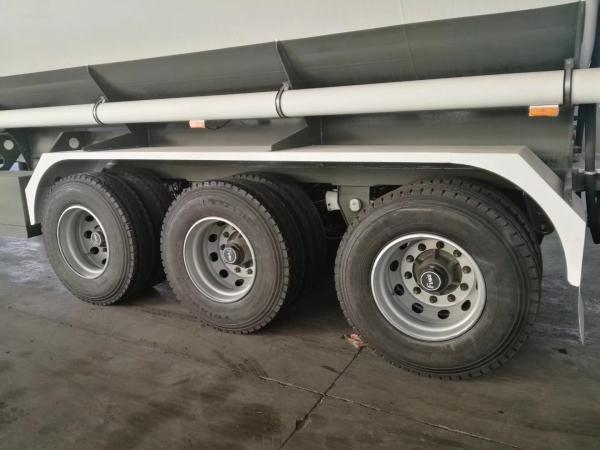

Running System
Axle14Ton, L1 brand optional FUWA brand, 3Axles, one hundred fifty thousand Kilometers no need maintenance
Axle NumberThree
Tire12R22.5, 12 pcs. Taitong brand
Rim9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension systemMechanical Suspension
Steel Spring10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical SystemChinese standard 24V lighting system
Brake system:Dual line pneumatic brake, SAE hose and connector,no ABS
Brake air chamber6 units T30/30 spring brake chambers
Emergency relay valveWabco relay valve

Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer

Flat Rack Container

Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer

Container

Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer

Bulk Ship

Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer

Ro-Ro Ship

Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
Our Workshop:
Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer

Flaw Detection of Tank Body

Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer
