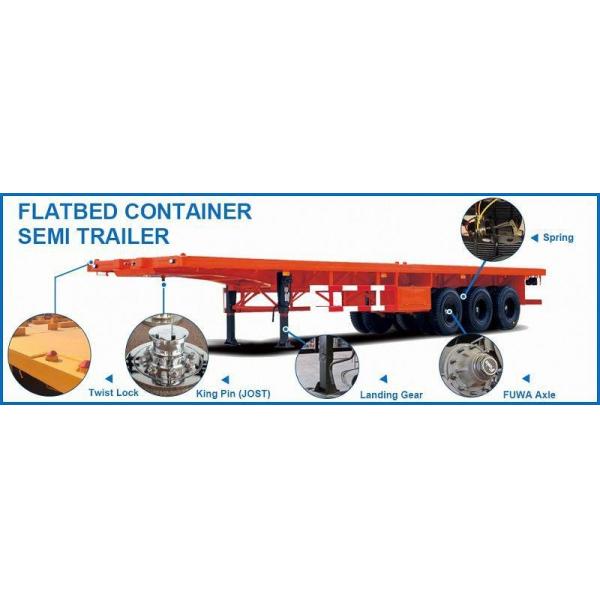

Triple Axle 12 Metre Flatbed 3 Axle Truck Trailers
Triple Axle 12 Metre Flatbed 3 Axle Truck Trailers
Triple Axle 12 Metre Flatbed 3 Axle Truck Trailers
Triple Axle 12 Metre Flatbed 3 Axle Truck Trailers
Triple Axle 12 Metre Flatbed 3 Axle Truck Trailers
Triple Axle 12 Metre Flatbed 3 Axle Truck Trailers
Triple Axle 12 Metre Flatbed 3 Axle Truck Trailers
Triple Axle 12 Metre Flatbed 3 Axle Truck Trailers
Specifications
Brand Name :
ALSTON
Model Number :
ATM3316FBT
Certification :
CCC, ISO, CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
$7500/unit-$10000/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 units per month
Delivery Time :
15-30 working days
Packaging Details :
Nude, Waxing before delivery
Product Name :
Used Flatbed Semi Trailer
Suspension :
Mechanical Suspension
Axle :
Tri Axle
Landing Gear :
JOST brand Two Speed
Brake System :
WABCO Valve
Kingpin :
JOST 2"(50mm)or3.5"(90mm)
Tyre :
12R22.5
Size :
12500*2500*1600mm
Loading Weight :
40ton
Function :
Transport Container
Description

Tri Axle Flat Flatbed Container Semi Truck Trailers Used Flatbed Trailer

Used Flatbed Semi Trailer Description:

Used flatbed semi trailers are mainly used for carrying containers and bulk cargo.Used shipping container

trailer is mainly used at harbor. Most logistic company and transporting company adopt used flatbed semi

trailer to carry the goods too.


Generally speaking, used container trailers is divided into used flatbed trailer and used skeleton trailer.

Used flatbed semi trailer is often called used shipping container trailer.The flatbed trailer is not only be used

for carry container ,but also carry bulk cargo. Usually, used 20ft container trailers and used 40ft container

trailers are more easily to be found on the market. If the length of used flatbed semi trailer is more than 40ft,

we suggest you choose brand new trailer. Because all the brand new trailer are customized.

USED FLATBED SEMI TRAILER SPECIFICATIONS

Trailer Model 3 Axle flatbed Container Semi Trailer
Function Carry 40ft or 2*20ft container or other stuff

Overall Dimension
(Lx W x H)(mm)

 12500mm*2500mm*1600mm
Tare Weight(KG) 6350kg
Loading Weight( KG) 40000kg
Total Weight(KG) 46350kg
Axle Brand 3*13TON Axle FUWA Brand
Wheelbase(mm) 7450+1310+1310
Suspension system Mechanical Leaf Spring Suspension
Leaf spring 90(W)mm*13(Thick)mm*10 Layer
The material of Main beam Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm.
Side beam Q235 16# channel steel
Platform plate 3mm Diamond plate
Container Twist Locker 12pcs container lock
Tire Type and quantity 12R22.5 12units
Rim 9.00-22.5
Traction Pin 2” or 3.5”
Spare Wheel Bracket 2 pieces
Tool Box 1 Standard
Landing Gear 28ton single action supporting legs
Brake system Dual Line braking system
Brake air chamber Six double chamber
Electrical system 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
