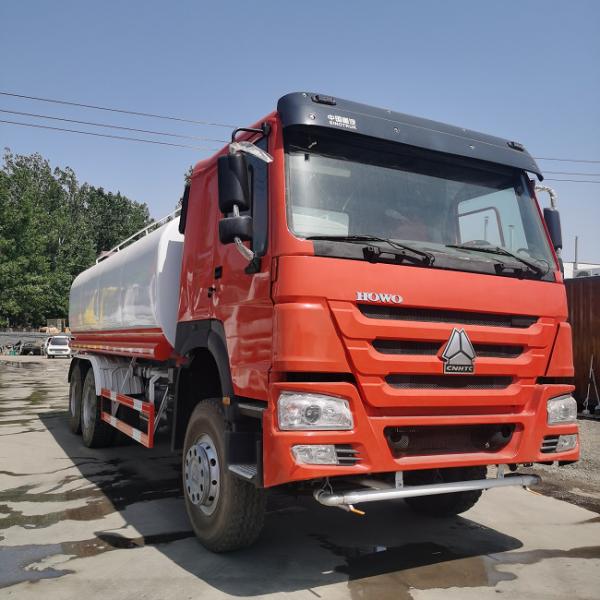

371HP Used Water Tanker Truck , Used 20000L Water Storage Truck
371HP Used Water Tanker Truck , Used 20000L Water Storage Truck
371HP Used Water Tanker Truck , Used 20000L Water Storage Truck
371HP Used Water Tanker Truck , Used 20000L Water Storage Truck
371HP Used Water Tanker Truck , Used 20000L Water Storage Truck
371HP Used Water Tanker Truck , Used 20000L Water Storage Truck
371HP Used Water Tanker Truck , Used 20000L Water Storage Truck
371HP Used Water Tanker Truck , Used 20000L Water Storage Truck
371HP Used Water Tanker Truck , Used 20000L Water Storage Truck
371HP Used Water Tanker Truck , Used 20000L Water Storage Truck
Specifications
Brand Name :
HOWO
Model Number :
ZZ1257N4347A1
Certification :
CCC, ISO, CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
$14000/unit-$18000/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30units per month
Delivery Time :
10-15 working days
Packaging Details :
Nude, Waxing before delivery
Product Name :
Howo Water Tank Truck
Chassis Brand :
Sinotruk Howo
Horse Power :
371hp,371hp
Tanker Capacity :
20000L
Tyre :
295/80R22.5
Cab :
One Sleeper with A/C
Description

Used Water Tank Truck Used Sinotruck 20000 Liter Water Storage Truck

Used Water Tanker Truck Features:

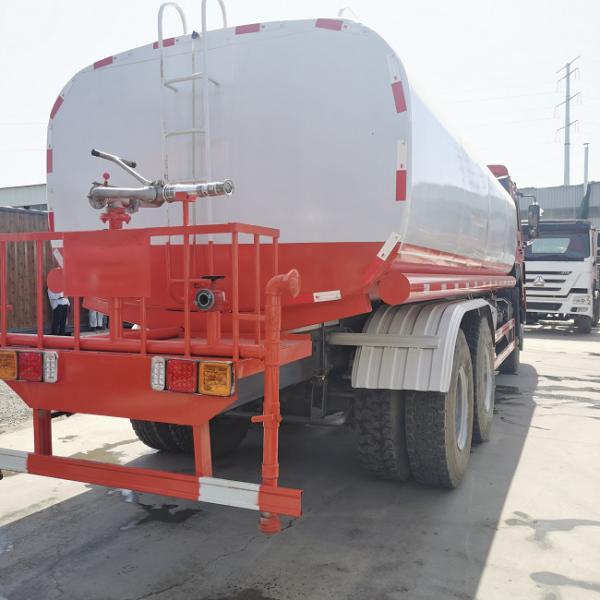

Howo water tanker body is a metal atmospheric pressure tank body. There are mainly two types, carbon steel

tank and stainless steel tank. And the carbon steel tank body is treated with anti-corrosion treatment.


The tank has two types, elliptical and square circles (rectangular arcs). The head is automatically rotated by a

CNC rotary machine, which has a beautiful appearance and high strength after molding. The barrel body is made

of longitudinal seam butt joints, fully automatic gas shielded welding, and the whole coil is formed after the board

is formed. The shape is beautiful and the straightness is good. The barrel and the head are fully welded and butt welded.


The inside of the tank is equipped with a wave-proof plate, and some of the tanks are provided with a longitudinal

wave-proof plate to reduce the impact of the liquid in the tank on the head and the barrel.


A sedimentation tank and a sewage outlet are arranged at the bottom of the tank body, and the sewage outlet

is opened irregularly according to the situation, and the accumulated dirt in the sedimentation tank is released.

The waterway system mainly consists of a water pump, a front water spray, a high-spray spray gun, a rear

sprinkler, a pressure drain, and a self-flowing drain device.

USED WATER TANKER TRUCK SPECIFICATIONS

Truck Model ZZ1257N4347A1
Truck Brand SINOTRUK –HOWO
Driving Style Left Hand Driving
Tank body volume 20M3
Approaching angle/Departure angle(°) 19/26
Overhang(front/rear) (mm) 1500/1739
Wheel base (mm) 4350+1350(mm)
Max speed(km/h) 75
Maximum gradeability (%) 40
Minimum ground clearance(mm) 314
Minimum turning circle (m) 20
Curb weight(kg) 12290
Loading Weight(kg) 25000
Fuel tanker capacity(L) 300
Fuel consumption(L/km) 28L/100 km
Clutch Single-plate dry clutch Φ430mm

Engine Model

(Steyr technology, made in China)

 Fuel type Diesel
Horse Power, max(kw/rpm) 336HP
Emission EURO II
Model WD engine 4 Stroke Direct Injection Diesel
Bore 126mm
Stroke 130mm
Compression ratio 29.8hp/l
Specific fuel consumption 195g/kwh
Transmission Model HW19710

Brake system

 Service brake Dual circuit compressed air brake
Parking brake

spring energy, compressed air operating on rear wheels
Auxiliary brake Engine exhaust brake

Steering system

 Model ZF8098 Hydraulic Steering with power assistance.
Front axle HF7, Steering with double T-cross section beam
Rear axle ST16, Pressed axle housing, central double reduction with differential locks between axles and wheels REAR AXLE RATIO: 5.73
Color Optional (White ,Red ,yellow )
Tyre

295/80R22.5 x 11pcs

(with one spare tyre)
Ground Clearance Ground Clearance of front spray nozzle: 470mm;

Electrical system

 Battery 2X12V/165Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V
Cab

HW76, single sleeper with air conditioner

all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
