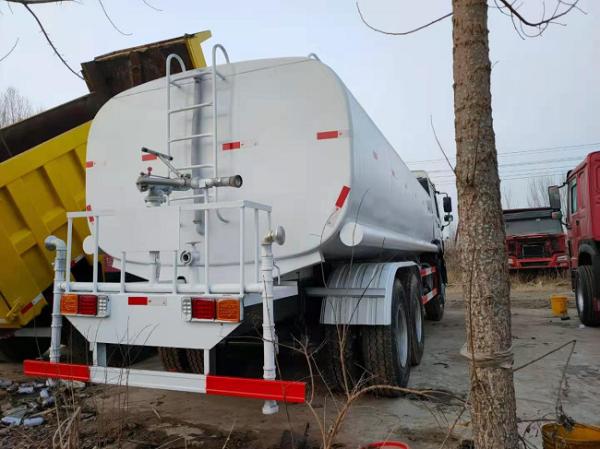

10 Wheels 6x4 336HP High Power Used Water Tank Lorry
10 Wheels 6x4 336HP High Power Used Water Tank Lorry
10 Wheels 6x4 336HP High Power Used Water Tank Lorry
10 Wheels 6x4 336HP High Power Used Water Tank Lorry
10 Wheels 6x4 336HP High Power Used Water Tank Lorry
10 Wheels 6x4 336HP High Power Used Water Tank Lorry
10 Wheels 6x4 336HP High Power Used Water Tank Lorry
10 Wheels 6x4 336HP High Power Used Water Tank Lorry
10 Wheels 6x4 336HP High Power Used Water Tank Lorry
10 Wheels 6x4 336HP High Power Used Water Tank Lorry
Specifications
Brand Name :
HOWO
Model Number :
ZZ1257N4347A1
Certification :
CCC, ISO, CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
$14000/unit-$18000/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30units per month
Delivery Time :
10-15 working days
Packaging Details :
Nude, Waxing before delivery
Type :
Used Water Tank Truck
Emission Standard :
Euro 2
Drive Type :
6x4
Transmission :
Manual
Wheel :
10 Wheels
Cab :
One Sleeper with A/C
Description

Sinotruk Howo Used 10wheels 6x4 336hp High Power Water Tank Truck

Used Water Tanker Truck Features:

20 Cubic Meter Sinotruk Howo used water tanker truck is made by adopting an automatic assembly line

including charging, jointed panel automatic welding, seal head spin forming, and other advanced tank production

technologies. In general, the tanker is made of high-quality carbon steel plate. If required, we can also use SUS

304 stainless steel. Howo 6x4 water tank truck has the following components: anti-corrosive tank, communicating

vessels, dedicated self priming spray pump, pipe network, spraying exit, working platform, chassis, etc.


Howo used water tanker truck adopts a high-quality water spraying pump, which is of high-power. Water can be

sprayed from the front, back and both sides.It is equipped with a suction pipe, fire fighting joint, and automatic

flow valve, etc. Rear working platform is fitted with spraying pipe and the water sprayed out can be of heavy

sprinkle, moderate sprinkle, drizzle, fog, among other options.

USED WATER TANKER TRUCK SPECIFICATIONS

Truck Model ZZ1257N4347A1
Truck Brand SINOTRUK –HOWO
Driving Style Left Hand Driving
Tank body volume 20M3
Approaching angle/Departure angle(°) 19/26
Overhang(front/rear) (mm) 1500/1739
Wheel base (mm) 4350+1350(mm)
Max speed(km/h) 75
Maximum gradeability (%) 40
Minimum ground clearance(mm) 314
Minimum turning circle (m) 20
Curb weight(kg) 12290
Loading Weight(kg) 25000
Fuel tanker capacity(L) 300
Fuel consumption(L/km) 28L/100 km
Clutch Single-plate dry clutch Φ430mm

Engine Model

(Steyr technology, made in China)

 Fuel type Diesel
Horse Power, max(kw/rpm) 336HP
Emission EURO II
Model WD engine 4 Stroke Direct Injection Diesel
Bore 126mm
Stroke 130mm
Compression ratio 29.8hp/l
Specific fuel consumption 195g/kwh
Transmission Model HW19710

Brake system

 Service brake Dual circuit compressed air brake
Parking brake

spring energy, compressed air operating on rear wheels
Auxiliary brake Engine exhaust brake

Steering system

 Model ZF8098 Hydraulic Steering with power assistance.
Front axle HF7, Steering with double T-cross section beam
Rear axle ST16, Pressed axle housing, central double reduction with differential locks between axles and wheels REAR AXLE RATIO: 5.73
Color Optional (White ,Red ,yellow )
Tyre

295/80R22.5 x 11pcs

(with one spare tyre)
Ground Clearance Ground Clearance of front spray nozzle: 470mm;

Electrical system

 Battery 2X12V/165Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V
Cab

HW76, single sleeper with air conditioner

all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
