Specifications
Brand Name :
HOWO
Model Number :
ZZ1257N3841W
Certification :
CCC, ISO, CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
$14000/unit-$18000/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30units per month
Delivery Time :
10-15 working days
Packaging Details :
Nude, Waxing before delivery
Product Name :
Used Concrete Mixer Truck
Warrranty :
1 Year
Horse Power :
336hp,371hp
Drive Type :
6x4
Dum Mixing Capacity :
8cbm 10cbm
Tyre :
12.00R20
Description

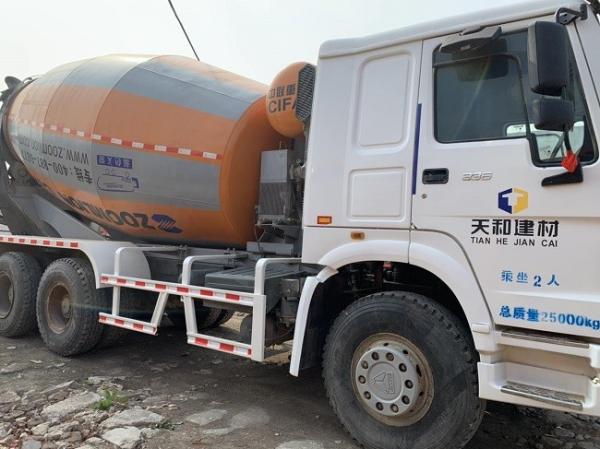

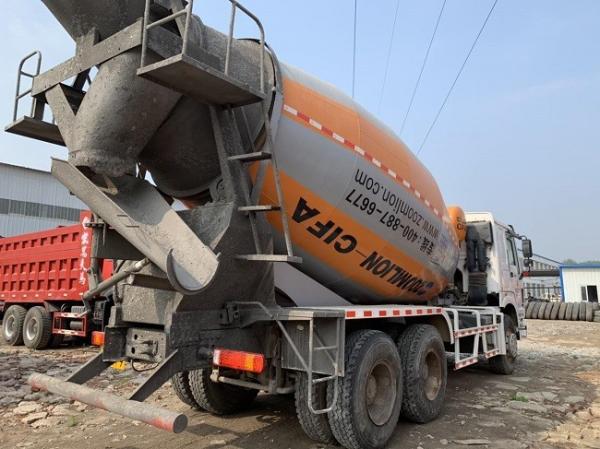

Hydraulic Pump 8cbm 10cbm Cement Mixer Truck Used Concrete Mixer Truck

Description of Used Concrete Mixer Truck:

The working environment of used concrete mixer truck can be described as "half sea water and half flame".

On the way of concrete transportation, its driving environment is roughly the same as that of other vehicles.

Once you enter the construction site, you fall into hell from the world. Don't think I'm alarmist. Even in the first

tier cities, several construction sites have reserved sufficient circulation sites for engineering vehicles, and how

many construction sites have hardened the pavement in the early stage of the project. For many years, I have

seen narrow, steep slopes and muddy fields. It is common for concrete mixers to snake at low speed, resist

slope erosion and sink into mud. Therefore, large torque output of engine has become an important demand

of mixer truck, which sinotruk howo used concrete mixer truck can meet the demand properly.

PRODUCT SPECIFICATIONS

Chassis model ZZ1257N3841W (Overall dimension: 8560x2496x3800mm)
Engine WD615.47, 371hp, Euro II, In-line, six cylinders, two valves, supercharging inter-cooling, rear supercharger Displacement is 9.726L. Diesel fuel type, Max. Torque is 1350/1300-1600Nm/rpm.
Cabin HW76, one sleeper, two seats with air-conditioner, safety belts with double locking mechanism, new face, exterior sun visor, equipped with high position metal bumper.
Clutch ∮430 diaphragm spring clutch, hydraulic control air power assisted.
Transmission HW19710, 10 F and 2 R, manual type. Max.torque: 1390N.m
Drive Axle HC16, double reduction (central reduction+hub reduction), speed ratio:standard 5.73, optional 4.8.
Front Axle HF9, 9ton, drum brake
Chassis Frame: U-profile parallel ladder frame with section of 300x80x8mm and reinforced sub-frame, all cold riveted cross member, Equipped with HW50 PTO
Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorber and stabilizer
Rear suspension: semi-elliptic leaf springs and bogie springs, spare wheel
Fuel tank: 300 L capacity, with locking fuel cap
Steering ZF8118, hydraulic steering with power assistance, LHD
Brake system Service brake: dual circuit pneumatic brake, Parking brake:energy storage spring cutoff brake.Optional ABS and automatic slack adjust.
Tyre 12.00R20 Radial plus one spare tyre (11 units)
Mixing Tank Effective tank volume is 10m3, speed of mixing barrel is 0-16r/min, mixing obliquity is 10°,capacity of water tank is 400L, Max. Dimension of hopper is 980mm
Other Specification With Italian brand Bonfiglioli reduction gears, America brand Eton oil pump and motor
