Heavy Duty Used Howo Dump Truck , Howo Ten Wheeler Dump Truck

Specifications

Brand Name :

HOWO

Model Number :

ZZ3257N3847C

Certification :

CCC, ISO, CE

Place of Origin :

CHINA

MOQ :

1 unit

Price :

$14000/unit-$16500/unit

Payment Terms :

T/T, L/C, Western Union

Supply Ability :

30units per Month

Delivery Time :

10-15 working days

Packaging Details :

Nude, Waxing before delivery

Product Name :

Used Howo Dump Truck

Drive Type :

6x4

Horse Power :

371hp,375hp,420hp

Transmission :

Manual

Emission :

Euro 2

Wheel :

10 Wheeler

Description

Dump Trucks Used Heavy Duty 10 Wheeler Dump Truck Used Tipper

Features of Used Howo Dump Truck:

The production date of used howo dump trucks is 2014 -2018；

Europe 2 to Europe 3 can choose；

Mileage of used dump truck is from 30000 to 70000 kilometers；

The service life is about 8 years, which depends on the road condition and the maintenance of the truck.

According to customer's preference, we have two options on truck refurbishment.

Plan A:

The cab spray paint refurbishment, the interior decoration is all new;

Used hydraulic roof; All new truck body;

All new tires; Chassi refurbishment;

Engine maintenance, replacement of oil;

Replace the whole truck gear oil;

Electric circuit , air circuit and other functions are normal.

Plan B:

The cab is painted and renovated, and the interior is clean;

Used hydraulic roof; all new truck body;

90% new tires; Refurbishment of the chassis;

The performance of the engine is good;

Electrical circuit, gas circuit and other functions are normal.

SPECIFICATIONS OF USED TIPPER

Truck Model			ZZ3257N3847C
Driving Style			Left Hand Driving
Dimension(Lx W x H)(unloaded)(mm)			8265x2496x3490
Cargo body size (LWH, mm) (mm)			5400x2300x1500mm 18.63m3
Cargo thickness(mm)			Bottom:8mm, Side:6mm
Lift type of Carriage			Middle lifting system
Approaching angle/Departure angle(°)			20/26
Overhang(front/rear) (mm)			1540/1750
Wheel base (mm)			3625+1350
Max speed(km/h)			78
Curb weight(kg)			12270
Loading Weight(kg)			30,000
Fuel tanker capacity(L)			300
Clutch			Single-plate dry clutch Φ430mm
Engine Model	Fuel type		Diesel
	Horse Power, max(kw/rpm)		371HP
	Emission		EURO II

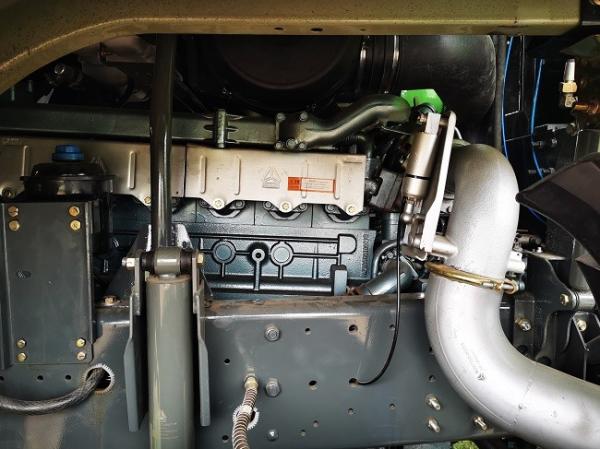

	Model		WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling , electric injection
Transmission		Model	HW19710, 10 forwards and 2 reverse
Brake system		Service brake	Dual circuit compressed air brake
		Parking brake	spring energy, compressed air operating on rear wheels
		Auxiliary brake	Engine exhaust brake
Steering system		Model	ZF8118 hydraulic steering with power assistance
Front axle		HF9 , Steering with double T-cross section beam
Rear axle		HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
Color		Optional (White ,Red ,yellow )
Tyre		12.00R20 radial tires, 10+1pcs
Electrical system		Battery		2X12V/165Ah
		Alternator		28V-1500kw
		Starter		7.5Kw/24V
Cab		HOWO76 Cab , single sleeper with air conditioner
