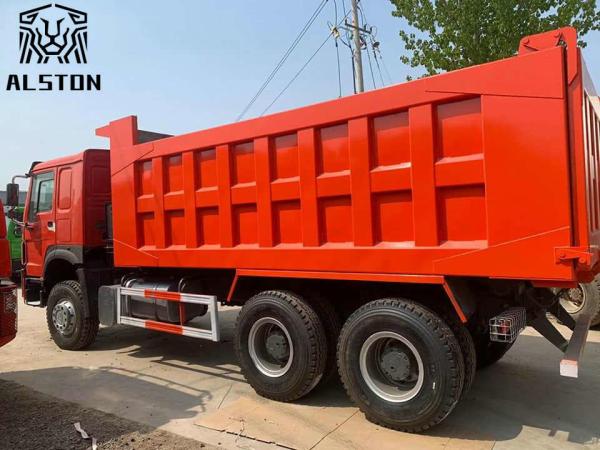

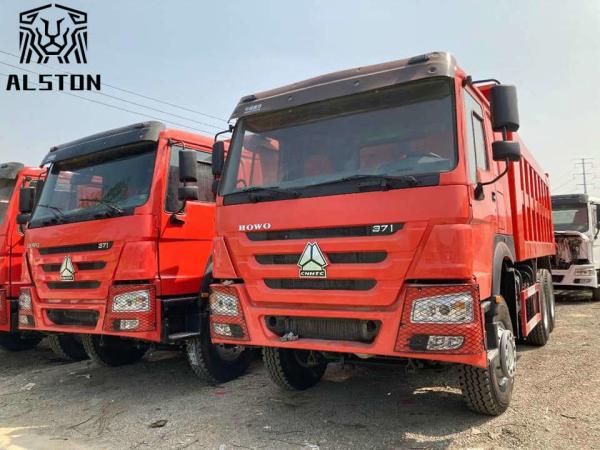

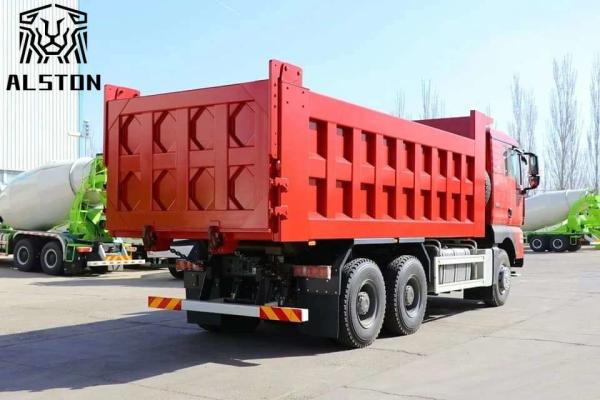

6x4 Used Tipper Trucks 19.32M3 Used Howo Dump Truck For Coal Mining

Specifications

Brand Name :

HOWO

Model Number :

ZZ3257N3847C

Certification :

CCC, ISO, CE

Place of Origin :

CHINA

MOQ :

1 unit

Price :

$14000/unit-$16500/unit

Payment Terms :

T/T, L/C, Western Union

Supply Ability :

30units per Month

Delivery Time :

10-15 working days

Packaging Details :

Nude, Waxing before delivery

Product Name :

Used Howo Truck

Dumper Box :

19.32cbm

Alternator :

28V-1500kw

Tyres :

12.00R20

Battery :

2X12V/165Ah

Cab :

One Sleeper with A/C

Description

China Truck Supplier 6x4 Used Tipper Trucks 19.32M3 Used Howo Dump Truck

Characteristics

Howo dump truck mainly used for general construction business, coal mining, stone and sand transportation. Now used sinotruck howo tipper truck is very popular in Africa. With low purchase and maintenance cost, Howo used tipper could load 25-30 tons with 18m3 to 20cbm cargo box.

Howo dump truck has four main parts: the engine, the chassis, the cab and the upper body.

The carriage is mainly to roll backwards. There is a cab safety shield in the front section of the truck. The hydraulic tilting mechanism of the heavy duty tipper truck is composed of a hydraulic oil tank, a hydraulic pump, a distribution valve, and a lifting hydraulic cylinder, and the piston rod is pushed to tilt the cargo box. By controlling the piston rod movement, the dumper truck can be stopped at any position that needs to load or unload goods. The cabin is reset using its own gravity and hydraulic control.

Advantages

Howo used tipper truck can automatically dump stuff in an specific angle, which greatly reduces the discharge time and labor, shortens the transportation cycle, improves production efficiency and reduces transportation costs.

USED HOWO TRUCKS SPECIFICATIONS

Truck Model			ZZ3257N3847C
Driving Style			Left Hand Driving
Dimension(Lx W x H)(unloaded)(mm)			8265x2496x3490
Cargo body size (LWH, mm) (mm)			5400x2300x1500mm 18.63m3
Cargo thickness(mm)			Bottom:8mm, Side:6mm
Lift type of Carriage			Middle lifting system
Approaching angle/Departure angle(°)			20/26
Overhang(front/rear) (mm)			1540/1750
Wheel base (mm)			3625+1350
Max speed(km/h)			78
Curb weight(kg)			12270
Loading Weight(kg)			30,000
Fuel tanker capacity(L)			300
Clutch			Single-plate dry clutch Φ430mm
Engine Model	Fuel type		Diesel
	Horse Power, max(kw/rpm)		371HP
	Emission		EURO II
	Model		WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling , electric injection
Transmission		Model	HW19710, 10 forwards and 2 reverse
Brake system		Service brake	Dual circuit compressed air brake
		Parking brake	spring energy, compressed air operating on rear wheels
		Auxiliary brake	Engine exhaust brake
Steering system		Model	ZF8118 hydraulic steering with power assistance
Front axle		HF9 , Steering with double T-cross section beam
Rear axle		HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
Color		Optional (White ,Red ,yellow )
Tyre		12.00R20 radial tires, 10+1pcs
Electrical system		Battery		2X12V/165Ah
		Alternator		28V-1500kw
		Starter		7.5Kw/24V
Cab		HOWO76 Cab , single sleeper with air conditioner

Shipping

Our Used SINOTRUCK tipper trucks are ready for shipping. We will spray wax and cover the rain clothes to avoid rusty issues.
