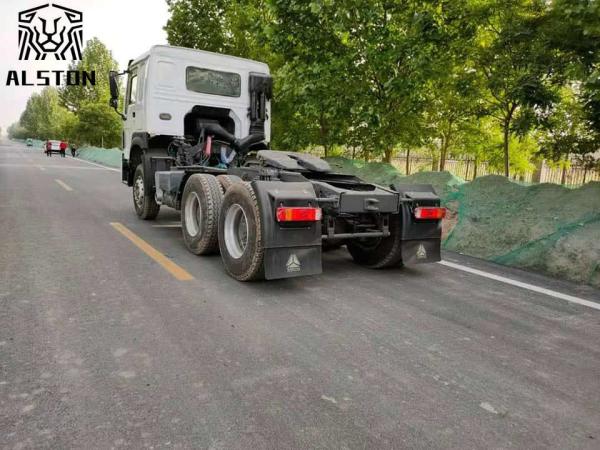

Howo 6x4 Tractor Truck , Sino Truck Howo Used Trailer Truck Head

Specifications

Brand Name :

HOWO

Model Number :

ZZ4257S3241W

Certification :

CCC, ISO, CE

Place of Origin :

CHINA

MOQ :

1 unit

Price :

$8000/unit-$12000/unit

Payment Terms :

T/T, L/C, Western Union

Supply Ability :

30 units per Month

Delivery Time :

10-15 work days

Packaging Details :

Nude, Waxing before delivery, shipped by bulk ship or Ro-Ro ship

Product Name :

Used Howo Trucks

Front Axle :

HF9, Loading capacity: 9000kg

Rear Axle :

HC16, 16ton loading capacity, 2units

Horse Power :

371hp,375hp,420hp

Emission :

Euro 2/3/4

Drive Type :

6x4, 10 wheel

Description

Howo 6x4 Tractor Truck, Sino truck Howo Used Trailer Truck Head

I. Applications:

It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and mining area.

II. Advantages

1). Long life of B10: reach the most advanced world level of heavy duty truck, 1.5 million km.

2). Long oil change interval: for Euro 2 oil, the first oil change mileage(oil change interval) for the road vehicles since left factory shall be up to 100,000 km, greatly reducing the cost.

3). Cheap/competitive price, high quality, you will get more than you paid.

III.Security--Braking System

Braking system have four brake devices: Service brake (Foot brake), Auxiliary brake (Engine exhaust brake, exhaust valve brake or both installed), emergency brake and parking brake (Hand brake) and trailer brake (for tractor truck).

1. Service Brake

2. Auxiliary Brake

Notice: When the gearbox is in neutral gear, the auxiliary brake doesn't work. When the gearbox is in the lower gear, the efficiency of exhaust brake is higher.

3. EVB(exhaust valve brake)

Notice:

A).EVB is a kind of vehicle retarder device instead of parking device. Service brake is only way to stop the vehicle completely, which is braking.

B).Make sure the engine reaches its sufficient operating temperature before starting the exhaust brake.

C).As long as the exhaust brake is adopted, it is forbidden to shift without releasing the clutch.

When the vehicle driving in the wet and slipped way without trailer or the trailer empty, it is not allowed to use EVB device, specially for the vehicle with single drive axle.

4. Emergency and Parking Brake

Notice: Hand brake must be pulled when the vehicle stops.

Before starting the engine, put handle of hand brake valve at the brake position; if not, the pressure of brake system will be raised and all the parking brake will be removed.

5. Trailer Brake

Trailer hand brake, works on the trailer or semi-trailer, is separated from the brake system of tractor truck.

When loosing the hand brake valve handle of trailer, the handle rebounds back to the initial position.

IV. USED HOWO TRUCKS SPECIFICATIONS

Truck Model		ZZ4257S3241W (Left Hand Drive/Right Hand Drive)
Dimension(Lx W xH)(mm)		6800x2496x3668
Approaching angle/Departure angle(°)		16/70
Overhang(front/rear) (mm)		1500/700,725
Wheel base (mm)		3200+1400,3225+1350
Max speed(km/h)		102
Curb weight(kg)		8800
Loading Weight(kg)		60000
Engine (Steyr technology, made in China)	Model	WD615.47,water-cooled,four
		strokes,6 cylinders in line with water cooling,turbo-charged and intercooling, directly injection
	Fuel type	Diesel
	Horse Power,max	371HP/375HP/420HP
	Emission	EURO2/3
Fuel tanker capacity(L)		400
Transmission	Model	HW19710
Brake system	Service brake	Dual circuit compressed air brake

	Parking brake	Spring energy, compressed air
		operating on rear wheels
Steering system	Model	ZF8118
Front axle		HF9 ( Steering with double T-cross section beam
		Loading capacity: 9000kg)
Rear axle		HC16, 16ton loading capacity, 2units
Color		Upon Request
Tyre		12R22.5 11pcs
King Pin		90#
Electrical system		Battery	2X12V/165Ah
		Alternator	28V-1500kw
		Starter	7.5Kw/24V
Cab	HOWO76 cab, (one sleeping, with air-condition)

V. Shipping Method
Flat Rack Container
