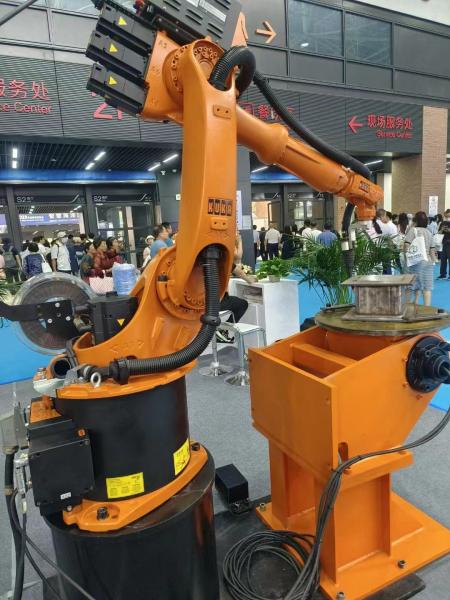

KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
KUKA KR16 L6 Robot Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot
Specifications
Brand Name :
kuka
Place of Origin :
Germany
MOQ :
1 PC
Price :
8000USD-8500USD
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50 PCS
Delivery Time :
7 days
Packaging Details :
wooden packing
Brand :
Used Robotic Arm
Control :
ED05
Model :
KUKA KR16L6
Payload :
6 KG
Power Supply :
380V
Protection Level :
IP65
Reach :
1911 mm
Repeatability :
±0.1 mm
Software :
KUKA
Speed :
2.5 m/s
Warranty :
1 year
Weight :
235 KG
Description

KUKA KR16 L6 Robot ,Used Industrial Robot Arm ,Welding Robot ,Loading Robot ,Handling Robot

Due to its versatility and flexibility, the KR 16 L6 is at home in most of the manufacturing industries. Short cycle times and high accuracy.
Mounting positions: Floor, ceiling, wall.

This robot is equipped with the KRC2 Ed05 controller on Win XP .The KR 16 L6 robot controller makes programming easier with its Microsoft Windows interface. It is expandable, can be integrated into networks via a bus, and contains ready-made software packages.

KR C2 Ed05 features:

* Open, network-capable PC technology
* 2 free slots for external axes
* DeviceNet and Ethernet slots for common bus systems (e.g. INTERBUS, PROFIBUS, DeviceNet) provided as standard
* Motion profile function for optimal interaction between the individual robot motors and their velocity
* Floppy disk and CD-ROM drives for data backup
* Facilities such as remote diagnosis via the Internet
* Simple operation and programming via KUKA Control Panel (KCP) with Windows user interface
* Compact control cabinet
* Ergonomic KUKA Control Panel (KCP)

Robot Info

  • Axes: 6
  • Payload: 16 kg
  • H-Reach: 1610 mm
  • Repeatability: ±0.1 mm
  • Robot Mass: 235 kg
  • Mounting: floor, ceiling, wall

Robot Motion Speed:

  • Axis 1 156 °/s (2.72 rad/s)
  • Axis 2 156 °/s (2.72 rad/s)
  • Axis 3 156 °/s (2.72 rad/s)
  • Axis 4 330 °/s (5.76 rad/s)
  • Axis 5 330 °/s (5.76 rad/s)
  • Axis 6 615 °/s (10.73 rad/s)

Robot Aplications:

  • Machining
  • Machine tending
  • Polishing, grinding and deburring
  • Coating and bonding
  • Handling
  • Measuring and testing
  • Assembly
  • Palletizing and order picking
  • Cutting
  • Welding
