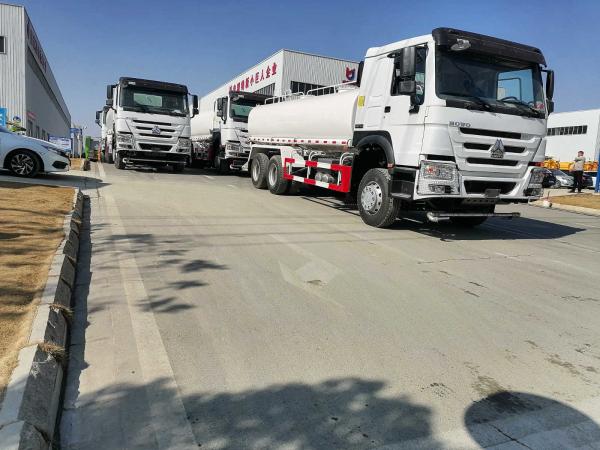

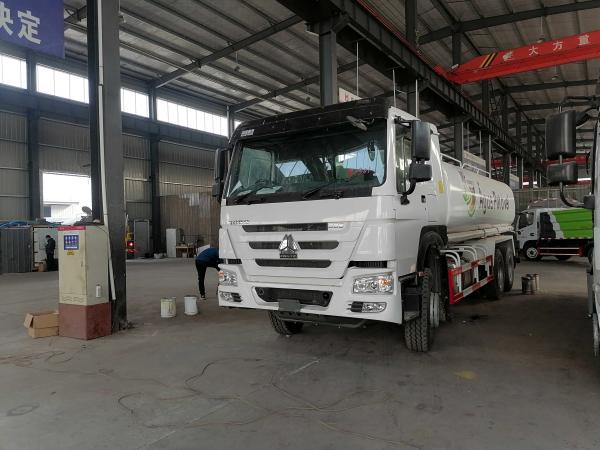

Used Tri Axle Trucks Howo Water Tanker Truck 20m³ 6×4 Drive Mode
Used Tri Axle Trucks Howo Water Tanker Truck 20m³ 6×4 Drive Mode
Used Tri Axle Trucks Howo Water Tanker Truck 20m³ 6×4 Drive Mode
Used Tri Axle Trucks Howo Water Tanker Truck 20m³ 6×4 Drive Mode
Used Tri Axle Trucks Howo Water Tanker Truck 20m³ 6×4 Drive Mode
Used Tri Axle Trucks Howo Water Tanker Truck 20m³ 6×4 Drive Mode
Specifications
Brand Name :
HOWO
Model Number :
ZZ1257
Certification :
ISO,CCC,CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50 units per month
Delivery Time :
30 working days after receipt payment
Packaging Details :
Nude packing
Key Word :
Used Tri Axle Trucks
Curb Weight :
12265kg
Seats :
2
Max speed :
90km/h
Emission Standards :
Euro II
Description

Used Tri Axle Trucks Howo Water Tanker Truck 20m³ 6×4 Drive Mode

Description:

Howo Water Tanker Truck can provide left hand drive and right hand drive, 6×4 drive mode, 20m³ tank capacity, meet the needs of multiple scenarios. Double seat flat top cab, with air conditioner, driving environment is comfortable, no fear of severe cold and heat.

Service we can provide:
Used Tri Axle Trucks , yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.Used Tri Axle Trucks
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Used Tri Axle Trucks .Used Tri Axle Trucks

Vehicle parameters
Overall dimensions 9895×2496×2958mm Curb weight 12265kg
Tank dimensions 6000×2400×1600mm Tank volume 20000L
Chassis parameters
Chassis model ZZ1257 Chassis brand HOWO
Overall dimensions 10415X2496X3300mm Wheel base 4625+1350mm
Front/rear wheel track 2022, 1830/1830mm Front/rear suspension 1540, 2875mm
Approach/departure angle 15/12° Maximum speed 90km/h
Chassis Manufacturer China National Heavy Duty Truck Group Co.,Ltd

Cab

Configuration

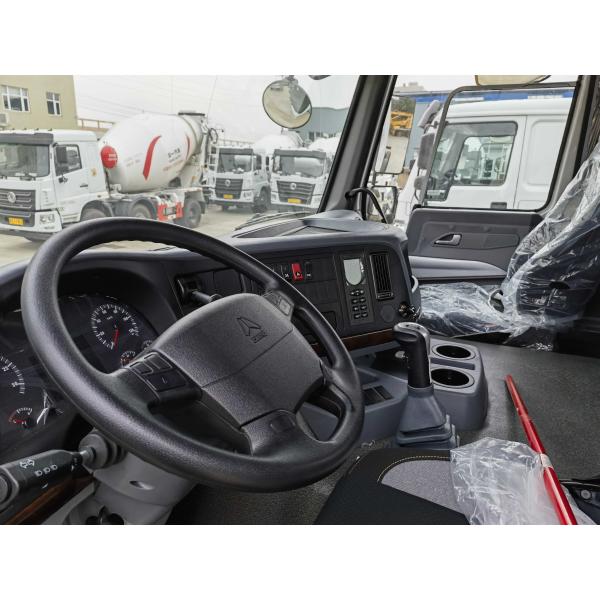

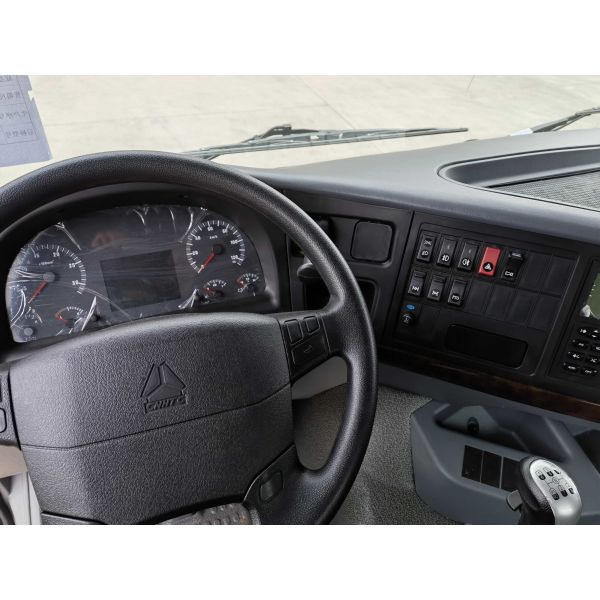

 A row and a half deluxe cab(with sleeping berth), allowable 3 passengers
Color White, other color is optional

Engine

 Model WP10.340E22
Emission Euro 2

Type

 6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine
Rated power 340hp, rated power speed 2200rpm
Displacement 9726ml
Max.torque 1250N.m
Bore x stroke 126x130mm
Manufacturer Weichai Engine Power Co.,Ltd

Tire

 Size 12.00R20
Number 10+1 nos
Clutch φ430 diaphragm clutch
Fuel tank 400L iron oil tank
Front axle VGD95
Rear axle MCX16ZG,16 tons
Drive form 6X4
Suspension Multi leaf springs
Rated voltage 24V, DC

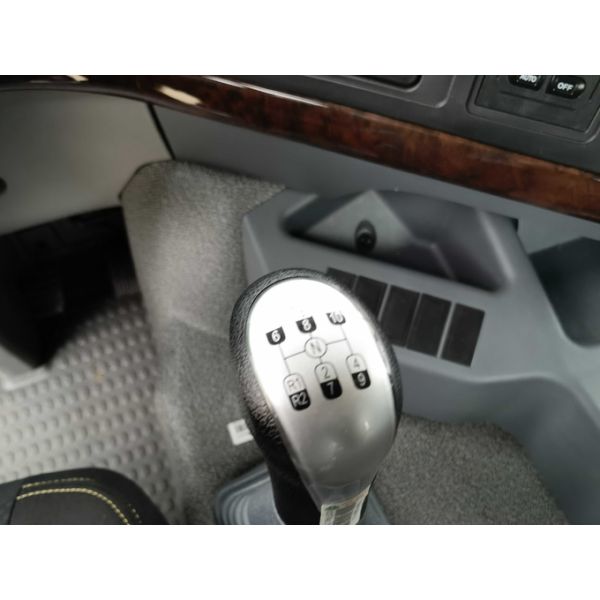

Transmissions gearbox HW19710, 10 speed forward 2 reverse.
Steering device Power assisted steering
Steering wheel Right hand drive
Water tank structure parameters
Tank dimensions 6000×2400×1600mm Tank volume 20000L
Tank material Carbon steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional
Standard configuration Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.
Selective configuration Stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc.

Used Tri Axle Trucks Howo Water Tanker Truck 20m³ 6×4 Drive ModeUsed Tri Axle Trucks Howo Water Tanker Truck 20m³ 6×4 Drive Mode

Used Tri Axle Trucks Howo Water Tanker Truck 20m³ 6×4 Drive Mode
