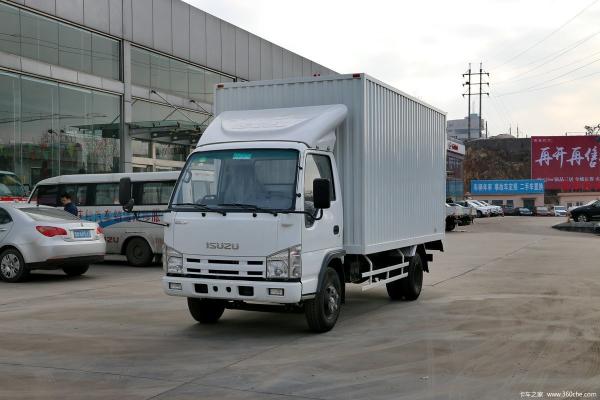

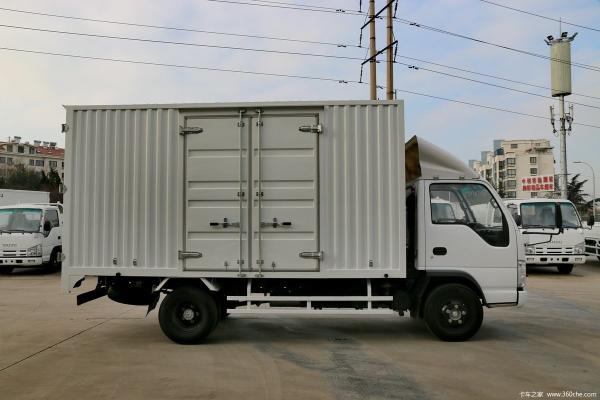

15 Ton Cargo Truck Euro 4 Isuzu 4×2 Van Lorry Truck 6 Tires Multi Leaf Springs 35 Cubic Box
15 Ton Cargo Truck Euro 4 Isuzu 4×2 Van Lorry Truck 6 Tires Multi Leaf Springs 35 Cubic Box
15 Ton Cargo Truck Euro 4 Isuzu 4×2 Van Lorry Truck 6 Tires Multi Leaf Springs 35 Cubic Box
15 Ton Cargo Truck Euro 4 Isuzu 4×2 Van Lorry Truck 6 Tires Multi Leaf Springs 35 Cubic Box
15 Ton Cargo Truck Euro 4 Isuzu 4×2 Van Lorry Truck 6 Tires Multi Leaf Springs 35 Cubic Box
15 Ton Cargo Truck Euro 4 Isuzu 4×2 Van Lorry Truck 6 Tires Multi Leaf Springs 35 Cubic Box
Specifications
Brand Name :
Isuzu
Model Number :
QL1100
Certification :
ISO/FCC/SGS
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30 per month
Delivery Time :
30-40 working days after receipt balance payments
Packaging Details :
Nude Packing
Key Words :
15 Ton Cargo Truck
Seats :
2
Curb Weight :
4560kg
Engine :
4HK1-TCG40
Emission Standard :
EURO 4
Description

Single-Row Cargo Truck Isuzu 10 Tons 4×2 Lorry Truck 5.5 Meters Long Box Euro 4 Flat Cab

Description:

With sufficient power and good quality, it is your good transportation partner. Optional air deflector, height 3910 with air deflector, height 3570 without air deflector, optional color registration and word mark. Correspondence between curb weight/maximum allowable weight of semi-trailer saddle/total weight of quasi-trailer: 8850/16020/40000,9730/15140/39140. 15 Ton Cargo Truck

Service we can provide:
15 Ton Cargo Truck,yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.15 Ton Cargo Truck
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.15 Ton Cargo Truck

Overall dimensions 8155X2396X3530mm Curb weight 4560kg
Van dimensions 6100X2400X2400mm Loading capacity 15000kg
Chassis parameters
Chassis model QL1100 Chassis brand ISUZU
Overall dimensions 7930x2170x2330mm Wheel base 4175mm
Front/rear wheel track 1680/1650mm Front/rear suspension 1110/2345mm
Approach/departure angle 21/11° Maximum speed 110km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd.
Cab Configuration 700P,single row cab,allowable 3 passengers,air conditioner, USB radio interface,cab can be flipped.
Color White,other color is optional
Engine Model 4HK1-TCG40
Emission Euro 4
Type 4 cylinders, 4 valve, 4-stroke, in-line,common rail, precision electronic control, multistage injection, optimal combustion, exhaust gas recirculation, diesel engine.
Rated power 190hp
Displacement 5193ml
Manufacturer Isuzu (ChongQing) Engine Co., Ltd.
Tire Size 8.25-20-14PR nylon tire
Number 6+1 nos
Frame 216x70(6+3)mm
Front axle 4.0tons
Rear axle 7.0 tons
Drive form 4×2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Isuzu MLD six speed transmission,6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Tire:825R16,825-20,825R20,235/75R17.5
If there is a slight change in the chassis parameters above,please take the actual product as the standard

15 Ton Cargo Truck Euro 4 Isuzu 4×2 Van Lorry Truck 6 Tires Multi Leaf Springs 35 Cubic Box

15 Ton Cargo Truck Euro 4 Isuzu 4×2 Van Lorry Truck 6 Tires Multi Leaf Springs 35 Cubic Box

15 Ton Cargo Truck Euro 4 Isuzu 4×2 Van Lorry Truck 6 Tires Multi Leaf Springs 35 Cubic Box
