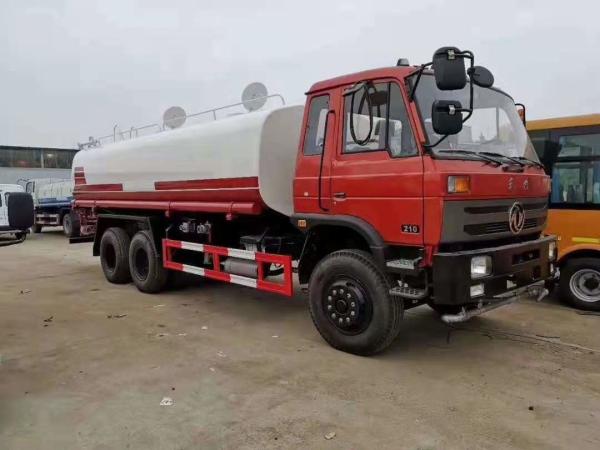

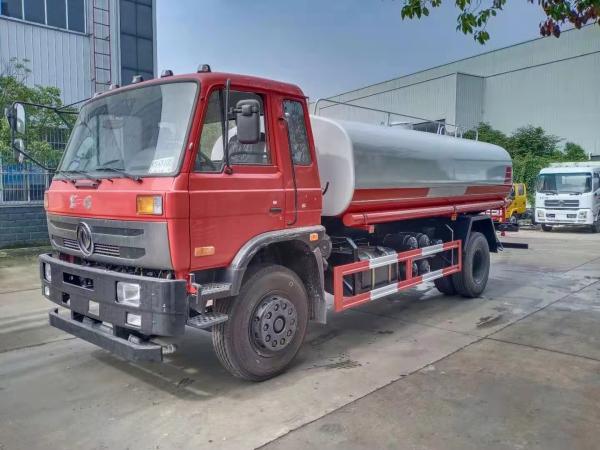

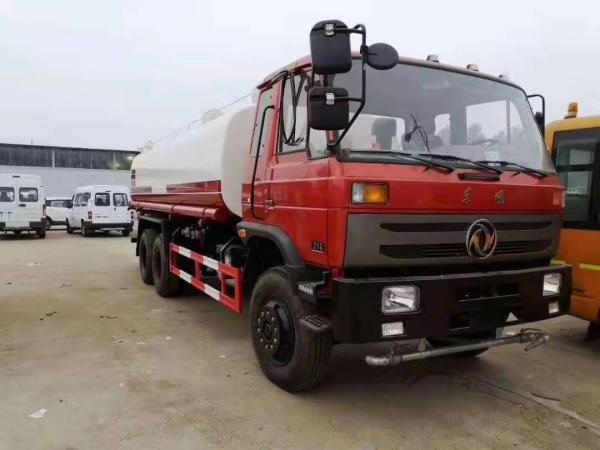

20000L Water Tanker Truck With 210HP Diesel Engine Dongfeng 4x2 6x4 Sprinkler
20000L Water Tanker Truck With 210HP Diesel Engine Dongfeng 4x2 6x4 Sprinkler
20000L Water Tanker Truck With 210HP Diesel Engine Dongfeng 4x2 6x4 Sprinkler
20000L Water Tanker Truck With 210HP Diesel Engine Dongfeng 4x2 6x4 Sprinkler
20000L Water Tanker Truck With 210HP Diesel Engine Dongfeng 4x2 6x4 Sprinkler
20000L Water Tanker Truck With 210HP Diesel Engine Dongfeng 4x2 6x4 Sprinkler
Specifications
Brand Name :
Dongfeng
Model Number :
20000L
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 unit
Payment Terms :
T/T, Western Union, L/C, MoneyGram
Supply Ability :
50Unit Per Month
Delivery Time :
20-30 Days
Packaging Details :
Container
Name :
Water Tank Truck
Size :
5.48x2x2.45m
Model :
4x2 6x4
Volume :
5000-20000L
Brand :
Dongfeng
Power :
210HP
Drive mode :
RHD LHD
Description

20000L Water Tanker Truck With 210 HP Diesel Engine Dongfeng 4x2 6x4 Sprinkler Price

Product Name
Water tank truck
Driving Type
Left hand drive ( RHD is optional)
Weights
GVW(kg)
6000, 15000, 25000, 31000
Rated payload weight(kg)
3000L-30000L
3CBM-30CBM
3 tons to 30 tons
Curb weight(kg)
9005
Dimensions
Wheelbase(mm)
4325+1350
3300, 3800, 4500, 5100mm is optional
Overall Dimension(mm)
9800×2495×3130
Box dimension
3-30 CBM
3000L -30000L
Max speed(km/h)
98
Engine
Engine model
WP10.290
(120hp, 190hp, 266hp, 340hp, 380hp, 420hpHP)
Engine type
4 stroke water-cooled,water-cooling.
No. of cylinders
straight-6 cylinders
Displacement(L)/Power(km)
6.494/162
Max. torque (kw)
800N.m
Drive Line
Transmission
7DS100,7 forwards,1 reverse gear,manual operation
Steering
With power steering
Brake system
Air brake
Cab
Air container
Have
Standard configuration
L cab,sound, and so on
Axle
Front axle
5 tons
Rear axle
AK153 tons
Tire specification
Tire specification
10.00R20 standard tire,10 tires+1 spare tire
Specification fuctionof water truck
Tanker shape
Ellipse water tanker
Tanker material
Q235,carbon steel
Introduction
1. Suction≥7m Sprinkler width≥14m Range≥28m
2. with front spout, back spill and side spout function
3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be
adjustable: heavy rain, moderate rain, drizzling rain or haze.)
4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming
function.
Sprinkling area(m)
»14m
Vertical suction range (m)
»7m
Watering pressure
250-450Mpa
Pump style
Self-priming centrifugal pump
Manhole
Manway access hole on top of tank;1 units DN500mm manhole
Front spray function
Front spray bar with fan sprayer on both sides, spray range: »28m
Manwalk way
With skid resistance manwalk way on top of tank
Horse reels
Two 75 ft hose reels at each side of the truck
Water pump
Water pump model: CLW80QZF-60/90N
Water pump flow rate(L/m): 60m3/h
Head of delivery(m): 90m
Self-priming function(min/4m):1.5
Efficiency(%):95%
