Slim And Light Portable Color Doppler Ultrasound Machine
Portable Most Economical Ultrasound Scanner Color Doppler Two Probe Transducers Doppler Ultrasound Machine

we can provide you below services and supports :

1.All life technical support

2.MOQ :only one set

3.Gurantee regulations

a .Main machine is guaranteed for 18 months and probe for 12 months .

b.the user can choose to return the product within 7 working days and replace the product within 15 working days in the case of non-artificial damage,

such as unsatisfactory use, unsatisfactory appearance, failure in use, or replacement of the model.

4.Payment terms T/T

5.we have CE & ISO certificated.

we are professional manufacturer in China,focusing on affordable and reliable ultrasonic diagnostic devices,both b/w and color doppler products for human & Vet.

For our B/W ultrasound system,most our end users are small & middle healthcare centres,clinics,community ,family planning and general hospitals in developing countries.

For color doppler systems,all our clients are happy to have the system which is competent,stable and reliable performed but cost only 1/3 of luxurious brands

Standard features

Physical specification

Dimension: 308mm(L)×310mm(W)×66mm(H)

Net Weight:4 Kg

Monitor:12inch LED

Resolution: 1024*768

Probe ports: 2-probe active ports

Harddisk:120G SSD

Imaging Modes

B,B&M,2B,4B, THI, PW, PDI ,Color

Imaging parameters

Imaging processing:Persistence, Gamma, chrome, gray map, L/R, U/D

Gary scale: 256

Dynamic range: 80-280dB

Gain control:total gain,8–slice TGC

Scanning depth:400mm max

Acoustic power:3 levels adjustable,real-time display MI/TI

Zoom:10*magnify

Cine-loop:200-2000 frames max,auto/manually play back

Measurement

General measurement:Depth, Distance, Trace Length, Ratio (D),

Area: Ellipse, Trace

Volume: 3-Distance, Ellipse, EDist

M mode: Distance, time, slope, Heart Rate

Clinical measurement package: Abdomen, OB, Gynecology, Cardiac, Urology, Small Parts

Body mark

More than 64 body marks for versatile application

With body position markers

Language supported

Chinese, English, Spanish, Russian, French, Portuguese, Germany

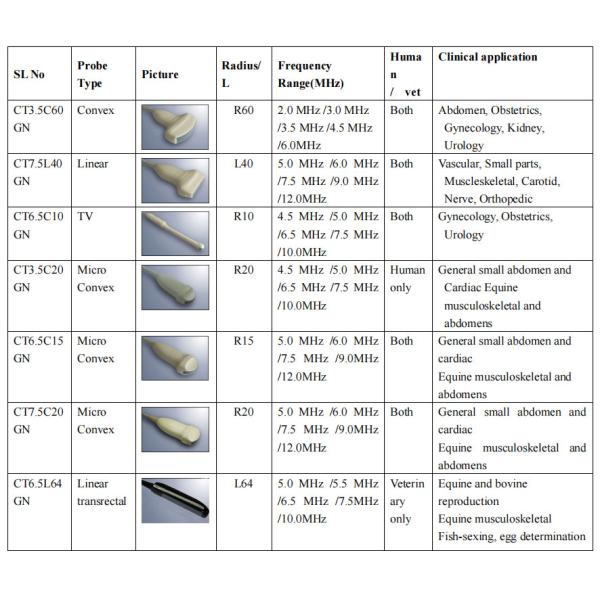

Transducer types:

Standard configuration features

Peripheral ports: VGA, 2 USB ports, HDMI port, DICOM port, LINE OUT port

Electrical Power supply: 100-240V~50/60Hz 100VA

Li-lion battery :3.2Ah

Video & PC printer (Optional)

E20 Laptop Color Doppler Ultrasonic Diagnostic System

	Laptop thin and light design;
	12.1〞LCD Displayer;
	Windows 7 operation system;
	Standard key board and backlight key;
	3200mAh recharge lithium battery.
Main Parameter	Display modes: B, B/B,4B,B+M,CFM,B+CFM,PDI,B+PDI,PW;
	Gray scale: 256 levels,
	5 levels image optimization;
	THI imaging technology;
	Rich image processing technology, for instance frames average, view angle, edge enhance, Gamma ,etc
	CN,EN,RUS,POR,ESP,FR,DE 7 kinds languages;
	Display penetration depth 1~400mm;
	Dynamic range: 80~280dB adjustable;
	Application mode OB,GYN, Small organ, Urology, Pediatric, Cardiac etc;
	Preset the parameter depend on scanning organ;
	IMT automatic measurement and display results;
	15 kinds of pseudo color;
	Support guide line of biopsy puncture;
	Built-in 120G soild state drive ,make the storage safer and more reliable;
	Support frequency conversion range: 2MHz~12MHz (depend on probe type);
	Built-in editable report page ;
	Gain control: 8 segments TGC and overall gain can be adjusted respectively;
	Focus position: dynamic electron focusing.
Interface ports	2 activated probe connector
	Interface Port: HDMI, VGA, DICOM, USB, Line Out.

We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.

CE,ISO,Free sales certificate,EC declaration of conformity,MSDS,Registeration certificate for medical device,Manufacturing license,qualified industrial registerations,CO,CCPIT & ect .
